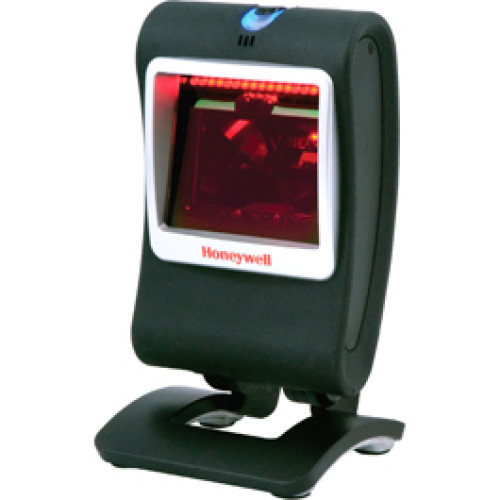

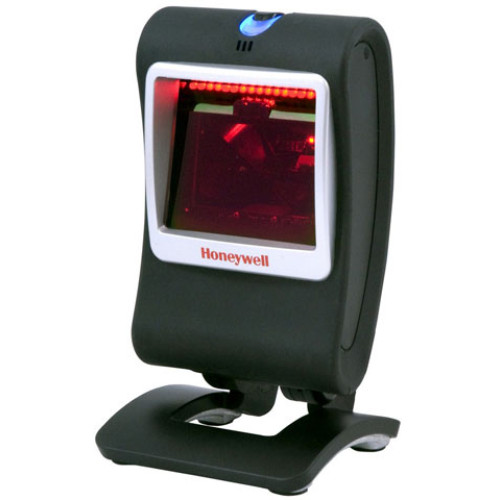

MS7580-124-00 - Honeywell MS 7580 Genesis Bar code Scanner

Genesis meets the market's need for a barcode reader that keeps pace with the growing prevalence of PDF, Data Matrix and QR barcodes, including those displayed on a mobile phone screen for emerging applications like digital boarding passes, event tickets or mobile coupons. Honeywell drew upon its years of expertise in imaging technology to execute a design capable of satisfying a wide range of applications in a variety of industries.

Questions?
1-888-875-7170
We respond to every email
Part # Description Availability Price Order
MS7580-124-00 Genesis 7580, Scanner Only, 1D Scanning Only. Color: Black. Cables sold separately. See accessories.
Information:   |  Specifications  |  Honeywell's MS 7580 Genesis page  |
Accessories:   |  Accessories/Options  |  Honeywell MS 7580 Genesis service contract  |

MS7580-124-00 Details

Technical Information

  • Barcode Dimension:
    • 1D
    • 2D
  • Connectivity Technology: Cable
  • Image Sensor: Imager
  • Barcode Symbology Supported:
    • Standard 1D
    • 2D
    • PDF
    • Postal
    • OCR
    • Standard 1D
    • 2D
    • PDF
    • Postal
    • OCR
  • Maximum Scan Resolution: 4 mil
  • Depth of Field:
    • 0.40" - 3.10"@5 mil - 1D
    • 0.40" - 4.90"@7.50 mil - 1D
    • 0 mil - 5.10"@10.40 mil - 1D
    • 0 mil - 6.20"@13 mil - 1D
    • 0.40" - 5.70"@10 mil - PDF
    • 0.40" - 5.30"@15 mil - DM

General Information

  • Product Type: Desktop Barcode Scanner
  • Brand Name: Honeywell
  • Manufacturer: Honeywell International, Inc
  • Product Model: 7580
  • Product Name: Genesis 7580 Desktop Barcode Reader
  • Product Line: Genesis

Physical Characteristics

  • Height: 5.9"
  • Width: 3.3"
  • Depth: 3.2"
  • Color: Black
  • Weight (Approximate): 12 oz

Interfaces/Ports

  • Host Interface:
    • Keyboard Wedge
    • Serial
    • IBM 46XX
    • USB

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority:
    • RoHS
    • WEEE

Warranty

  • Limited Warranty: 2 Year
Part # Description Availability Price Order
TSP-US-SC-3 BCI Service Contracts, True Support Contract 3-year - Scanners Includes Tier 1 and Tier 2 Technical Helpdesk Support 7: 30am-cst-5: 00pm-cst, RMA Triage, OEM Service Contract management, Pre/post repair inspection and image loading. $48 per year for 3 years, billed annually.
Ships Free in 3-5 Days
$48.00
SVC7580-5WT3 Honeywell Service Contracts, 7580, Wear & Tear only, 5 Day Turn, 3 year DayOne
Ships Free in 3-5 Days
$34.45
Retail $39
Save 11%

The Honeywell MS7580-124-00 is also known as MET-MS7580-124-00 or MS758012400 .

Honeywell Scanning and & Mobility is a leader in AIDC and the new home for many products formerly available from Hand-Held and Metrologic.
