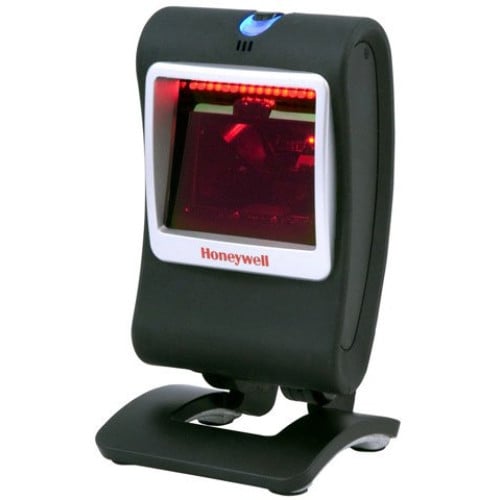

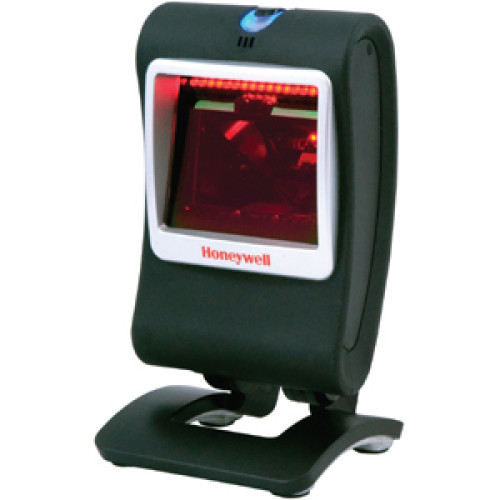

MS7580-124-02 - Honeywell MS 7580 Genesis Bar code Scanner

Genesis meets the market's need for a barcode reader that keeps pace with the growing prevalence of PDF, Data Matrix and QR barcodes, including those displayed on a mobile phone screen for emerging applications like digital boarding passes, event tickets or mobile coupons. Honeywell drew upon its years of expertise in imaging technology to execute a design capable of satisfying a wide range of applications in a variety of industries.

Questions?
1-888-875-7170
We respond to every email
Part # Description Availability Price Order
MS7580-124-02 Genesis 7580, MS7580: SCANNER ONLY, 1D/2D, BLAC K, RS-232-TTL/USB/Keyboard wedge/IBM46xx RS
Information:   |  Specifications  |  Honeywell's MS 7580 Genesis page  |
Accessories:   |  Accessories/Options  |  Honeywell MS 7580 Genesis service contract  |

MS7580-124-02 Details

Technical Information

  • Barcode Dimension:
    • 1D
    • 2D
  • Connectivity Technology: Cable
  • Light Source: LED
  • Image Sensor: Imager
  • Barcode Symbology Supported:
    • Reads Standard 1D
    • PDF
    • 2D
    • Postal
    • OCR Symbologies
    • Linear:
    • ABC Codabar (American Blood Commission)
    • China Post
    • Codabar
    • Code 11
    • Code 128
    • Code 32 Pharmaceutical (PARAF)
    • Code 39
    • Code 93 and 93i
    • EAN-13 (including Bookland EAN)
    • EAN-13 with Add-On
    • EAN-13 with Extended Coupon Code
    • EAN-8
    • EAN-8 with Add-On
    • GS1 Databar Expanded
    • GS1 Databar Limited
    • GS1 DataBar Omnidirectional
    • GS1 Databar Truncated
    • GS1-128
    • Interleaved 2 of 5
    • ISBT 128
    • ITF-14
    • Matrix 2 of 5
    • MSI-Plessey
    • UK Plessey Code
    • Straight 2 of 5 IATA
    • Straight 2 of 5 Industrial
    • Telepen
    • Trioptic Code
    • UPC-A
    • UPC-A with Add-On
    • UPC-A with Extended Coupon Code
    • UPC-E
    • UPC-E with Add-On
    • Stacked:
    • GS1 Databar Expanded Stacked
    • GS1 Databar Stacked
    • GS1 Databar Stacked Omnidirectional
    • Reads Standard 1D
    • PDF
    • 2D
    • Postal
    • OCR Symbologies
    • Linear:
    • ABC Codabar (American Blood Commission)
    • China Post
    • Codabar
    • Code 11
    • Code 128
    • Code 32 Pharmaceutical (PARAF)
    • Code 39
    • Code 93 and 93i
    • EAN-13 (including Bookland EAN)
    • EAN-13 with Add-On
    • EAN-13 with Extended Coupon Code
    • EAN-8
    • EAN-8 with Add-On
    • GS1 Databar Expanded
    • GS1 Databar Limited
    • GS1 DataBar Omnidirectional
    • GS1 Databar Truncated
    • GS1-128
    • Interleaved 2 of 5
    • ISBT 128
    • ITF-14
    • Matrix 2 of 5
    • MSI-Plessey
    • UK Plessey Code
    • Straight 2 of 5 IATA
    • Straight 2 of 5 Industrial
    • Telepen
    • Trioptic Code
    • UPC-A
    • UPC-A with Add-On
    • UPC-A with Extended Coupon Code
    • UPC-E
    • UPC-E with Add-On
    • Stacked:
    • GS1 Databar Expanded Stacked
    • GS1 Databar Stacked
    • GS1 Databar Stacked Omnidirectional
  • Maximum Scan Resolution: 7.50 mil
  • Depth of Field:
    • 1.60" - 3.10"@5.20 mil - 1D
    • 1.20" - 4.70"@7.50 mil - 1D
    • 0.80" - 5.50"@10.40 mil - 1D
    • 0 mil - 6"@13 mil - 1D
    • 0 mil - 4.70"@10 mil - PDF
    • 1.20" - 4.70"@15 mil - PDF

General Information

  • Product Type: Desktop Barcode Scanner
  • Brand Name: Honeywell
  • Manufacturer: Honeywell International, Inc
  • Product Model: MS7580
  • Product Name: Genesis MS7580 Desktop Barcode Reader
  • Product Line: Genesis

Physical Characteristics

  • Height: 5.9"
  • Width: 3.3"
  • Depth: 3.2"
  • Color: Light Gray
  • Weight (Approximate): 12 oz

Interfaces/Ports

  • Host Interface:
    • IBM 46XX
    • Serial
    • USB

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority:
    • RoHS
    • WEEE
  • Platform Supported: PC

Warranty

  • Limited Warranty: 2 Year
Part # Description Availability Price Order
TSP-US-SC-3 BCI Service Contracts, True Support Contract 3-year - Scanners Includes Tier 1 and Tier 2 Technical Helpdesk Support 7:30am-cst-5:00pm-cst, RMA Triage, OEM Service Contract management, Pre/post repair inspection and image loading. $48 per year for 3 years, billed annually.
Ships Free in 3-5 Days
$48.00
SVC7580-5WT3 Honeywell Service Contracts, 7580, Wear & Tear only, 5 Day Turn, 3 year DayOne
Ships Free in 3-5 Days
$34.45
Retail $39
Save 11%

The Honeywell MS7580-124-02 is also known as HSM-MS7580-124-02 or MS758012402 .

Honeywell Scanning and & Mobility is a leader in AIDC and the new home for many products formerly available from Hand-Held and Metrologic.
