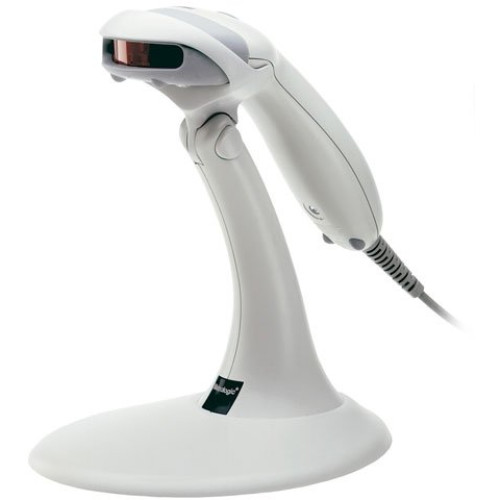

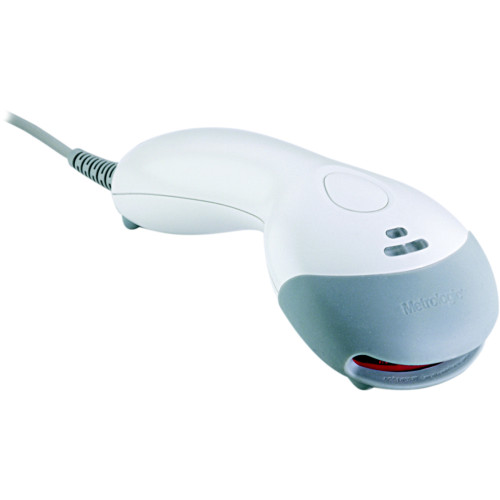

MS9540-41/WN - Honeywell MS 9540 Voyager Bar code Scanner

With a futuristic design and high-performance scanning technology the MS 9540 Voyager is equipped with all of the features of the MS9520 Voyager with the addition of Honeywell's exclusive CodeGate data transmission technology. CodeGate is an intuitive scanning system that is ideal for all scanning applications including Point-of-Sale document processing inventory and menu scanning just to name a few. CodeGate works hand in hand with Honeywell's automatic-triggering scheme. Simply present a bar code to the scanner; place the high-visibility laser line on the bar code then press the CodeGate button to transmit the data to the host system. It's as easy as one two three! Equipped with both In-Stand and Out-of-Stand operation Voyager can be used as both a handheld and fixed projection scanner. While resting in the stand the CodeGate button is deactivated making VoyagerCG a presentation scanner. The feature-packed Voyager comes equipped with PowerLink user-replaceable cables and power supply MetroSelect one-code programming MetroSet Windows-based software configuration utility Bits n' Pieces data editing utility and an Electronic Article Surveillance (EAS) option. With aggressive performance and lightweight design VoyagerCG is far and away the most advanced scanner on the market today!

Questions?
1-888-875-7170
We respond to every email
Part # Description Availability Price Order
MS9540-41/WN MS 9540 Voyager, SCANNER ONLY, 1D Laser Scanner. RS-232 interface. Wincor certified. Cables and accessories must be purchased separately. Color: Gray. Non-Cancelable/Non-Returnable.
Ships Free in 3-5 Days
$102.92
Retail $163
Save 36%
Information:   |  Specifications  |  Honeywell's MS 9540 Voyager page  |
Accessories:   |  Accessories/Options  |  Honeywell MS 9540 Voyager service contract  |

MS9540-41/WN Details

Technical Information

  • Barcode Dimension: 1D
  • Scan Pattern: Single Line
  • Connectivity Technology: Cable
  • Light Source: Laser
  • Barcode Symbology Supported:
    • Reads Standard 1D and GS1 DataBar Symbologies
    • Reads Standard 1D and GS1 DataBar Symbologies
  • Maximum Scan Resolution: 5 mil
  • Depth of Field:
    • 0.50" - 2"@5.20 mil
    • 0 mil - 5"@7.50 mil
    • 0 mil - 6.50"@10.40 mil
    • 0 mil - 8"@13 mil
    • 1" - 10"@21 mil

General Information

  • Product Type: Handheld Barcode Scanner
  • Brand Name: Honeywell
  • Manufacturer: Honeywell International, Inc
  • Product Model: 9540
  • Product Name: VoyagerCG 9540 Handheld Barcode Reader
  • Product Line: VoyagerCG

Physical Characteristics

  • Height: 2.2"
  • Width: 3.1"
  • Depth: 7.8"
  • Color: Light Gray
  • Weight (Approximate): 5.30 oz

Interfaces/Ports

  • Host Interface: Serial

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority:
    • RoHS
    • WEEE

Warranty

  • Limited Warranty: 5 Year
Part # Description Availability Price Order
53-53000-3 Honeywell Cable, RS-232, black, DB-9 female, 2.9m (9.5'), coiled, 5V external power Ships Free Today $15.87
46-46128 Metrologic Mask Stand for the Voyagers - MS9540, MS9520, MS9544 and MS9524 series scanners. Color: Light Gray Ships Free Today $19.62
46-00525 Honeywell Power supply, North American plug, 1A output current, 90 to 255 AC input voltage, 50-60 Hz, 5.2 VDC Ships Free Today $27.63
Retail $33
Save 16%
TSP-US-SC-3 BCI Service Contracts, True Support Contract 3-year - Scanners Includes Tier 1 and Tier 2 Technical Helpdesk Support 7:30am-cst-5:00pm-cst, RMA Triage, OEM Service Contract management, Pre/post repair inspection and image loading. $48 per year for 3 years, billed annually.
Ships Free in 3-5 Days
$48.00
SVC9520-1LC5 Honeywell Service Contracts, 9520, Limited Comprehensive, 1 Day Turn, 5 year DayOne
Ships Free in 3-5 Days
$32.57
Retail $36

The Honeywell MS9540-41/WN is also known as MS9540-41/WN or MS954041WN .

Honeywell Scanning and & Mobility is a leader in AIDC and the new home for many products formerly available from Hand-Held and Metrologic.
