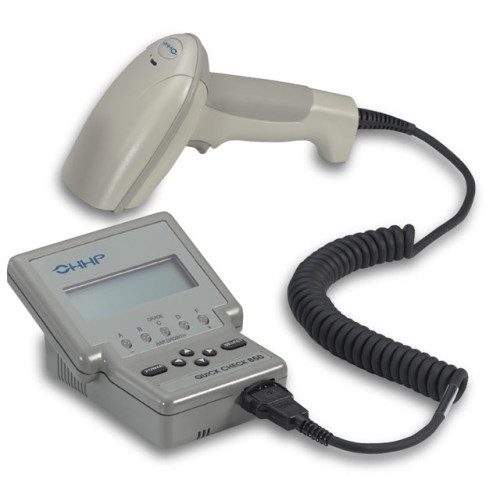

Honeywell Quick Check 800 Series Barcode Verifier
Part #: QC8501-NI | SKU: HON60496

Barcode symbol reproduction accuracy is critical throughout the distribution supply chain, especially in an era of stringent compliance programs. With Hand-Held verification products you can be assured that you can produce, receive, and use barcodes that meet these tough requirements with Quick Check verifiers the Quick Check 800 Series verifiers analyze barcode quality against traditional quality parameters and ANSI/CEN/ISO barcode print quality guidelines. Each unit includes all standard symbologies and is manufactured and traceable to N.I.S.T. (National Institute of Standards and Technology) standards developed by the U.C.C. (Uniform Code Council) and AIM (Automatic Identification Manufacturers).

Honeywell Quick Check 800 Series Barcode Verifier

Part Details: Quick Check 850 Bar Code Verifier (with QCAC, No QC3800V and No Cable)

Additional Information

Manufacturer Honeywell
Model Name Quick Check 800 Series

General Information

  • Product Type: Barcode Verifier
  • Brand Name: Honeywell
  • Manufacturer: Honeywell International, Inc
  • Product Model: 800
  • Product Name: Quick Check 850 Barcode Verifier
  • Product Line: Quick Check

Physical Characteristics

  • Height: 2.8"
  • Width: 4.3"
  • Depth: 5.3"
  • Weight (Approximate): 1 lb

Other

  • Additional Information:
    • Dimensions:
    • Height: 2.8 in. (7.0 cm)
    • Width: 4.3 in. (10.9 cm)
    • Length: 5.3 in. (13.3 cm)
    • Mechanical:
    • Weight: 16 ounces (454 g)
    • Power: 4 AA rechargeable NiCad batteries and AC charger
    • Case: Lexan polycarbonate 141
    • Beeper: A single beeper provides an audible valid/invalid signal and a triple beep on known out of spec codes
    • Display: 4 line X 20 character LCD
    • Keypad: 6-button, power, select (4 arrows)
    • LEDs: 5 tri-colored LEDs
    • Environmental:
    • Operating Temperature: 32 to 122° F (0 to 50° C)
    • Storage Temperature: 14 to 158° F (-20 to 70°C)
    • Relative Humidity: 5% to 95% Non-condensing
    • Optical:
    • Pen: 5, 6, 10 mil
    • Linear Imager: min. "X" dimension 5 mil
    • Wavelength: Visible : 660nm
    • Infrared : 940nm
    • Symbologies:
    • EAN/UPC with addenda, Code 39 (1-49 characters), Interleaved 2 of 5 (2-78 characters), Codabar,
    • Code 128 (1-70 characters), MSI (1-50 characters), Code 16K (individual rows),
    • Code 49 (individual rows), Code 93, Code 11, Regular 2 of 5 (Discrete/Industrial 2 of 5),
    • IATA 2 of 5 (Straight 2 of 5), Database look-up feature
    • Safety/Regulatory:
    • FCC Class A, CE Certified
    • Windows is a registered trademark of Microsoft Corporation in the United States and/or other countries
Extended Details

Recommended Accessories for Model: Honeywell Quick Check 800 Series Barcode Verifier

Recommended Warranties for Model: Honeywell Quick Check 800 Series Barcode Verifier
