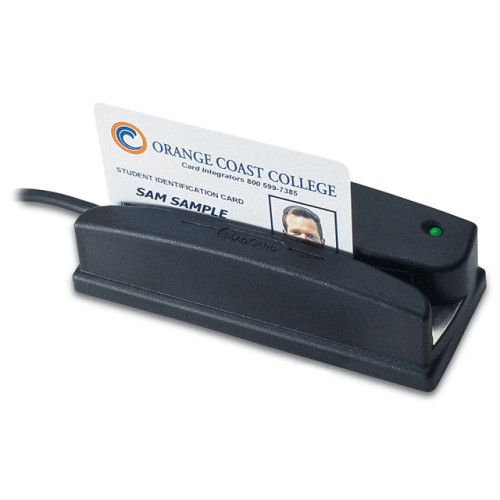

Photo of ID Tech Omni Barcode-Stripe Reader
ID Tech logo

ID Tech Omni Barcode-Stripe Reader Badge Reader

The ID Tech Heavy Duty Omni Barcode-Stripe Reader can read bar codes and magnetic stripe reader. In addition to rugged housing, the Omni Barcode-Stripe Reader has a metal base with tapped holes and rubber feet, and can be Velcro mounted. Multi-colored LED (not on TTL). The cable can exit at the end, side or straight down. Options include visible or infrared bar code scanning, as well as TTL, RS-232, Keyboard wedge (AT/XT, PS/2, or Mac), Weigand or USB interface options.

Type ?

Track ?

Interface Options

Indoor Outdoor Ruggedness

Omni Barcode-Stripe Reader Options
Part # DescriptionAvailabilityPriceOrder
WCR3237-633 Omni Barcode-Stripe Reader, Tracks 1, 2, & 3, Keyboard wedge interface dual barcode slot reader & MSR. Includes PS/2 Y-cable. Color: black. Ships in 24-48 Hours $155.87
Retail $329
Save 52%
WCR3237-633U Omni Barcode-Stripe Reader, Tracks 1, 2, & 3, USB interface dual barcode slot reader & MSR. Includes USB cable. Color: black. Ships Today $178.76
Retail $369
Save 51%
WCR3227-633 Omni Barcode-Stripe Reader, Tracks 1, 2, & 3, RS-232 interface dual barcode slot reader & MSR. Includes power supply & RS-232 cable. Color: black. Ships in 24-48 Hours $155.87
Retail $329
Save 52%
WCR3227-633C Omni Barcode-Stripe Reader, Tracks 1, 2, & 3, RS-232 interface weatherized dual barcode slot reader & MSR. Includes power supply & RS-232 cable. Color: black. Ships Today $167.51
Retail $439
Save 61%
WCR3227-612 Omni Barcode-Stripe Reader, Magnetic Stripe Reader with Tracks 1 and 2, RS-232 Interface, Barcode Reader with Visible Red, Color: Black Ships Today $144.60
Retail $309
Save 53%
WCR3237-612 Omni Barcode-Stripe Reader, Combo Barcode/MSR, Keyboard wedge interface, Tracks 1 and 2 Ships in 24-48 Hours $145.05
Retail $399
Save 63%
WCR3237-612C Omni Barcode-Stripe Reader, Combo Barcode/ Magnetic Stripe Reader, Tracks 1 and 2, Keyboard wedge Interface, Weatherized Ships in 24-48 Hours $155.87
Retail $409
Save 61%
WCR3237-612U Omni Barcode-Stripe Reader, Tracks 1 and 2, Barcode reader, Visible Red, USB interface Ships Today $169.07
Retail $349
Save 51%
WCR3237-712 Omni Barcode-Stripe Reader, Tracks 1 and 2, Barcode reader, Infrared, Keyboard wedge interface, AT and PS/2 cables, Color: Black Ships in 24-48 Hours $145.05
Retail $399
Save 63%
WCR3237-733 Omni Barcode-Stripe Reader, Tracks 1, 2 and 3, Barcode reader, Infrared, Keyboard wedge interface, AT and PS/2 cables, Color: Black Ships in 24-48 Hours $156.56
Retail $429
Save 63%
WCR3237-733U Omni Barcode-Stripe Reader, Swipe Reader, Heavy Duty Slot Reader, Combo Barcode-Mag Reader, USB Interface, Infrared with Tracks 1, 2 and 3 Ships Today $178.76
Retail $369
Save 51%
WCR3237-712U Omni Barcode-Stripe Reader, Omni Heavy Duty Slot Reader (Combo Barcode-Mag Reader, USB Interface, Infrared with Tracks 1 and 2) - Color: Black Ships Today $169.07
Retail $349
Save 51%
WCR3297-612C Omni Barcode-Stripe Reader, Omni Heavy Duty Slot Reader (Tracks 1 and 2, Wiegand Interface, Visible Red and Weatherized) Ships in 24-48 Hours $175.84
Retail $364
Save 51%
WCR3227-733 Omni Barcode-Stripe Reader, Omni Heavy Duty Slot Reader (RS-232, 3-Track and Infrared) Ships in 24-48 Hours $155.89
Retail $300
Save 48%
WCR3227-612C Omni Barcode-Stripe Reader, Omni Heavy Duty Slot Reader (Magnetic Stripe Reader with Tracks 1 and 2, Barcode Reader with Visible Red, Weatherized, RS-232 Interface, Power supply and Programming Features) Ships in 24-48 Hours $155.87
Retail $419
Save 62%
WCR3227-712C Omni Barcode-Stripe Reader, Omni Heavy Duty Slot Reader (Infrared and RS-232 Interface, Tracks 1 and 2 and Weatherized) Ships in 24-48 Hours $174.86
Retail $324
Save 46%
WCR3227-733U Omni Barcode-Stripe Reader, Omni Heavy Duty Slot Reader (USB Barcode Infrared with Tracks 1, 2 and 3) Ships in 24-48 Hours $178.76
Retail $369
Save 51%
WCR3237-633UC Omni Barcode-Stripe Reader, Omni Heavy Duty Slot Reader (Combo Barcode/Magnetic Stripe Reader with Tracks 1, 2 and 3, Visible Red, USB Interface and Weatherized) - Color: Black Ships Today $190.87
Retail $379
Save 49%
WCR3237-733UC Omni Barcode-Stripe Reader, Omni Heavy Duty Slot Reader (Combo Barcode-Mag Reader, USB Interface, Infrared with Tracks 1, 2 and 3 and Weatherized) - Color: Black Ships in 24-48 Hours $190.87
Retail $394
Save 51%
WCR3227-733C Omni Barcode-Stripe Reader, Omni Heavy Duty Slot Reader (RS-232, 3-Track, Infrared and Weatherized) Ships in 24-48 Hours $188.45
Retail $320
Save 41%
WCR3227-612U Omni Combo Reader, OmniReader/Magnetic/Visible Red Barcode/ USB/RS-232 Ships in 24-48 Hours $190.20
Retail $349
Save 45%
WCR3207-602 Omni Barcode-Stripe Reader, MAGNETIC & VISIBLE RED BARCODE, TTL UN-INTELLIGENT INTERFACE, TRACK 2 Ships in 24-48 Hours $94.64
Retail $169
Save 44%
WCR3207-612 Omni Barcode-Stripe Reader, MAGNETIC & VISIBLE RED BARCODE, TTL UN-INTELLIGENT INTERFACE, TRACK 1 & 2 Ships in 24-48 Hours $100.24
Retail $179
Save 44%
WCR3207-633 Omni Barcode-Stripe Reader, MAGNETIC & VISIBLE RED BARCODE, TTL UN-INTELLIGENT INTERFACE, TRACK 1 & 2 & 3 Ships in 24-48 Hours $111.44
Retail $199
Save 44%
WCR3237-612UC Omni Barcode-Stripe Reader, COMBO READER, BC/MSR, TI/II, Keyboard wedge, USB, WEATHERIZED Ships in 24-48 Hours $190.20
Retail $374
Save 49%
WCR3237-633C Omni Barcode-Stripe Reader, COMBO READER, BC/MSR, TI/II/III, Keyboard wedge, AT & PS/2 WEATHERIZED Ships in 24-48 Hours $188.98
Retail $399
Save 52%
WCR3297-600 Omni Barcode-Stripe Reader, COMBO READER, VIS RED, WEIGAND, BLACK Ships in 24-48 Hours $124.80
Retail $229
Save 45%

ID Tech Omni Barcode-Stripe Reader Details

Reads magnetic stripes. The Omni reads up to three tracks of information with a single swipe in either direction. In combination, the same Omni unit can read both bar code and magnetic stripe media. TTL, RS-232, keyboard wedge, USB/Keyboard, and Weigand interfaces are available.

Edits and formats data. The Omni can be programmed to divide, rearrange, edit, and validate fields of scanned data. In addition, it allows for up to 16 preamble or postamble characters. Data editing for the Weigand interface can be programmed with an optional RS-232 adaptor cable.

Scans bar codes. The Omni scans bar codes printed on paper, card stock, or plastic. An infrared option is available for security-based applications, where bar codes are overprinted to prevent duplication.

Stands up to heavy use. The Omni reader is designed for demanding applications, such as for access control or in self-service kiosks. Its die-cast metal base, stainless steel wearplate, and impact-resistant housing make it ideal for stand-alone, high-volume traffic. Its metal base can be securely mounted with screws, and cable exits are avaliable at the side, end, or bottom of the unit. A weatherproof/extended temperature version is also available for use in harsh environments.

The ID Tech Omni Barcode-Stripe Reader is also known as the IDTech Omni Barcode-Stripe Reader .
