ID Tech Omni Card Scanner

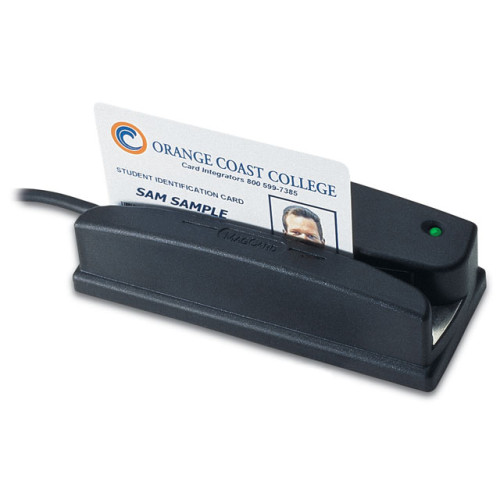

The ID Tech Heavy Duty Omni magnetic stripe reader. In addition to rugged housing, the Omni has a metal base with tapped holes and rubber feet, and can be Velcro mounted. Multi-colored LED (not on TTL). The cable can exit at the end, side or straight down. Options include TTL, RS-232, Keyboard wedge (AT/XT, PS/2, or Mac), Weigand or USB interface.

If you need to read barcodes, please see the Omni Barcode Reader. If you need to read both barcodes and magnetic stripes, please see the Omni Barcode and Stripe Reader.

Type ?

Track ?

Interface Options

Indoor Outdoor Ruggedness

Omni Options
Part # DescriptionAvailabilityPriceOrder
WCR3237-512U Omni, Tracks 1 & 2, USB interface. Includes USB cable. Color: black. Mag stripe only. Ships Today $115.78
Retail $239
Save 51%
WCR3237-533U Omni, USB, Black, Keyboard Emulation, Reads tracks 1, 2, & 3. Includes USB cable. Ships Today $140.00
Retail $289
Save 51%
WCR3237-533UC Omni, Tracks 1, 2, & 3, USB interface weatherized MSR. Includes USB cable. Color: black. Ships in 24-48 Hours $154.35
Retail $289
Save 46%
WCR3237-512 Omni, Tracks 1 & 2, Keyboard wedge interface. Includes PS/2 Y-cable. Color: black. Ships in 24-48 Hours $98.72
Retail $199
Save 50%
WCR3237-512C Omni, Tracks 1 & 2, Keyboard wedge interface weatherized MSR. Includes PS/2 Y-cable. Color: black. Ships in 24-48 Hours $110.93
Retail $229
Save 51%
WCR3237-533 Omni, Tracks 1, 2, & 3, Keyboard wedge interface. Includes PS/2 Y-cable. Color: black. Ships in 24-48 Hours $110.72
Retail $249
Save 55%
WCR3227-512 Omni, Tracks 1 & 2, RS-232 interface. Includes power supply & RS-232 cable. Color: black. Ships Today $98.72
Retail $199
Save 50%
WCR3227-512C Omni, Tracks 1 & 2, RS-232 interface weatherized MSR. Includes power supply & RS-232 cable. Color: black. Ships in 24-48 Hours $108.95
Retail $214
Save 49%
WCR3227-533 Omni, Tracks 1, 2, & 3, RS-232 interface. Includes power supply & RS-232 cable. Color: black. Ships in 24-48 Hours $110.72
Retail $249
Save 55%
WCR3227-533C Omni, Tracks 1, 2, & 3, RS-232 interface weatherized MSR. Includes power supply & RS-232 cable. Color: black. Ships in 24-48 Hours $120.62
Retail $279
Save 56%
WCR3207-512 Omni, Dual-Track Magnetic Stripe Reader Only, TTL Interface, Rugged Housing, Color: Black Ships in 24-48 Hours $52.01
Retail $139
Save 62%
WCR3207-512C Omni, Track 1 and 2, TTL interface, Weatherized Ships Today $62.88
Retail $149
Save 57%
WCR3207-600DS Omni, Undecoded, 5-pin connector, Visible Red Ships Today $71.60
Retail $199
Save 64%
WCR3207-700DS Omni, Undecoded, 5-pin connector, Infrared Ships Today $84.52
Retail $150
Save 43%
WCR3227-512U Omni, Tracks 1 and 2, USB interface, Color: Black Ships Today $115.46
Retail $239
Save 51%
WCR3227-533U Omni, Swipe Reader, Heavy Duty Slot Reader, Magnetic Stripe Reader with Tracks 1, 2 and 3, USB Interface and RS-232 Emulation. Ships Today $125.12
Retail $289
Save 56%
WCR3227-633UC Omni, Magnetic Stripe Reader with Tracks 1, 2 and 3, USB, RS-232 Emulation, Barcode Reader with Visible Red, Decoded and Weatherized Ships Today $190.33
Retail $399
Save 52%
WCR3227-712U Omni, Tracks 1 and 2, USB interface, Infrared Ships Today $169.07
Retail $349
Save 51%
WCR3297-600S Omni, Wiegand interface, Visible Red Ships in 24-48 Hours $110.93
Retail $229
Save 51%
WCR3227-700U Omni, Heavy Duty Slot Reader (Barcode Only, USB Interface, Infrared and Power supply) Ships in 24-48 Hours $129.89
Retail $239
Save 45%
WCR3297-512 Omni, Heavy Duty Slot Reader (Magnetic Stripe Reader Only with Tracks 1 and 2 and Wiegand Interface) Ships in 24-48 Hours $110.93
Retail $229
Save 51%
WCR3227-533UC Omni, Heavy Duty Slot Reader (Magnetic Stripe Reader Only with Tracks 1, 2 and 3, USB-RS-232 Interface and Weatherized) Ships in 24-48 Hours $141.37
Retail $304
Save 53%
WCR3237-512UC Omni, Heavy Duty Slot Reader (Magnetic Stripe Reader Only with Tracks 1 and 2 with USB and Keyboard wedge Emulation - Weatherized) Ships in 24-48 Hours $127.89
Retail $254
Save 49%
WCR3297-600C Omni, Heavy Duty Slot Reader (Wiegand Interface, Visible Red and Weatherized) - Color: Black Ships in 24-48 Hours $122.70
Retail $239
Save 48%
CKE3237-512K12UC Omni, Heavy Duty Slot Reader (WCR3237-512UC with 15 ft. Cable) Ships in 24-48 Hours $193.75
WCR3207-533 Omni, Heavy Duty Slot Reader (Magnetic Stripe Reader Only with Tracks 1, 2 and 3, TTL Interface and Bi-Directional) Ships Today $61.79
Retail $149
Save 58%
WCR3227-512K512C Omni, Heavy Duty Slot Reader (Omni Duo - Double MSR Heads) Ships Today $206.53
WCR3297-512C Omni, Heavy Duty Slot Reader (Magnetic Stripe Reader Only with Tracks 1 and 2 and Wiegand Interface - Weatherized) Ships in 24-48 Hours $138.04
Retail $239
Save 42%
WCR3237-512K12U Omni, Heavy Duty Slot Reader (Dual Dead, USB/Keyboard wedge, Tracks 1 and 2) Ships in 24-48 Hours $122.70
Retail $249
Save 50%
WCR3297-700C Omni, Heavy Duty Slot Reader (IRED BC, Weigand, Weatherized) Ships in 24-48 Hours $125.66
Retail $249
Save 49%
WCR3237-512K12UC Omni, DUAL HEAD, TR12, USB, KYBD WEATHERIZED Ships Today $158.43
Retail $264
Save 39%
WCR-355712 OMNI DUO USB-HID MM2 TRK1 & 2 Ships in 24-48 Hours $138.04
Retail $249
Save 44%
WCR3297-633 Omni, Heavy Duty Slot Reader (Wiegand Interface, Visible Red and 3-Track) Ships in 24-48 Hours $195.11
Retail $359
Save 45%
TIC3237-633 Omni, Combo Reader, VIS Red 3 Track MSR, --for Ticketech Ships Today $189.81
WCR3297-702 OMNI READER, MAGNETIC & INFRARED BARCODE TRACK 2 Ships in 24-48 Hours $178.80
Retail $329
Save 45%
WCR3207-502C Omni, TTL, MAG, 2 TRACK, CC Ships in 24-48 Hours $73.70
Retail $90.85
Save 18%
WCR3297-533 Omni, MAGNETIC ONLY, INTELLIGENT INTERFACE, WIEGAND INTERFACE, TRACKS 1 & 2 & 3 Ships in 24-48 Hours $156.24
Retail $279
Save 43%
WCR3297-533C Omni, MSR, 3 TRACK, WIEGAND, BLACK, WEATHERIZED Ships in 24-48 Hours $151.63
Retail $279
Save 45%
WCR3227-700US Omni, INFRA RED, SEALED, USB, RS2/32 EMULATION, BLACK Ships Today $130.25
Retail $239
Save 45%

ID Tech Omni Details

Reads magnetic stripes. The Omni reads up to three tracks of information with a single swipe in either direction. In combination, the same Omni unit can read both bar code and magnetic stripe media. TTL, RS-232, keyboard wedge, USB/Keyboard, and Weigand interfaces are available.

Edits and formats data. The Omni can be programmed to divide, rearrange, edit, and validate fields of scanned data. In addition, it allows for up to 16 preamble or postamble characters. Data editing for the Weigand interface can be programmed with an optional RS-232 adaptor cable.

Scans bar codes. The Omni scans bar codes printed on paper, card stock, or plastic. An infrared option is available for security-based applications, where bar codes are overprinted to prevent duplication.

Stands up to heavy use. The Omni reader is designed for demanding applications, such as for access control or in self-service kiosks. Its die-cast metal base, stainless steel wearplate, and impact-resistant housing make it ideal for stand-alone, high-volume traffic. Its metal base can be securely mounted with screws, and cable exits are avaliable at the side, end, or bottom of the unit. A weatherproof/extended temperature version is also available for use in harsh environments.

The ID Tech Omni is also known as the IDTech Omni .
