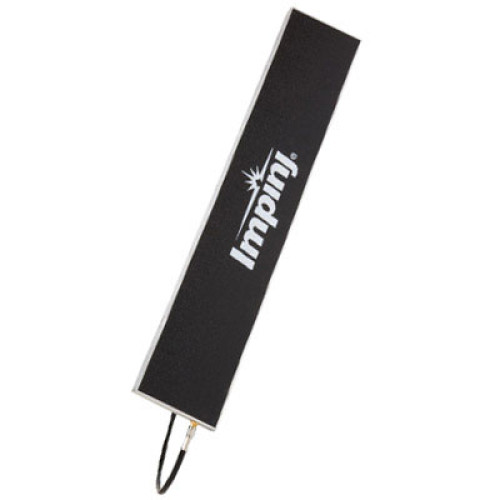

Photo of Impinj Threshold
Impinj logo

Impinj Threshold RFID Antenna

Initially designed for boundary/threshold crossing applications, the Impinj Threshold has a very wide beam width to maximize zone coverage. Threshold antennas provide a consistent and continuous read zone when linearly distributed head-to-tail. At 18.1 x 3.5 x 0.7 inch, the Threshold's planar form factor fits readily onto fencing or other borders.
Questions?
1-888-875-7170
We respond to every email

Connector ?

Read Range

Frequency Range ?

Environment

Polarization ?

Form Factor ?

Gain ?

Threshold Options
Part # DescriptionAvailabilityPriceOrder
IPJ-A0311-USA Threshold, RFID Antenna, UHF, FCC, 18.1 x 3.5 x 0.7 inches, Far Field, Outdoor, Linear Polarization, 5 dBiL Gain, Includes 7 ft. SMA to R-TNC Cable. Ships Free Today $365.00
IPJ-A0311-EU1 Threshold, Reader Antenna (ETSI) (18.1 x 3.5 x 0.7 inch) with 1 7 ft. SMA to R-TNC cable.
Ships Free in 3-5 Days
$365.00

Accessories

Part # DescriptionAvailabilityPriceOrder
IPJ-A3002-000 Reader Antenna Accessories, Cable, SMA to R-TNC, 6.5 feet, For Use with Impinj Guardwall, Mini-Guardrail, Matchbox, and Threshold Antennas. Ships Free Today $60.00
IPJ-A3004-000 Reader Antenna Accessories, SMA to R-TNC cable 13 ft., For use with Guardwall, Mini-Guardrail, Matchbox, and Threshold antennas). Ships Free Today $75.00
IPJ-A3008-000 Reader Antenna Accessories, SMA to R-TNC cable 26 ft., For use with Guardwall, Mini-Guardrail, Matchbox, and Threshold antennas). Ships Free Today $120.00
