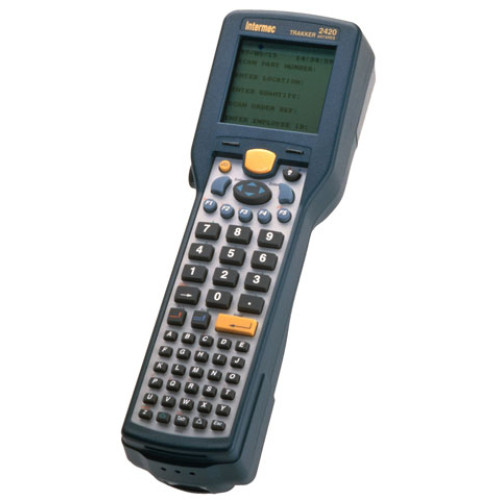

Photo of Intermec 2420 Trakker Antares
Intermec logo

Intermec 2420 Trakker Antares Hand Held Computer

Intermec CK 30 A newer version of this item is available.
It is replaced by the Intermec CK 30.
Rugged and economically priced the 2420 Trakker Antares Handheld Terminal is full-featured and suited to batch or off-line applications such as inventory control asset management item tracking maintenance management and other off-line data collection applications.
We respond to every email
2420 Trakker Antares Options
Part # DescriptionAvailabilityPriceOrder
T2420A013360 Trakker Antares T2420, Alphanumeric, long range scanner & 4MB flash. Order dock, cables, power supply, batteries & user's manual separately. See accessories. Check Availability Call for Details
T2420A013261 Trakker Antares T2420, Alphanumeric, standard range scanner, 4MB SRAM & 4MB flash. Order dock, cables, power supply, batteries & user's manual separately. See accessories. Check Availability Call for Details
T2420A013260 Trakker Antares T2420, Alphanumeric, standard range scanner & 4MB flash. Order dock, cables, power supply, batteries & user's manual separately. See accessories. Check Availability Call for Details
T2420A013160 2420 Trakker Antares, Alphanumeric, 10-pin port (scanner not included) & 4MB flash. Order dock, cables, power supply, batteries & user's manual separately. See accessories. Check Availability Call for Details


Part # DescriptionAvailabilityPriceOrder
HIN2420-LI Intermec Replacement Battery, Antares 2420 / 2425 / 2430 / 2435 / 5020 / 5025 models Battery Replacement. OEM Part Numbers: (Part# 063278) / (Part# 068537) / (Part# 073152), Lithium-ion, 2200 mAh, 7.4V Ships Free Today $45.27
Retail $65
Save 30%
321-611-102 Cable, USB-A to USB-Mini B Plug, 2M (Use with CN3CN4 series Single Docks (871-025-002) or Vehicle Dock USB Adapter Cable (VE011-2016) for conneciton to PB42 printer or other peripherals equipped with USB-Mini B Female jack) Ships Free Today $35.63
Retail $49
Save 27%
321-584-003 Cable, Hirose to DB-9M with T-screws 48" Ro (700 Hirose connector to DB9M for serial device. Includes thumbscrews.)
Ships Free in 3-5 Days
321-497-101 Serial Cable, DB-9M/DB9F, 6 ft., (Use with CK60 Single Docks or RS-232 Snap-on Adapter for connection to DCE serial devices.)
Ships Free in 3-5 Days
Retail $24
236-164-002 Cable, USB, 6.5 feet, Includes Keyboard Emulation. Ships Free Today $31.07
Retail $40
Save 22%
236-137-001 Cable Assembly (RP SMA Plug/RP N Recept)
Ships Free in 3-5 Days
Retail $63
Save 28%
226-340-003 Cable Assembly (V-Dock, Power)
Ships Free in 3-5 Days
Retail $25
203-776-001 Cable Assembly Kit (Data, IV7B/C)
Ships Free in 3-5 Days
Retail $180
Save 37%
1-974022-018 Cable (1.8 meters, IEE 1284 Parallel)
Ships Free in 3-5 Days
Retail $25

Intermec 2420 Trakker Antares Details

<<$mfg->name>> 2420 Trakker Antares Handheld Computer(Antares)

  • Backlit display, full keypad and multiple scanning options
  • Ergonomic design
  • Upgradable to RF to protect your investment
  • Industry standard tools and program generator
  • Long life battery and convenient communications accessories

The <<$mfg->name>> 2420 Trakker Antares is a full-featured terminal suited to inventory control, asset management, item tracking, maintenance management and other off-line data collection applications. Built to last, it will survive the repeated drops and rough environmental conditions found in manufacturing, distribution, health care and other demanding uses.

Applications can be developed using industry standard language tools; no proprietary languages to learn and support. The task is even quicker with EZBuilder™, a rapid application development and prototyping tool that requires no programming language expertise at all. Fast data communications to a PC or host are supported either through a portable serial adapter or a desktop communications dock.

With its Lithium Ion main batteries - normally found in more expensive computers and laptop PCs—data can be collected for a normal shift or longer without a battery change. Recharge them gradually while the terminal is in the communications dock or quickly in a convenient multi-pack charger. Data will be saved for days in the event the main battery is temporarily or accidentally removed. An internal modem option provides remote dial-up access at speeds up to 33.6 Kbps.

Standard memory and non-volatile storage will satisfy most application requirements. For larger files or portable data bases, add 2 or 4MB memory expansion options. Easily transform the 2420 to a wireless terminal. Integrated scanners are replaceable modules for easier maintenance.

And the 2420 is a part of Intermec’s 2400 family of fully compatible hand-held, vehicle mount and stationary shop floor terminals.

Physical Characteristics Length: 26.9 cm (10.6") Width: 8.2 cm (3.2") at scanner, 6.4 cm (2.5") at grip Height: 7.1 cm (2.8") at scanner, 5.7 cm (2.3") at grip Weight: 620 g (22 oz.) including battery

Environment Operating: -20° to 50°C (-4°F to 122°F) Storage: -20° to 60°C (-4°F to 140°F) for less than two weeks Humidity: Non-condensing (0 to 95% RH) Shock and vibration protection: Warrented for 5-foot drop to concrete

Power Operating: Lithium Ion battery pack Memory Backup: Rechargeable NiCad

Memory RAM Memory: 1MB Non-volatile Memory: 2MB Additional 2MB (4MB total) optional Extended Memory: 2MB or 4MB SRAM (not available with modem option)


  • Optical (sealed) serial interface
  • RS232-C up to 38.4 baud
  • XMODEM, YMODEM for data transfer
  • Supports Configurable Serial Protocol and XON/XOFF


  • CGA compatible backlit LCD displaying 16 lines of 20 characters per line (128 x 160 dot matrix) plus graphic status icons

Keyboard Elastomeric 56-key with full alphanumeric set, function keys and oversized numeric

Bar code Symbologies Code 39, 2 of 5, Interleaved 2 of 5, Codabar, UPC/EAN Code 128, Code 11, Code 93, Plessey, MSI, PDF-417

Bar code Scanning Options Integrated visible laser diode scanner USA/Canada Class II, International Class 2

Depth of Field*-Standard Range(670nm) 5 mil 9.4-15.7cm 3.7-6.2" 10 mil 7.4-35.3cm 2.9-13.9" 20 mil 10.2-63.5cm 4-25" 30 mil 10.2-86.4cm 4-34" 40 mil 12.7-99cm 5-39" 55 mil 19.1-126cm 7.5-49" 55 mil retroreflective 105-151cm 41-59" 100 mil retroreflective 113-227cm 44-89" * measured for Code 39

Depth of Field-Long Range (650nm) 5 mil 29.5-49.8cm 11.6-19.6" 10 mil 21.8-85.3cm 8.6-33.6" 20 mil 21.8-98cm 8.6-38.6" 30 mil 24.4-192cm 9.6-75.6" 40 mil 24.4-204.7cm 9.6-80.6" 70 mil retroreflective 192-410.5cm 76.6-161.6" 100 mil retroreflective 212.3-532.4cm 83.6-209.6"

  • High density PDF 417 and High Visibility option available
  • Optional adapter module with 10-pin connector for use with Intermec cabled scanners and wands

<<$mfg->name>> 2420 Trakker Antares Integrated Modem Option

  • 33.6 Kbps transfer rate RJ11 connector and cable (6ft/2m)
  • Operating: 0-50°C, 32-104°F
  • Regulatory: UL Listed & C22.2 No.950

FCC Parts 15 & 68. Canada ICES-003 & CS03.

  • SRAM expansion and RF upgradability not available with modem option.

RF Upgradable Can be retrofitted with integrated RF module Frequency: 2.4 GHz frequency band, actual frequencies in use vary by country WLI Forum OpenAir Type: Frequency Hopping Spread Spectrum Data Rate: 1.6 Mbps, .8 Mbps fallback Range*: From 1500+ ft (450+ m) to 500 ft (150 m) depending on environment IEEE 802.11b Wi-Fi Certified Type: Direct Sequence Spread Spectrum Data Rate: 11/5.5/2/1 Mbps with Auto fallback for increased range Range* at 1 Mbps: From 1750 ft (533 m) to 165 ft (50 m) depending on environment Range* at 11 Mbps: From 525 ft (160 m) to 80 ft (24 m) depending on environment Security: Wired Equivalent Privacy (WEP) - 64 or 126 bit encryption

  • Unlimited range with roaming

<<$mfg->name>> 2420 Trakker Antares Accessories Handstrap, holster, belt clip, pistol grip handle, vehicle mount holder, battery charger, battery pack, serial adapter and communications dock, User Manual, Programmer’s Software Kit(PSK), EZBuilder™ Rapid Application Development software

Regulatory Approvals UL Listed, UL 1950 and C22.2 No. 950, TÜV Rheinland GS, EN 60950 and EN 60825-1, FCC Part 15, Canada, RSS210 and ICES-003, Class B, EN 55022 / CISPR 22, Class B, ETS 300 328, ETS 300 339, Compliant with all European Directives, CE marked

The Intermec 2420 Trakker Antares is also known as the Intermec Technologies 2420 Trakker Antares .
