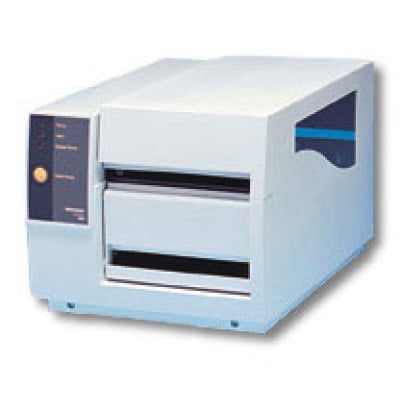

__($mfg->name) EasyCoder 3600 Label, Ticket & Tag Printer
Intermec’s EasyCoder 3600 is a versatile industrial strength printer based on the legendary 3400, intended for users that require 6” wide labels or tags. The EasyCoder 3600 is ideal for wide-format compliance shipping and container labels, such as ODETTE. Printing large text for applications requiring maximum readability such as chemical drum or pallet labeling is easy using the large outline font included on the __($mfg->name) EasyCoder 3600 .
The 3600 printer features label self-strip as standard. The self-strip feature peels the label away from the liner and presents the label to the operator for easier and faster demand labeling.
A serial communications interface is standard on the __($mfg->name) EasyCoder 3600 , with Centronics Parallel, IBM Coax™, Twinax™, and internal EasyLAN™ 10i network interface connections as optional. The internal Ethernet adapter provides high throughput and network management without the complexity, space requirements and fragility of external print servers.
Intermec’s LabelShop™ START design and print software and InterDriver™ Windows printer drivers are included, free of charge, with every printer.
Industrial-strength design and long lasting performance – it all adds up to the solid reputation that organizations worldwide have come to trust from the industry’s leading manufacturer.
Applications Direct Thermal and Thermal Transfer Printer for high volume wide self-adhesive label, ticket and tag applications. Internal rewind and self-strip.
Physical Characteristics Length: 44 cm (17.25”) Height: 27.7 cm (10.9”) Width: 30.5 cm (12”) Weight: 20.4 kg (45 lbs.)
Print Specifications Element: 0.125 mm (0.00492”) Maximum Length: Unlimited Maximum Width: 168 mm (6.6”) “X” Dimension: 0.13 to 1.27 mm (5 to 50 mil) Speed: 51, 77, 102 or 127 mm/sec (Select 2”, 3”, 4” or 5” sec) Resolution: 8 dots/mm (203 dpi)
Media Specifications Roll: 152 m (6000” linear) Roll Dimensions: 213mm (8.38”) Width: 76 to 170 mm (3 to 6.7”) Thickness: .08 to .3 mm (0.003 to 0.012”) Core size: 76 mm (3”) Ribbon Specifications- Roll: 152m (6000” linear) Widths: 77, 104, 137, & 170 mm (3”, 4.1”, 5.4”, & 6.7”)
Standard Features Self-strip with full roll liner takeup Digital thermal compensation – dot-by-dot – electronics for excellent print quality, even for rotated bar codes Industrial design with enclosed label supply 128K NVRAM for permanent storage of downloaded fonts, graphics, and label formats
Fonts and Graphics 21 resident bit-mapped fonts (includes OCR-A and OCR-B) Outline font Supports user-defined fonts and graphics
Language IPL2™ (Intermec Printer Language 2) Backward Compatibility with 86XX
__($mfg->name) EasyCoder 3600 Connectivity
Serial Communications Rate: 1,200 to 19,200 bps Flow Control: XON/XOFF, ready/busy Asynchronous: RS-232-C, RS-422, RS-485
Software
Character Sets French, German, ISO 256 character, Italian, Kanji/Katakana (optional), Norwegian/Danish, Spanish, Swedish/Finnish, Swiss, UK ASCII, USA ASCII
Power Supply 100, 115, 200 and 230 V AC +10%; 50 Hz to 60 Hz
Environment Operating Temperature: 4º to 40ºC (41º to 104ºF) Storage Temperature: 0º to 70ºC (32º to 120ºF) Humidity: Non-condensing (10 to 90%)
Bar code Symbologies Code 2 of 5, Code 11, Code 39, Code 93, Code 128, Codabar, HIBC, Interleaved 2 of 5, Postnet, UPC/EAN, JIS-ITF 2D: Code One, Code 16K, Code 49, DataMatrix, MaxiCode, PDF417
Standards Supported – Partial Listing AIAG Primary Metals; AIAB B-10; EIA (shipping container); LOGMARS; MITL; ODETTE; TCIF (shipping label); UCC/EAN 128 Serial Shipping Container; UPC/EAN Shipping Container
Regulatory Approvals CSA certified (C22.2 No. 950-M89) 115V; ICES-003 Class B 115V; EC EN 55022 (CISPR22) Class B; 100V, 200V, 230V; FCC Part 15, Class B 115V; FTZ VFG 243/1992; TÜV GS licensed; (IEC 950 & EN 60950) 230V; UL® listed (1950) 100V, 115V, 200V; Compliant with all relevant EU directives.
__($mfg->name) EasyCoder 3600 Options Memory expansion to 512K NVRAM; Bitmap and outline Kanji/Katakana
