The Intermec 4440 has been discontinued. No direct replacement is available.
Please contact us for a suitable substitute.
|Information:||Specifications | Ask a question ||
|Accessories:||Accessories/Options | Bar code Software | Intermec 4440 Service Contract ||
|Supplies:||Intermec 4440 Label | Intermec 4440 Ribbon | Intermec Print head ||
Get money back on a new Intermec Printer!
Program running through June 30, 2013
Learn more »
|4440E01500400||4440, Thermal transfer Label, Ticket & Tag printer, 406 dpi, 4.4 inch Print width, 8 ips Print speed, 1MB RAM, 128KB Flash, Serial and Parallel interfaces, 115 VAC with US cord and EasyLAN Wireless 802.11b w-WEP-FCC, Color: Dark gray||Check Availability||Call for Details|
|4440E01420400||4440, Thermal transfer, 406 dpi, 8 ips, 4.5" print width, parallel, serial & Ethernet interfaces, 8MB DRAM, 128KB flash. Includes US power cord. Order cables separately. See accessories.||Check Availability||Call for Details|
|4440E01400401||4440, Thermal transfer, 406 dpi, 8 ips, 4.5" print width, EasyLAN 10i Internal Ethernet interface, 1MB DRAM, 128KB flash. Includes US power cord & Self-Strip and Full Roll Batch Take-Up. Color: Dark gray. Order cables separately. See accessories.||Check Availability||Call for Details|
|4440E01400400||4440, Thermal transfer, 406 dpi, 8 ips, 4.4" print width, parallel, serial & Ethernet interfaces, 1MB DRAM, 128KB flash. Includes US power cord. Order cables separately. See accessories.||Check Availability||Call for Details|
|4440E01000402||4440, Thermal transfer, 406 dpi, 8 ips, 4.5" print width, parallel & serial interfaces, 1MB DRAM, 128KB flash and cutter. Includes US power cord. Order cables separately. See accessories.||Check Availability||Call for Details|
|4440E01000401||4440, Thermal transfer, 115 VAC Power supply with US Cord, Cover over I-O Slot, 1MB DRAM, 128KB Flash, 406 dpi, Self-Strip and Full Roll Batch Take-Up. Color: Dark gray.||Check Availability||Call for Details|
|4440E01000400||4440, Thermal transfer, 406 dpi, 8 ips, 4.5" print width, parallel & serial interfaces, 1MB DRAM, 128KB flash. Includes US power cord. Order cables separately. See accessories.||Check Availability||Call for Details|

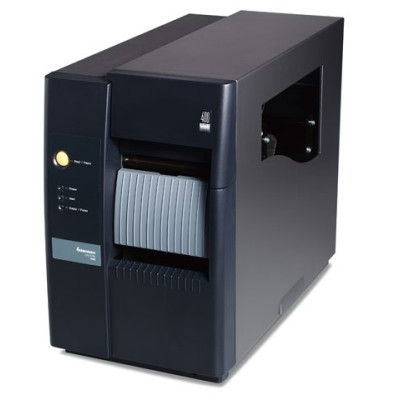

Intermec 4440 Label, Ticket & Tag Printer
The EasyCoder 4440 is a 400 dpi, high capacity industrial strength printer based on the field proven 4420. The 400 dpi print resolution makes the 4440 ideal for applications requiring exceptional print quality, such as 2D bar codes, small text, graphic images and small linear bar codes, The new industrial metallic gray color fits into a wide variety of application settings. The 4440 features a ten inch per second print speed. The design allows for a full 8” diameter roll of media and 450 m (18,000”) ribbon to maximize operator productivity. When equipped with the optional internal self-strip and full roll batch take-up the 4440 can print and rewind a full 8” diameter media roll.
The Intermec 4440 offers a variety of connectivity features and options to suit your particular environment. The 4440 printer comes standard with bi-directional parallel and high-speed RS-232 communication interfaces. The optional internal Ethernet adapter provides high throughput and network management without the complexity, space requirements and fragility of external print servers. A heavy-duty cutter with tray option is also available.
Intermec LabelShop™ START design and print software and InterDriver™ Windows printer drivers are included, free of charge, with every printer.
With robust performance, fast throughput and rugged steel construction, the Intermec 4440 is built to take it in harsh, industrial, manufacturing, distribution and warehouse environments.
Applications Direct Thermal and Thermal Transfer Printer for self-adhesive label, ticket and tag applications. Self-strip, full internal rewind and cutter optional.
Physical Characteristics Depth: 43.82 cm (17.25”) Height: 41.91 cm (16.5”) Width: 24.77 cm (9.75”) Weight: 19.35 kg (43 lbs.)
Print Specifications Thermal Transfer and Direct Thermal Printing Selectable Print Speeds: 50.8 mm (2 ips) to 254 mm (10 ips) 10x centimeters/inches per second Resolution: 16 dots per mm (406 dots per inch) Maximum Width: 112 mm (4.4”) Maximum Length: Unlimited Element: 0.062 mm (0.00246/inch)
Media Specifications Style: Roll-feed, die-cut, continuous or fanfold labels, tags, or tickets. Type: Plain paper thermal transfer or thermal sensitive papers Maximum Liner Width: 114 mm (4.5”) Minimum Liner Width: 19.1 mm (.75”) Maximum Media Length: 1220 mm (48”) Minimum Media Length: 12.7 mm (0.5”) Thickness: .08 mm to .3 mm (.0003 to .012”) Supply Roll Capacity: 152.4 m (6000” linear)
Ribbon Specifications Type: Wax, wax/resin, resin Standard Width: 5.38 cm (2.12”), 7.62 cm (3.0”), 10.41 cm (4.1”), 11.43 cm (4.5”) Length: 457.2 m (18,000”)
Font Specifications 21 resident bit-mapped fonts (includes OCR-A and OCR-B), 3 resident outline fonts, supports user-defined fonts and graphics, supports True Type fonts.
Language IPL3™ (Intermec Printer Language 3) Backward Compatibility with 86XX and IPL2™
Connectivity Serial interface standard IEEE 1284 Parallel standard Internal Ethernet interface optional Internal IBM Twinax or Coax interface optional
Software LabelShop™ START label design and print software Intermec InterDriver™ standard, Windows 3.x, 9x, NT 4.0/5.0, Windows 2000 Intermec ActiveX® controls standard, Windows 9x, NT 4.0/5.0, Windows 2000 PrintSet™ printer configuration utility, Windows 3.x, 9x, NT 4.0/5.0, Windows 2000 NetPilot™ + Thin Wizard™ network configuration utility (with optional Ethernet), Windows 9x, NT 4.0/5.0
Character Sets Unicode, all single byte codepage, all double byte codepage Code page 850, French, German, ISO 256 character, Italian, Kanji/Katakana (optional), Norwegian/Danish, Spanish, Swedish/Finnish, Swiss, UK ASCII, USA ASCII
Power Supply 100, 115, 200 and 230V AC, 50Hz to 60Hz
Environment Operating Temperature: 4º to 40ºC (40º to 104ºF) Storage Temperature: 0º to 70ºC (32º to 120ºF) Humidity: 10 to 90% (non condensing) Ventilation: Free air
Bar code Symbologies Code 2 of 5, Codabar, Code 11, Code 39, Code 93, Code 128, HIBC, Interleaved 2 of 5, Postnet, UPC/EAN, JIS-ITF 2D: Code One, Code 16K, Code 49, DataMatrix, MaxiCode, PDF417, QR Code, Micro PDF
Standards Supported UPC/EAN Shipping Container; UCC/EAN 128 Serial Shipping Container; MH10.8 Shipping Label; AIAG (shipping parts label); LOGMARS; POSTNET; ISBT 128; GM1724
Regulatory Approvals Complies with FCC Part 15, Class A; CISPR 22 Class B; ICES-003 Class B; UL, CSA & TUV-GS agency approved; CE, NOM & C-TIC
Intermec 4440 Options Cutter/tray; internal Ethernet; Self-Strip and rewind; Twinax or Coax; DRAM image expansion 8 MB; Flash storage expansion 16 MB; Kanji/Katakana fonts
