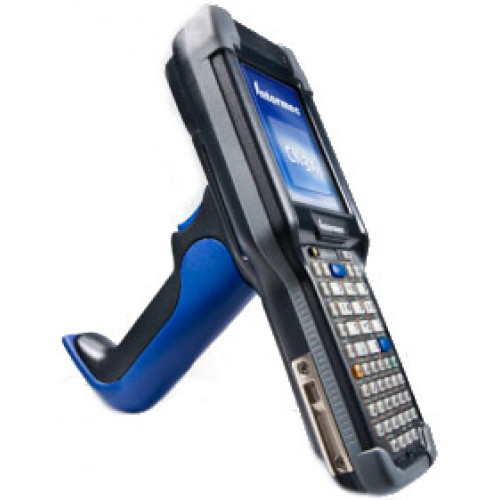

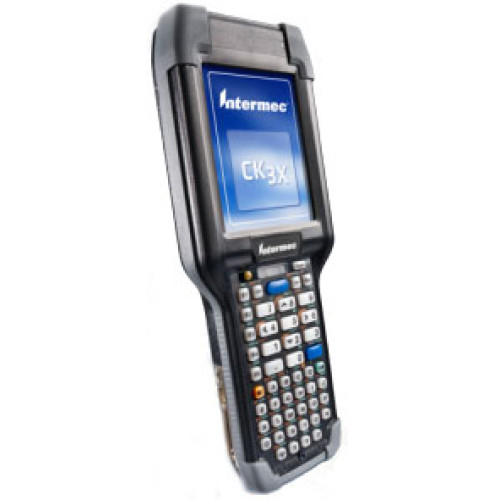

Intermec CK3X Hand Held Computer

The Intermec CK3X comes with a choice of integrated area imagers for standard range or near/far range scanning. These imagers provide unsurpassed scanning performance on 1D and 2D bar codes and are particularly well-suited for reading poor quality and damaged codes. Support for omni-directional scanning and very high motion tolerance allows workers to capture an accurate scan and quickly move to the next task.

Model

Operating System ?

Style ?

Network Connectivity ?

Scanner Type ?

Data Collection Type ?

RAM Memory

CK3X Options
Part # DescriptionAvailabilityPriceOrder
CK3XAA4K000W4400 CK3X, Wi-Fi (802.11a/b/g/n), 2D Imager, Windows Embedded 6.5, 256MB RAM/1GB Flash, Alphanumeric keypad, Bluetooth. Includes battery and ICP application software. Interface cables and charging cradle sold separately. Ships Free Today $1,865.75
Retail $2195
Save 15%
CK3XAA4M000W4100 CK3X, Wi-Fi (802.11a/b/g/n), Near-Far 2D Imager, Windows Embedded 6.5, 256MB RAM/1GB Flash, Alphanumeric Keypad, Bluetooth. Includes battery. Interface cables and charging cradle sold separately. Ships Free Today $2,204.05
Retail $2593
Save 14%
CK3XAB4K000W4100 CK3X, Wi-Fi (802.11a/b/g/n), 2D Imager, Windows Embedded 6.5, 256MB RAM/1GB Flash, Numeric Keypad, Bluetooth. Includes battery. Interface cables and charging cradle sold separately. Ships Free Today $1,707.65
Retail $2009
Save 14%
CK3XAB4K000W4400 CK3X, Wi-Fi (802.11a/b/g/n), 2D Imager, Windows Embedded 6.5, 256MB RAM/1GB Flash, Numeric Keypad, Bluetooth. Includes battery and ICP application software. Interface cables and charging cradle sold separately. Ships Free Today $1,865.75
Retail $2195
Save 15%
CK3XAA4K000W4100 CK3X, Wi-Fi (802.11a/b/g/n), 2D Imager, Windows Embedded 6.5, 256MB RAM/1GB Flash, Alphanumeric keypad, Bluetooth. Includes battery. Interface cables and charging cradle sold separately. Ships Free Today $1,707.65
Retail $2009
Save 14%
CK3XAA4M000W4400 CK3X, Wi-Fi (802.11a/b/g/n), Near-Far 2D Imager, Windows Embedded 6.5, 256MB RAM/1GB Flash, Alphanumeric Keypad, Bluetooth. Includes battery and ICP application software. Interface cables and charging cradle sold separately. Ships Free Today $2,362.15
Retail $2779
Save 14%
CK3XAA4M000W4410 CK3X Non-Incendive, Wi-Fi (802.11a/b/g/n), Near-Far 2D Imager, Windows Embedded 6.5, 256MB RAM/1GB Flash, Alphanumeric keypad, Non-Incedive, Bluetooth. Includes battery and ICP application software. Interface cables and charging cradle sold separately. Ships Free Today $2,714.90
Retail $3194
Save 14%
CK3XAB4M000W4100 CK3X, Wi-Fi (802.11a/b/g/n), Near-Far 2D Imager, Windows Embedded 6.5, 256MB RAM/1GB Flash, Numeric Keypad, Bluetooth. Includes battery. Interface cables and charging cradle sold separately. Ships Free Today $2,204.05
Retail $2593
Save 14%
CK3XAB4M000W4400 CK3X, Wi-Fi (802.11a/b/g/n), Near-Far 2D Imager, Windows Embedded 6.5, 256MB RAM/1GB Flash, Numeric Keypad, Bluetooth. Includes battery and ICP application software. Interface cables and charging cradle sold separately. Ships Free Today $2,362.15
Retail $2779
Save 14%
CK3XAA4K000W4110 CK3X Non-Incendive, Wi-Fi (802.11a/b/g/n), 2D Imager, Windows Embedded 6.5, 256MB RAM/1GB Flash, Alphanumeric keypad, Non-Incedive, Bluetooth. Includes battery. Interface cables and charging cradle sold separately. Ships Free Today $2,039.15
Retail $2399
Save 14%
CK3XAA4K000W4410 CK3X Non-Incendive, Wi-Fi (802.11a/b/g/n), 2D Imager, Windows Embedded 6.5, 256MB RAM/1GB Flash, Alphanumeric keypad, Non-Incedive, Bluetooth. Includes battery and ICP application software. Interface cables and charging cradle sold separately. Ships Free Today $2,203.20
Retail $2592
Save 15%
CK3XAA4M000W4110 CK3X Non-Incendive, Wi-Fi (802.11a/b/g/n), Near-Far 2D Imager, Windows Embedded 6.5, 256MB RAM/1GB Flash, Alphanumeric keypad, Non-Incedive, Bluetooth. Includes battery. Interface cables and charging cradle sold separately. Ships Free Today $2,552.55
Retail $3003
Save 14%
CK3XAB4K000W4110 CK3X Non-Incendive, Wi-Fi (802.11a/b/g/n), 2D Imager, Windows Embedded 6.5, 256MB RAM/1GB Flash, Numeric Keypad, Non-Incendive, Bluetooth. Includes battery. Interface cables and charging cradle sold separately. Ships Free Today $2,039.15
Retail $2399
Save 14%
CK3XAB4K000W4410 CK3X Non-Incendive, Wi-Fi (802.11a/b/g/n), 2D Imager, Windows Embedded 6.5, 256MB RAM/1GB Flash, Numeric Keypad, Non-Incendive, Bluetooth. Includes battery. Interface cables and charging cradle sold separately. Ships Free Today $2,203.20
Retail $2592
Save 15%
CK3XAB4M000W4110 CK3X Non-Incendive, Wi-Fi (802.11a/b/g/n), Near-Far 2D Imager, Windows Embedded 6.5, 256MB RAM/1GB Flash, Numeric Keypad, Non-Incendive, Bluetooth. Includes battery. Interface cables and charging cradle sold separately. Ships Free Today $2,552.55
Retail $3003
Save 14%
CK3XAB4M000W4410 CK3X Non-Incendive, Wi-Fi (802.11a/b/g/n), Near-Far 2D Imager, Windows Embedded 6.5, 256MB RAM/1GB Flash, Numeric Keypad, Non-Incendive, Bluetooth. Includes battery and ICP application software. Interface cables and charging cradle sold separately. Ships Free Today $2,714.90
Retail $3194
Save 14%
CK3XAACM000W4400 CK3X, CHINESE VERSION. Wi-Fi (802.11a/b/g/n), Near-Far 2D Imager, Windows Embedded 6.5, 256MB RAM/1GB Flash, Chinese Alphanumeric Keypad, Bluetooth. Includes battery and ICP application software. Interface cables and charging cradle sold separately. Ships Free Today $2,443.75
CK3XAACM000W4100 AlphaNum, CH, EX25, WLAN, WEH-P, L P, SS Ships Free Today $2,133.50

Intermec CK3X Details

Accessories

Supports most CK3 charging and docking accessories as well as FlexDock modular docking system, vehicle dock and holder, snap on adaptors and removable scan handle.

Display

• 8.9 cm (3.5 in) Transmissive QVGA
• 240 x 320 pixels
• 65,536 (16 bit RGB) Colors
• High-Durability Touch Screen
• LED Backlight

Environment

Drop Survival: 1.5 m (5 ft.) to concrete per MILSTD 810G across operating temperatures
Tumble Specification: 1,000 (1.0 m) tumbles per IEC 60068-2-32 specification
Electrostatic Discharge: +/- 15 kV air discharge, +/- 8 kV direct discharge
Humidity: Non-condensing, 95%
Operating Temperature: -10°C to +50°C (+14°F to +122°F)
Charging Temperature: +5°C to +35°C (+41°F to +95°F)
Storage Temperature: -20°C to +70°C (-4°F to +158°F)
Rain and Dust Resistance: IP54, category 1

Keypad

Both keypad options feature backlit hard keycaps with laser-etched legends

Memory and Storage

Flash ROM: 1GB Flash
Memory/Storage Extensions: Customer-accessible micro-SD slot for removable memory cards up to 32GB
RAM Memory: 256MB RAM

Microprocessor

Texas Instruments 1GHz multi-engine processor architecture

Operating System

Microsoft Windows Embedded Handheld built on Windows 6.5.3 technology with Intermec HTML5 Browser (available via download)

Physical Characteristics

Length: 21.6 cm (8.53 in)
Width:
8.3 cm (3.29 in)
6.1 cm (2.4 in) - grip area
Depth: 3.6 cm (1.42 in)
Weight: 499 g (17.6 oz) with 5.1Ah battery

Power

Battery Type/Supply:
Battery Pack: Removable, rechargeable
• Included - User removable, rechargeable Lithium-Ion; 3.7V, 5100 mAh (18.5 Watt-hours)
• Optional - Removable, rechargeable Lithium-Ion; 3.7V, 5200 mAh (18.5 Watt-hours) Smart Pack
• Optional - Removable, rechargeable Lithium-Ion; 3.7V, 2000 mAh (7.4 Watt-hours)

Scanning Performance

Scan Engine Options:
EA30 high performance motion-tolerant 2D Imager; (up to 500in/s) white LED illumination; red laser aimer and framer optimized for all lighting conditions. Capable of scanning all common 1D and 2D barcodes; 1D as small as 4 mil; 2D as small as 6.6 mils. Refer to User's Manual for depth of field performance.

EX25 near/far 2D Imager: Capable of scanning 1D and 2D barcodes from 15.2 cm to 15.2 m (6 in to 50 ft). Refer to User's Manual for depth of field performance.

Communications Interface

USB – Full Speed 2.0 OTG©, USB – Full Speed 2.0 Client©
Wireless:
Wireless LAN: IEEE®802.11 a/b/g/n Dual Band WLAN
Security: WiFi Certified for WPA and WPA2
Authentication: 802.1x
Cisco Compatibility: CCXv4
Encryption: WEP (64 or 128 bit), AES, TKIP

Wireless PAN: Integrated Bluetooth® Class II, Version 2.1+EDR
Operating Channels: 0 to 78 (2402-2480 MHz)
Data Rates: 1, 2, 3 Mbps
Antenna: Internal

The Intermec CK3X is also known as the Intermec Technologies CK3X .
