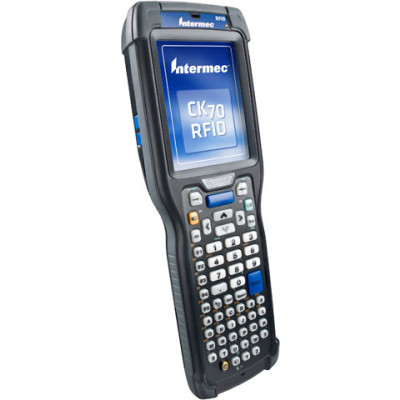

Intermec CK70 RFID RFID Reader

The CK70 RFID mobile computers feature the perfect balance of read performance, ruggedness, battery life and ergonomics to deliver optimal worker productivity in demanding environments. The CK70 RFID features the ability to read tags at a distance of 3m (10 ft) or more without the bulk and weight of an external antenna. The highest degree of performance without sacrificing convenience.

Frequency ?

Style ?

Operating System ?

Keypad

Scanner Type ?

CK70 RFID Options
Part # DescriptionAvailabilityPriceOrder
CK70AA3KN14W1R00 CK70 RFID, 2D Imager, Alphanumeric Keypad, No Camera, RFID, Windows Embedded Handheld 6.5, 1GHz processor, 512MB RAM/1GB ROM. Does not include necessary interface cables. Ships Today $3,418.70
Retail $4022
Save 15%
CK70AB3KN14W1R00 CK70 RFID, 2D Imager, Large Alpha Keypad, No Camera, RFID, Windows Embedded Handheld 6.5, Bluetooth/Wi-Fi (802.11a/b/g/n) interfaces, 1GHz processor, 512MB RAM/1GB ROM. Does not include necessary interface cables. Ships in 24-48 Hours $3,536.85
Retail $4161
Save 15%
CK70AA3KC14W1R00 CK70 RFID, 2D Imager, Alphanumeric Keypad, Camera, RFID, Windows Embedded Handheld Pro, Bluetooth/Wi-Fi (802.11a/b/g/n) interfaces, 1GHz processor, 512MB RAM/1GB ROM. Does not include necessary interface cables. Ships in 24-48 Hours $3,628.65
Retail $4269
Save 14%
CK70AA3KC14W1R10 CK70 RFID Non-Incendive, Non-Incendive, 2D Imager, Alphanumeric Keypad, Camera, RFID, Windows Embedded Handheld Pro, 1GHz processor, 512MB RAM/1GB ROM. Does not include necessary interface cables. Ships in 24-48 Hours $3,899.80
Retail $4588
Save 14%
CK70AA3KN14W1R10 CK70 RFID Non-Incendive, NON INCENDIVE MOBILE COMPUTER, ALPHANUMERIC KEYPAD, EA30 2D IMAGER, RFID-FCC, US AND CA, WINDOWS EMBEDDED, SMART SYSTEMS, NO CAMERA Ships in 24-48 Hours $3,809.70
CK70AB3KC14W1R00 CK70 RFID, LARGE ALPHA KEYPAD, EA30 2D IMAGER, RFID-FCC, US AND CA, WINDOWS EMBEDDED, SMART SYSTEMS, CAMERA Ships in 24-48 Hours $3,628.65
CK70AB3KC14W1R10 CK70 RFID Non-Incendive, NON INCENDIVE MOBILE COMPUTER, LARGE ALPHA KEYPAD, EA30 2D IMAGER, RFID-FCC, US AND CA, WINDOWS EMBEDDED, SMART SYSTEMS, CAMERA Ships in 24-48 Hours $3,899.80
CK70AB3KN14W1R10 CK70 RFID Non-Incendive, NON INCENDIVE MOBILE COMPUTER, LARGE ALPHA KEYPAD, EA30 2D IMAGER, RFID-FCC, US AND CA, WINDOWS EMBEDDED, SMART SYSTEMS, NO CAMERA Ships in 24-48 Hours $3,809.70
CK70AA5KD02W1R00 CK70 RFID, High Performance 2D Imager, RFID Reader - European, Camera, AlphaNumeric Keypad, Windows Embedded Handheld Ships in 24-48 Hours $3,201.75
Retail $4269
Save 25%
CK70AA5KD14W1R00 CK70 RFID, High Performance 2D Imager, RFID Reader - US, Camera, AlphaNumeric Keypad, Windows Embedded Handheld. Ships in 24-48 Hours $3,201.75
Retail $4269
Save 25%

Intermec CK70 RFID Details

Physical Characteristics

Length:
CN70 RFID: 16.9 cm (6.65 in)
CN70e RFID: 19.5 cm (7.66 in)
CK70 RFID: 23.7 cm (9.33 in)
Width:
CN70 RFID: 8.0 cm (3.15 in)
CN70e RFID: 8.0 cm (3.15 in)
CK70 RFID: 8.0 cm (3.16 in)
Depth:
CN70 RFID: 3.4 cm (1.34 in)
CN70e RFID: 3.4 cm (1.34 in)
CK70 RFID: 4.3 cm (1.69 in)
Weight:
CN70 RFID: 450 g (15.9 oz) with battery
CN70e RFID: 491 g (17.3 oz) with battery
CK70 RFID: 562 g (19 oz) with battery

Environment

Operating Temperature: -20° C to +60° C* (-4F° F to +140° F) - Max Ambient: 50° C T6
Storage Temperature: -30° C to +70° C (-22° F to +158° F)
Charging Temperature: +5° C to +35° C (41° F to 95° F)
Relative Humidity: Non-condensing, 95%
Rain and Dust Resistance: IP67
Drop Spec: 2.4m (8 ft.) to concrete per MILSTD 810G; 1.8m (6 ft.) to concrete across operating temperature range per MIL-STD 810G; 2,000 (1m) tumbles per IEC 60068-2-32 specification
Electrostatic Discharge: +/- 15 kV air discharge, +/- 8 kV direct discharge

Operating System

Microsoft Windows Embedded Handheld built on Windows 6.5.3 technology, Getting started information: www.windowsmobile.com/getstarted

Microprocessor

Texas Instruments 1GHz OMAP3 multi-engine processor architecture

Memory and Storage

RAM Memory: 512 MB RAM
1 GB Flash
Customer-accessible micro-SD slot for removable memory cards up to 32 GB

Display

• 8.9 cm (3.5 in) Transmissive VGA
• 480 x 640 pixels
• High-Durability Touch Screen
• 65,536 (16bit RGB) Colors
• LED Backlight
• Ambient Light Sensor

Communications Interface

USB – Full Speed 2.0 Host©
USB – Full Speed 2.0 Client©
IrDA

Software

Device Management: Intermec SmartSystems™ support includes ScanNGo provisioning for use alone or with device management software from Intermec ISVs
Device Health Monitoring: Remote access requires SmartSystem Management option
Application Development: Intermec Developer Library www.intermec.com/dev

Interfaces

Wireless: Wireless LAN: IEEE®802.11 a/b/g/n Dual Band WLAN
Security: WiFi Certified for WPA and WPA2, WAPI Certified
Authentication: 802.1x
Cisco Compatibility: CCXv4
Encryption: WEP (64 or 128 bit), AES, TKIP

Wireless PAN: Integrated Bluetooth® Class II, Version 2.1+EDR
Operating channels: 0 to 78 (2402-2480 MHz)
Data Rates: 1, 2, 3 Mbps
Antenna: Internal

Scanning Performance

Scan Engine: EA30 high performance motion tolerant 2D Imager; white LED illumination; red laser aimer optimized for all lighting conditions; 35 degree downward scan angle; capable of scanning all common 1D and 2D barcodes, 1D as small as 5 mil, PDF as small as 6.6 mil, DataMatrix as small as 7.5 mil, and standard UPC codes from distances up to 33 cm (13 in)

The Intermec CK70 RFID is also known as the Intermec Technologies CK70 RFID .
