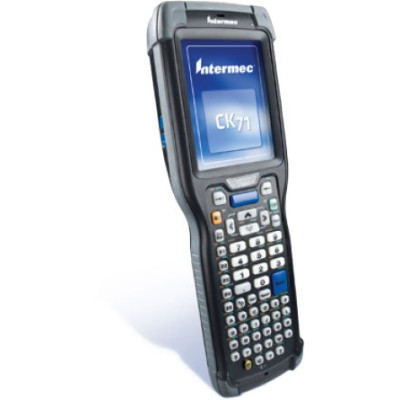

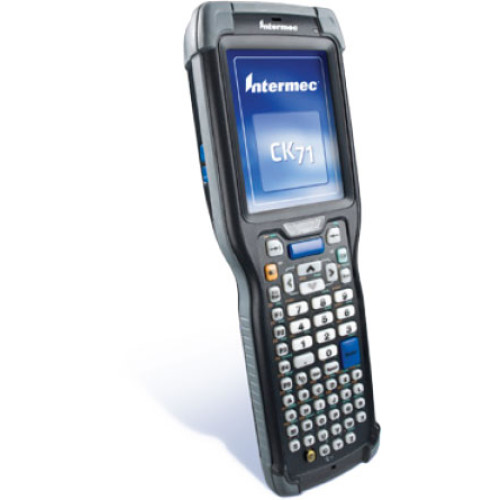

Photo of Intermec CK 71
Intermec logo

Intermec CK 71 Hand Held Computer

The Intermec CK 71 ultra-rugged mobile computer is 31% smaller and lighter than other form factors in its ultra-rugged class, plus it's optimized for warehouse and distribution environments for the perfect balance of ruggedness and duty cycle along with next generation features that focus on enabling flexibility and agility, even in the most extreme conditions. The CK 71 features the industry's first dual-band 802.11n WLAN radio, delivering rock solid performance and consistently fast response times even in areas where you might experience low signal levels or intermittent connections with traditional 802.11a/b/g products. The CK 71 also leverages Intermec's industry-leading near/far area imager, providing the flexibility to read both 1D and 2D bar codes without the need for specialized scanners. For highly dynamic environments, the CK 71 also offers the industry's fastest imaging engine, capable of scanning bar codes moving at up to 12.7 m (500 in) per second, enabling the CK 71 to provide remarkable tolerance to hand or bar code movement.

Model

Operating System ?

CK 71 Options
Part # DescriptionAvailabilityPriceOrder
CK71AA4KN00W1100 CK-71, Alphanumeric Keypad, No Camera, WLAN Only, EA30 2D scan engine, Windows Embedded Handheld Ships Today $2,357.05
Retail $2773
Save 14%
CK71AA4MN00W1100 CK-71, WLAN Only, Alphanumeric Keypad, Near-Far 2D Imager Scanner, 512MB RAM/1GB Flash, Windows Embedded Handheld 6.5, No Camera. Interface cables and charging cradle sold separately. Ships Today $2,629.90
Retail $3094
Save 14%
CK71AB4MN00W1400 CK-71, Numeric Function Keypad, EX25 2D auto-focus scan engine, No Camera, WLAN, Windows Embedded Handheld Pro, Bluetooth Ships Today $2,883.20
Retail $3392
Save 15%
CK71AB4KN00W1400 CK-71, Numeric Function Keypad, EA30 2D Scan Engine, No Camera, WLAN, Windows Embedded Handheld Pro, Bluetooth Ships Today $2,436.10
Retail $2866
Save 15%
CK71AA4MN00W1400 CK-71, WLAN Only, Alphanumeric Keypad, Near-Far 2D Imager Scanner with Auto-Focus, No Camera, Windows Embedded Handheld 6.5, ICP Software. Interface cables and charging cradle sold separately. Ships Today $2,883.20
Retail $3392
Save 15%
CK71AA2KC00W1110 CK-71, Alphanumeric Keypad, EA30 Scan Engine, Camera, WLAN, Windows Embedded Handheld Pro Ships Today $2,545.75
Retail $2995
Save 15%
CK71AA4KC00W1100 CK-71, Alphanumeric Keypad, EA30 2D Scan Engine, Camera, WLAN, Windows Embedded Handheld Pro, Bluetooth Ships in 24-48 Hours $2,366.40
Retail $2784
Save 14%
CK71AA4KN00W1400 CK-71, Alphanumeric Keypad, No camera, EA30 2D scan engine, WLAN only, Windows Embedded Handheld Pro Ships Today $2,436.10
Retail $2866
Save 15%
CK71AA4MC00W1400 CK-71, Alphanumeric Keypad, EX25 2D auto-focus Scan Engine, Camera, WLAN Only, Windows Embedded Handheld Pro, Bluetooth Ships in 24-48 Hours $2,875.55
Retail $3383
Save 14%
CK71AA4DN00W1100 CK-71, Alphanumeric Keypad, EV12 1D Scan Engine, No Camera, WLAN Only, Windows Embedded Handheld Pro, Bluetooth Ships Today $2,190.45
Retail $2577
Save 15%
CK71AA4DN00W1400 CK-71, Alphanumeric Keypad, EV12 1D Scan Engine, No Camera, WLAN Only, Windows Embedded Handheld Pro, Bluetooth, ICP Ships Today $2,348.55
Retail $2763
Save 14%
CK71AA4KC00W1400 CK-71, Alphanumeric Keypad, EA30 2D Scan Engine, Camera, WLAN Only, Windows Embedded Handheld Pro, Bluetooth Ships in 24-48 Hours $2,523.65
Retail $2969
Save 14%
CK71AA4MN00W1410 CK71 Non-Incendive, Alphanumeric Keypad, EX25 2D Auto-Focus Scan Engine, No Camera, WLAN Only, Windows Embedded Handheld Pro, Non-Incendiary, Bluetooth Ships Today $3,156.05
Retail $3713
Save 14%
CK71AA4MN00W4100 CK-71, Alphanumeric Keypad, EX25 2D Auto-Focus Scan Engine, No Camera, WLAN Only, Windows Embedded Handheld Pro, Bluetooth Ships Today $2,720.00
Retail $3200
Save 15%
CK71AA4MN00W1110 CK71 Non-Incendive, Alphanumeric Keypad, EX25 2D Auto-Focus Scan Engine, No Camera, WLAN Only, Windows Embedded Handheld Pro, Non-Incendiary, Bluetooth Ships in 24-48 Hours $2,892.55
Retail $3403
Save 14%
CK71AA4KC00W4100 CK-71, Alphanumeric Keypad, EA30 Scan Engine, Camera, WLAN Only, Windows Embedded Handheld Pro, Bluetooth Ships in 24-48 Hours $2,447.15
Retail $2879
Save 14%
CK71AB4MN00W1100 CK-71, Numeric Function Keypad, EX25 2D Auto-Focus Scan Egine, No Camera, WLAN Only, Windows Embedded Handheld Pro, Bluetooth Ships Today $2,629.90
Retail $3094
Save 14%
CK71AB4KN00W1100 CK-71, Numeric Function Keypad, EA30 2D Scan Engine, No Camera, WLAN Only, Windows Embedded Handheld Pro, Bluetooth Ships Today $2,357.05
Retail $2773
Save 14%
CK71AB4MC00W1100 CK-71, Numeric Function Keypad, EX25 2D Auto-Focus scan engine, Camera, WLAN, Windows Embedded Handheld Pro, Bluetooth Ships in 24-48 Hours $2,717.45
Retail $3197
Save 15%
CK71AA4KN00W1110 CK71 Non-Incendive, Alphanumeric Keypad, 1GHz Processor, Bluetooth, Ea30 2D Imager, No Camera, Wlan, Windows Embedded Handheld 6.5, Smart Systems, Non Incendive Ships in 24-48 Hours $2,720.00
Retail $3200
Save 15%
CK71AA4KN00W1410 CK71 Non-Incendive, Alphanumeric Keypad, EA30 2D scan engine, No Camera, WLAN Only, Windows Embedded Handheld, Bluetooth Ships in 24-48 Hours $2,793.10
Retail $3286
Save 15%
CK71AA4MC00W1110 CK71 Non-Incendive, Alphanumeric Keypad, EX25 2D Auto-Focus Scan Engine, Camera, WLAN Only, Windows Embedded Handheld Pro, Non-Incendiary, Bluetooth Ships in 24-48 Hours $3,082.95
Retail $3627
Save 15%
CK71AA4MC00W1410 CK71 Non-Incendive, Alphanumeric Keypad, EX25 2D Auto Focus Scan Engine, Camera, WLAN Only, Windows Embedded Handheld Pro, Non-Incendiary, Bluetooth Ships in 24-48 Hours $3,247.00
Retail $3820
Save 15%
CK71AA4KN00W4100 CK-71, Alphanumeric Keypad, EA30 Scan Engine, No Camera, WLAN Only, Windows Embedded Handheld Pro, Bluetooth Ships in 24-48 Hours $2,357.05
Retail $2773
Save 14%
CK71AB4KC00W1400 CK71, Numeric Function Keypad, EA30 Scan Engine, Camera, WLAN, Windows Embedded Handheld Pro, Bluetooth Ships Today $2,611.20
Retail $3072
Save 15%
CK71AA4DC00W1400 CK71, Alphanumeric KEYPAD, 1GHz PROCESSOR, Bluetooth, EV12 LINEAR IMAGER, CAMERA, WLAN, WINDOWS EMBEDDED HANDHELD 6.5, SMART SYSTEMS, CLIENT PACK Ships Today $2,520.25
Retail $2965
Save 15%
CK71AA4KC00W1410 CK71, Alphanumeric KEYPAD, 1GHz PROCESSOR, Bluetooth, EA30 2D IMAGER, CAMERA, WLAN, WINDOWS EMBEDDED HANDHELD 6.5, SMART SYSTEMS, CLIENT PACK, NON INCENDIVE Ships in 24-48 Hours $2,698.75
Retail $3175
Save 15%
CK71AA4KN05W41C0 CK71, CHINESE UNIT, 802.11, Bluetooth, ALPHANUMERIC KEYPAD, EA30 2D IMAGER, NO CAMERA, WLAN ONLY, FOR CHINA, LANGUAGE PACK, SMART SYSTEMS FOR CHINA Ships in 24-48 Hours $2,447.15
Retail $2879
Save 14%
CK71AB4MC00W4100 CK71, NUMERIC FUNCTION KEYPAD, 1 GHz PROCESSOR, Bluetooth, EX25 NEAR-FAR 2D IMAGER, CAMERA, WLAN, WINDOWS EMBEDDED 6.5, LANGUAGE PACK - NON ENGLISH, SMART SYSTEMS Ships in 24-48 Hours $2,810.95
Retail $3307
Save 15%
CK71AB4MN00W4100 CK71, NUMERIC FUNCTION KEYPAD, 1 GHz PROCESSOR, Bluetooth, EX25 NEAR-FAR 2D IMAGER, NO CAMERA, WLAN, WINDOWS EMBEDDED 6.5, LANGUAGE PACK - NON ENGLISH, SMART SYSTEMS Ships Today $2,720.00
Retail $3200
Save 15%
CK71AA4MN05W41C0 CK 71, Alphanumeric, 3715 - 1 GHz, Standard Overlay, Near/Far Imager Ships in 24-48 Hours $2,810.95
Retail $3307
Save 15%
CK71AA6EC00W1100 CK 71, Extended Range Imager, AlphaNumeric Keypad, Camera, Windows Embedded Handheld, 1GHz processor, Wi-Fi, Smart Systems. Ships in 24-48 Hours $2,447.15
Retail $2879
Save 14%
CK71AA6EC00W1400 CK 71, Extended Range Imager, AlphaNumeric Keypad, Camera, Windows Embedded Handheld, 1GHz Processor, Wi-Fi, Smart Systems/Intermec client pack. Ships in 24-48 Hours $2,611.20
Retail $3072
Save 15%
CK71AA6EC00W4100 CK 71, Extended Range Imager, AlphaNumeric Keypad, Camera, Windows Embedded Handheld, 1GHz processor, Wi-Fi, Smart Systems. Ships in 24-48 Hours $2,447.15
Retail $2879
Save 14%
CK71AA6EN00W1100 CK 71, Extended Range Imager, AlphaNumeric Keypad, No Camera, Windows Embedded Handheld, 1GHz Processor, Wi-Fi, Smart Systems. Ships Today $2,357.05
Retail $2773
Save 14%
CK71AA6EN00W1400 CK 71, Extended Range Imager, AlphaNumeric Keypad, No Camera, Windows Embedded Handheld, 1GHz processor, Wi-Fi, Smart Systems/Intermec Client Pack. Ships Today $2,520.25
Retail $2965
Save 15%
CK71AA6EN00W4100 CK 71, Extended Range Imager, AlphaNumeric Keypad, No Camera, Windows Embedded Handheld, 1GHz processor, Wi-Fi, Smart Systems. Ships in 24-48 Hours $2,357.05
Retail $2773
Save 14%
CK71AA6EN05W41C0 CK 71, Extended Range Imager, AlphaNumeric Imager, No Camera, Windows Embedded Handheld, 1GHz processr, Wi-Fi, Smart Systems. Ships in 24-48 Hours $2,447.15
Retail $2879
Save 14%
CK71AA6MC00W1100 CK 71, High Performance 2D Imager, AlphaNumeric Keypad, Camera, Windows Embedded Handheld, 1GHz Processor, Wi-Fi, Smart Systems. Ships in 24-48 Hours $2,810.95
Retail $3307
Save 15%
CK71AA6MC00W1400 CK 71, High Performance 2D Imager, AlphaNumeric Keypad, Camera, Windows Embedded Handheld, 1GHz processor, Wi-Fi, Smart Systems. Ships in 24-48 Hours $2,974.15
Retail $3499
Save 14%
CK71AA6MC00W4100 CK 71, High Performance 2D Imager, AlphaNumeric Keypad, Camera, Windows Embedded Handheld, 1GHz processor, Wi-Fi, Smart Systems. Ships in 24-48 Hours $2,810.95
Retail $3307
Save 15%
CK71AA6MN00W1100 CK 71, High Performance 2D Imager, AlphaNumeric Keypad, No Camera, Windows Embedded Handheld, 1GHz Processor, Wi-Fi, Smart Systems. Ships Today $2,720.00
Retail $3200
Save 15%
CK71AA6MN00W1400 CK 71, High Performance 2D Imager, AlphaNumeric Keypad, No Camera, Windows Embedded Handheld, 1GHz Processor, Wi-Fi, Smart Systems/Intermec Client Pack. Ships Today $2,883.20
Retail $3392
Save 15%
CK71AA6MN00W4100 CK 71, High Performance 2D Imager, AlphaNumeric Keypad, No Camera, Windows Embedded Handheld, 1GHz Processor, Wi-Fi, Smart Systems. Ships in 24-48 Hours $2,720.00
Retail $3200
Save 15%
CK71AB6EC00W1100 CK 71, Extended Range Imager, Numeric Keypad, Camera, Windows Embedded Handheld, 1GHz Processor, Wi-Fi, Smart Systems. Ships in 24-48 Hours $2,447.15
Retail $2879
Save 14%
CK71AB6EC00W1400 CK 71, Extended Range Imager, Numeric Keypad, Camera, Windows Embedded Handheld, 1GHz Processor, Wi-Fi, Smart Systems/Intermec Client Pack. Ships in 24-48 Hours $2,611.20
Retail $3072
Save 15%
CK71AB6EC00W4100 CK 71, Extended Range Imager, Numeric Keypad, Camera, Windows Embedded Handheld, 1GHz Processor, Wi-Fi, Smart Systems. Ships in 24-48 Hours $2,447.15
Retail $2879
Save 14%
CK71AB6EN00W1100 CK 71, Extended Range Imager, Numeric Keypad, No Camera, Windows Embedded Handheld, 1GHz Processor, Wi-Fi, Smart Systems. Ships in 24-48 Hours $2,357.05
Retail $2773
Save 14%
CK71AB6EN00W1400 CK 71, Extended Range Imager, Numeric Keypad, No Camera, Windows Embedded Handheld, 1GHz Processor, Wi-Fi, Smart Systems/Intermec Client Pack. Ships Today $2,520.25
Retail $2965
Save 15%
CK71AB6EN00W4100 CK 71, Extended Range Imager, Numeric Keypad, No Camera, Windows Embedded Handheld, 1GHz Processor, Wi-Fi, Smart Systems. Ships in 24-48 Hours $2,357.05
Retail $2773
Save 14%
CK71AB6EN05W41C0 CK 71, Extended Range Imager, Numeric Keypad, No Camera, Windows Embedded handheld, 1GHz Processor, Wi-Fi, Smart Systems. Ships in 24-48 Hours $2,447.15
Retail $2879
Save 14%
CK71AB6MC00W1100 CK 71, High Performance 2D Imager, Numeric Keypad, Camera, Windows Embedded Handheld, 1GHz processor, Wi-Fi, Smart Systems. Ships in 24-48 Hours $2,810.95
Retail $3307
Save 15%
CK71AB6MC00W1400 CK 71, High Performance 2D Imager, Numeric Keypad, Camera, Windows Embedded Handheld, 1GHz Processor, Wi-Fi, Smart Systems. Ships in 24-48 Hours $2,974.15
Retail $3499
Save 14%
CK71AB6MC00W4100 CK 71, High Performance 2D Imager, Numeric Keypad, Camera, Windows Embedded Handheld, 1GHz Processor, Wi-Fi, Smart Systems. Ships in 24-48 Hours $2,810.95
Retail $3307
Save 15%
CK71AB6MN00W1100 CK 71, High Performance 2D Imager, Numeric Keypad, No Camera, Windows Embedded Handheld, 1GHz Processor, Wi-Fi, Smart Systems. Ships in 24-48 Hours $2,720.00
Retail $3200
Save 15%
CK71AB6MN00W1400 CK 71, High Performance 2D Imager, Numeric Keypad, No Camera, Windows Embedded Handheld, 1GHz Processor, Wi-Fi, Smart Systems/Intermec Client Pack. Ships in 24-48 Hours $2,883.20
Retail $3392
Save 15%
CK71AB6MN00W4100 CK 71, High Performance 2D Imager, Numeric Keypad, No Camera, Windows Embedded Handheld, 1GHz Processor, Wi-Fi, Smart Systems. Ships in 24-48 Hours $2,720.00
Retail $3200
Save 15%
CK71AA6MN05W41C0 CK 71, Near/Far 2D Imager, AlphaNumeric Keypad, No Camera, 1GHz processor, Wi-Fi, Windows Embedded Handheld. Ships in 24-48 Hours $2,810.95
Retail $3307
Save 15%

Intermec CK 71 Details

Standard Configuration:
• Integrated Camera Option: 5-Megapixel autofocus color camera with LED flash
• Accelerometer: Embedded accelerometer enables automatic or application-specific
features such as screen rotation or system suspend
• IrDA
• Integrated Bluetooth® Class II, Version 2.1+EDR

Display

• 8.9cm (3.5in) Transmissive VGA
• 480 x 640 pixels
• 65,536 (16 bit RGB) Colors
• High-Durability Touch Screen
• LED Backlight
• Ambient Light Sensor

Environment

Drop Survival: 2.4 m (8ft.) to concrete per MIL-STD 810G, 1.8m (6 ft) to concrete across operating temperature
range per MIL-STD 810G 2,000 (1m) tumbles per IEC 60068-2-32 specification
Electrostatic Discharge: +/- 15 kV air discharge; +/- 8 kV direct discharge
Humidity: Relative Humidity: Non-condensing, 95%
Operating Temperature: -20° C to +60° C (-4° F to +140° F)*
Transitory Exposures to -30C
Recharging Temperature: +5° C to +35° C (41° F to 95° F)
Storage Temperature: -30° C to +70° C (-22° F to +158° F)
Environmental Protection: Rain & Dust Resistance: IP67
Non-Incendive Version: Products in the 70 Series family with NI certification comply with the following:
• Suitable for use in Division 2 locations
• Safety: cULus Listing – ISA/ANSI 12.12.01
• Gases: Class I – Groups A, B, C, D
• Dusts: Class II – Groups F, G
• Fibers and flyings: Class III
• * Max Ambient: 50°C T6

Keypad

• Numeric with function keys
• Alphanumeric
• Both keypad options feature hard keycaps with laser-etched legends.

Memory and Storage

Flash ROM: 1 GB Flash (800 MB available)
Memory/Storage Extensions: Customer-accessible micro-SD slot for removable memory cards up to 32 GB
RAM Memory: 512 MB RAM (384 MB available)

Microprocessor

Multi-Processor Architecture: Texas Instruments® 1 GHz multi-engine processor architecture

Operating System

Microsoft Windows Embedded Handheld 6.5

Physical Characteristics

Height: 5.0 cm (1.98 in)
Length: 23.7 cm (9.33 in)
Width: 8.0 cm (3.16 in); grip area 6.42cm (2.53 in)
Weight: 584 g (19.75 oz) with battery

Power

Battery Capacity: 3.7 V, 5200 mAh
Battery Type/Supply: Li-Ion, removable, rechargeable

Software

Application Development:
Intermec Developer Library: www.intermec.com/dev

Apps and Components:
• VERDEX (Imaging-based data extraction and verification)
• eMDI (Mobile Document Imaging)
• Intermec Client Pack (Terminal Emulator/Browser)

Smart Systems Support:
• Device Management: Intermec SmartSystems™ support includes ScanNGo provisioning
for use alone or with device management software from Intermec ISVs
• Device Health Monitoring: Remote access requires SmartSystem Management option

Scan Engine Options

• EV12 linear Imager with laser-like aimer; Capable of scanning 1D barcodes at standard range.

• EA30 high performance motion-tolerant 2D Imager; white LED illumination; red laser aimer
optimized for all lighting conditions; Capable of scanning all common 1D and 2D barcodes;
1D as small as 5 mil; PDF as small as 6.6 mil; Data Matrix as small as 7.5 mil; and standard UPC
codes from distances up to 33 cm (13 in).

• EX25 near/far 2D Imager; Capable of scanning 1D and 2D barcodes from 15.2 cm to 15.2 m (6 in to 50 ft).

The Intermec CK 71 is also known as the Intermec Technologies CK 71 .
