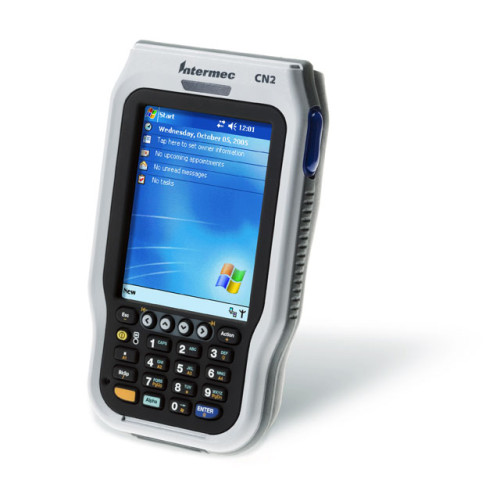

Photo of Intermec CN2B
Intermec logo

Intermec CN2B Hand Held Computer

Intermec CS 40 A newer version of this item is available.
It is replaced by the Intermec CS 40.
The Intermec CN2B is a rugged pen based handheld mobile data collection computer featuring an embedded Microsoft Windows operating system and Intel XScale PXA255 processor. The shirt pocket size, PDA-like form factor, integrated linear imager and radio make the Intermec CN2B the ideal computer for the mobile worker. The CN2B has 64MB/64MB memory capacity, 802.11b/g Radio and Bluetooth capabilities as well as Intermec SmartSystem device management for real-time updates and maintenance.
Questions?
1-888-875-7170
We respond to every email
CN2B Options
Part # DescriptionAvailabilityPriceOrder
CN2BB21T40004806 CN2B, Linear ImagerWM 2003 T. CHNStd S/WNo SDBT Check Availability Call for Details
CN2BB21K40004809 CN2B, Linear ImagerWM 2003 KORStd S/WNo SDBT Check Availability Call for Details
CN2BB21E40004806 CN2B, Linear ImagerWM 2003 WWEStd S/WNo SDBT Check Availability Call for Details
CN2BB21E40004804-KIT CN2B Complete Kit, Includes everything you need: CN2B terminal (Linear ImagerWM 2003 WWEStd S/WNo SDBT), charging/communications cradle, USB cable, US power supply and AC line cord. Check Availability Call for Details
CN2BB21E40004804 CN2B, Linear ImagerWM 2003 WWEStd S/WNo SDBT Check Availability Call for Details
CN2BB21E40004803 CN2B, Linear ImagerWM 2003 WWEStd S/WNo SDBT Check Availability Call for Details
CN2BB21E40004000 CN2B, Linear ImagerWM 2003 WWEStd S/WNo SDBT Check Availability Call for Details
CN2BB21C4000480C CN2B, Linear ImagerWM 2003 S. CHNStd S/WNo SDBT Check Availability Call for Details
CN2BA21E40004804 CN2B, 22 key Numeric Keypad, Standard Linear Imager, Windows Mobile 2003, Bluetooth 802.11b/g FCC Radio Check Availability Call for Details

Accessories

Part # DescriptionAvailabilityPriceOrder
805-638-001 Mounting Kit, CK60/CN2/CN70 Vehicle Dock RoHS. Allows mounting of Vehicle Dock (Part# 225-712-001) in route vehicle. Consists of one 4 3/4" adjustable pivot arm with two 1 1/2" stainless steel balls, steel offset plate and assembly hardware. Due to wide range of possible applications, this kit does not include hardware for securing mount to vehicle. Ships Free Today $73.60
Retail $115
Save 36%
HBM-CN2L Replacement battery for the Intermec CN2. Original part number 203-778-001. 3.7 volts 2400 mAh.
Ships Free in 3-5 Days
$44.00
962-040-004 Vehicle Dock Fuse Block Installation Manual
Ships Free in 3-5 Days
$19.39
871-029-001 Multi-Dock, CN2 Charge Only (Order required power supply 851-082-003/851-082-103 separately)
Ships Free in 3-5 Days
$241.33
Retail $325
Save 25%
852-064-001 Battery Charger, Quad, CN2. Requires power supply (Part# 851-082-003) and North America AC line cord (Part# 1-974028-025) separately.
Ships Free in 3-5 Days
$280.98
825-174-004 Kit, tethered Stylus CN2 (5 pack) (Contains five (5) replacement tethered styli for CN2)
Ships Free in 3-5 Days
$24.85
Retail $27
346-069-105 Screen Protector (10 Each- Requires Cleaner (Part# 346-065-101)) for the CN2
Ships Free in 3-5 Days
$60.29
Retail $91
Save 33%
346-065-101 Screen Cleaner Kit, Pre-Moist Wipes (Includes 24 pre-moistened, non-abrasive, non-streaking 4"x7" wipes) Ships Free Today $35.51
Retail $42
Save 15%
236-095-001 CN2 Cable, Hirose to USB-A, 48" (CN2 Hirose connector to USB Male for a direct connection to a PC.)
Ships Free in 3-5 Days
$46.85
Retail $55
Save 14%
236-090-001 CN2 Cable, Hirose to DB-9M, 48" (CN2 Hirose connector to DB9M for connection to a serial device.)
Ships Free in 3-5 Days
$46.85
Retail $67
Save 30%
225-706-001 Auto Adapter, CN2 Series (CN2 Hirose to Cigarette Lighter, provides power to CN2)
Ships Free in 3-5 Days
$56.75
Retail $85
Save 33%
225-704-001 CN2 Single Modem Dock, Order USB client cable, power supply (Part# 074246-002), power cord and phone cord separately.
Ships Free in 3-5 Days
$144.92
Retail $236
Save 38%
225-703-001 CN2 Single USB Dock (Provides USB Client connectivity and charging of internal CN2 battery. Order USB client cable, power supply 851-089-XX1, and power cord separately.)
Ships Free in 3-5 Days
$100.83
Retail $165
Save 38%
203-766-001 Kit, Stylus CN2 (5 pack) (Contains five (5) replacement non-tethered styli for CN2)
Ships Free in 3-5 Days
$24.85
074490 Holster, CN2 (Holds CN2 without serial adapter or dust cover. Includes integrated belt clip)
Ships Free in 3-5 Days
$37.08
Retail $49
Save 24%
074201-004 CN2, BATTERY, CN2, REPLACEMENT/SPARE
Ships Free in 3-5 Days
$92.84
Retail $126
Save 26%
203-778-001 Battery, Spare, CN2, (Replacement/spare battery pack for CN2) Ships Free Today Call for Details

Intermec CN2B Details

Physical Description:
The CN2B is a rugged pen based handheld mobile data collection computer featuring an embedded Microsoft Windows operating system and an Intel XScale PXA255 processor.
Operating System:
Microsoft Windows CE .NET 4.2
Radio:
Integrated 2.4 GHz IEEE 802.11g and IEEE 802.11b

Physical Characteristics
Length: 147 mm (5.8 in.)
Width: 86 mm (3.4 in.)
Height: 35 mm (1.4 in.)
Weight: 370 grams (11.9 oz.)

Hardware
Microprocessor: Intel Xscale PXA255, 400 MHz
Memory: 128 MB SDRAM and 64 MB non-volatile Flash
Memory/Storage Extension: Secure Digital (SD) card slot, user accessible. Up to 1GB storage capacity.

Barcode Scanning
Scan Engine: Integrated 1D linear imager
Symbologies Read: Supports many popular 1D symbologies including: Codabar, Code 39, Code 128, Interleaved 2 of 5, and limited forms of EAN and UPC.

Power
Battery Type/Supply: Lithium-Ion 2150 mAh, 3.7V with 5 minutes NiMH RAM backup
Battery Life: 8-12 hours, application dependent
Recharging Time: 4 hours

Environment
Operating Temp: 0° to 50° C (32° to 122° F)
Storage Temp: -10° to 50° C (14° to 122° F)
Environmental Protection: IP64 certified
Drop Survival: Multiple 3ft. drops to steel or concrete

Humidity: 5 to 95% non-condensing
Electrostatic Discharge: 6KV contact, 12KV air
Vibration and shock protection: Tested to MIL-PRF-28800F standards

Display
240 x 320 (1/4 VGA) transflective display with 3.5” diagonal supporting 16-bit color depth (65K colors) and resistive panel touch screen. Integrated stylus storage slot.

Keypads
Elastomeric keypad with 18 key numeric layout.

Software
Development Environments: Embedded Visual C++ 4.0, .NET Compact Framework (VB .NET and C#)
Browser support: IE6 compatible
Software Development Kit: Supports device-specific features and barcode scanning
Bundled productivity applications: WordPad, Transcriber and Imager scan demo program

Scan Activation
Left/Right scan buttons, with continuous scan mode.

Integrated Radio
Data Rates: Up to 54 Mbps with 802.11g; 11 Mbps with 802.11b
Antenna: Internal
Standards Compliant: IEEE 802.11g (2.4 GHz - OFDM), IEEE 802.11b (2.4 GHz - DSSS)
Radio Power: 802.11g – 16mW, 802.11b – 30mW
Security: WEP, WPA, 802.1x (EAP-TLS, TTLS, LEAP, PEAP)
Certifications: Wi-Fi, WPA, Cisco Compatible logo indicates compatibility with a Cisco infrastructure

Device Management
SmartSystem Support: A centralized one-to-one device management solution for remote support capability. Also features Wavelink Avalanche for remote maintenance of entire populations of devices. Both solutions allow the user to configure, update or maintain the CN2 mobile computers in real time or batch.

Speaker
Loud (80 dB) programmable “beeper” with adjustable frequency and duration for scanning feedback or audio indicator under program control. The CN2B features an audio jack.

Power
Battery Type/Supply: Lithium-Ion 2150 mAh, 3.7V with 5 minutes NiMH RAM backup
Battery Life: 8-12 hours, application dependent
Recharging Time: 4 hours

Accessories
Communications and charging dock: Single bay communications cradle with USB or V90 modem dock
I/O interface: USB version 1.1 (through dock)
User Accessories: holster, spare battery, hand strap, stylus kit, screen protector kit

Regulatory Approvals
UL and cUL Listed, UL 60950 and UL 1604 and CSA 22.2 No. 157, FCC Part 15, TUV, CE mark

The Intermec CN2B is also known as the Intermec Technologies CN2B .
