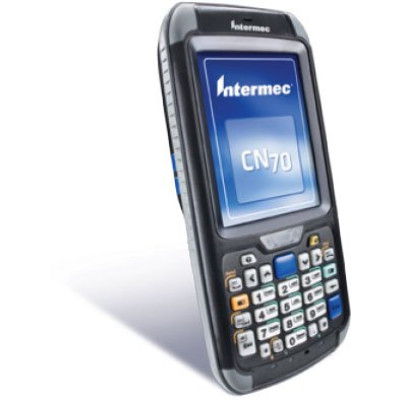

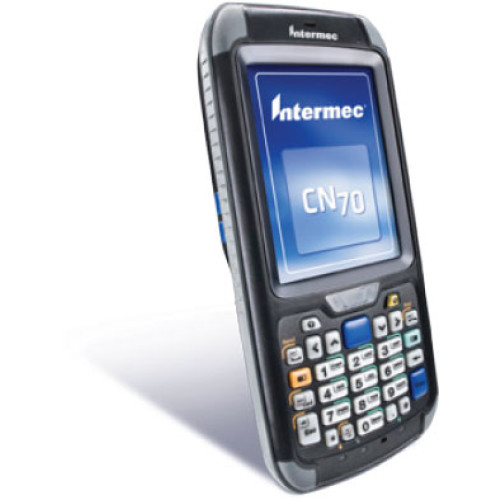

Intermec CN70 Mobile Computer

Intermec CN70 Mobile Computer

The Intermec CN70 is engineered to be at home in demanding environments, where its industry-leading performance, incredible durability and low power consumption can actually reduce overhead. Its superior scanning performance and improved ergonomics lead to increased efficiency, while its extensive communication ability meets the needs of field workers. The no-compromise design of the CN70 includes an all-light visible VGA display, high durability touch panel and indestructible keypad technology to ensure that they stay in workers' hands instead of the repair depot. The CN70 also features a 3.75G WWAN and first-in-market dual-band 802.11n WLAN radios that provide mobile workers with high-performance connectivity inside and outside the four walls. And by combining an ultra-efficient processing architecture with long-life battery technology and state-of-the-art battery health diagnostics, dead batteries and downtime will become a thing of the past.
Discontinued - Need Assistance
See all options

Standard Configuration:
• Integrated Camera Option: 5-Megapixel autofocus color camera with LED flash
• Global Positioning System: 12-channel Integrated GPS; Network-independent autonomous mode; supports assisted operation via WAN
• Accelerometer: Embedded accelerometer enables automatic or application-specific features such as screen rotation or system suspend
• IrDA
• Integrated Bluetooth® Class II, Version 2.1+EDR

Display

• 8.9cm (3.5in)Transmissive VGA
• 480 x 640 pixels
• 65,536 (16 bit RGB) Colors
• High-Durability Touch Screen
• LED Backlight
• Ambient Light Sensor

Environment

Drop Survival: 2.4 m (8ft.) to concrete per MIL-STD 810G, 1.8m (6 ft) to concrete across operating temperature
range per MIL-STD 810G 2,000 (1m) tumbles per IEC 60068-2-32 specification
Electrostatic Discharge: +/- 15 kV air discharge; +/- 8 kV direct discharge
Humidity: Relative Humidity: Non-condensing, 95%
Operating Temperature: -20° C to +60° C (-4° F to +140° F)*
Recharging Temperature: +5° C to +35° C (41° F to 95° F)
Storage Temperature: -30° C to +70° C (-22° F to +158° F)
Environmental Protection: Rain & Dust Resistance: IP67
Non-Incendive Version: Products in the 70 Series family with NI certification comply with the following:
• Suitable for use in Division 2 locations
• Safety: cULus Listing – ISA/ANSI 12.12.01
• Gases: Class I – Groups A, B, C, D
• Dusts: Class II – Groups F, G
• Fibers and flyings: Class III
• * Max Ambient: 50°C T6

Keypad

• Numeric keypad with backlit shifted plane legends
• QWERTY keypad
• All keypad options feature hard keycaps with laser-etched legends.

Memory and Storage

Flash ROM: 1 GB Flash (800 MB available)
Memory/Storage Extensions: Customer-accessible micro-SD slot for removable memory cards up to 32 GB
RAM Memory: 512 MB RAM (384 MB available)

Microprocessor

Multi-Processor Architecture: Texas Instruments® OMAP 1 GHz multi-engine processor architecture

Operating System

Microsoft Windows Embedded Handheld 6.5

Physical Characteristics

Height: 3.4 cm (1.34 in)
Length: 16.9 cm (6.65 in)
Width: 8.0 cm (3.15 in)
Weight: 450 g (15.9 oz) with battery

Power

Battery Capacity: 3.7 V, 4000 mAh
Battery Type/Supply: IEEE 1725 compliant, Li-Ion, removable, rechargeable

Software

Application Development:
Intermec Developer Library: www.intermec.com/dev

Apps and Components:
• VERDEX (Imaging-based data extraction and verification)
• eMDI (Mobile Document Imaging)

Smart Systems Support:
• Device Management: Intermec SmartSystems™ support includes ScanNGo provisioning for use alone or with device management software from Intermec ISVs
• Device Health Monitoring: Remote access requires SmartSystem Management option

Scan Engine Options

EA30 high performance motion-tolerant 2D Imager; white LED illumination; red laser aimer optimized for all lighting conditions; 35 degree downward scan angle; Capable of scanning all common 1D and 2D barcodes; 1D as small as 5 mil; PDF as small as 6.6 mil; Data Matrix as small as 7.5 mil; and standard UPC codes from distances up to 33 cm (13 in).

Extended Details
  1. Intermec CN70 Mobile Computer
    Part #: CN70AN5KDU2W2100 | SKU: INT306399

    CN70, High Performance 2D Imager, Numeric Keypad, Camera, North American UMTS Communication, Windows Embedded Handheld, WWE, Smart Systems.
  2. Intermec CN70 Mobile Computer
    Part #: CN70AN5KDD6W3100 | SKU: INT306397

    CN70, High Performance 2D Imager, Numeric Keypad, Camera, Verizon CDMA Communication, Windows Embedded Handheld, WWE, Smart Systems.
  3. Intermec CN70 Mobile Computer
    Part #: CN70AN5KN00W1100 | SKU: INT306403

    CN70, High Performance 2D Imager, Numeric Keypad, No Camera, Wi-Fi Communication, Windows Embedded Handheld, WWE, Smart Systems.
  4. Intermec CN70 Mobile Computer
    Part #: CN70AN5KDD5W3100 | SKU: INT306396

    CN70, High Performance 2D Imager, Numeric Keypad, Camera, Sprint CDMA Communication, Windows Embedded Handheld, WWE, Smart Systems.
  5. Intermec CN70 Mobile Computer
    Part #: CN70AN5KDU3W2100 | SKU: INT306401

    CN70, High Performance 2D Imager, Numeric Keypad, Camera, European UMTS Communication, Windows Embedded Handheld, WWE, Smart Systems.
  6. Intermec CN70 Mobile Computer
    Part #: CN70AN5KNU6W2100 | SKU: INT405189

    CN70, NUMERIC, EA30 STANDARD RANGE IMAGER, NO CAMERA, 802.11a/b/g/N, Bluetooth, UMTS/HSPA (NA-HAC), GPS, WEH 6.5, WW ENGLISH
  7. Intermec CN70 Mobile Computer
    Part #: CN70AQ5KD14W1R00 | SKU: INT405190

    CN70, QWERTY, EA30, CAMERA, RFID-FCC, WEH-P, WWE, SS/R
  8. Intermec CN70 Mobile Computer
    Part #: CN70AQ5KNU6W2100 | SKU: INT405192

    QWERTY , EA30 STANDARD RANGE IMAGER , NO CAMERA , 802.11 A/B/G/N , BLUETOOTH , UMTS/HSPA (NA-HAC) , GPS , WEH 6.5 , WW ENGLISH
  9. Intermec CN70 Mobile Computer
    Part #: CN70AN5KDU6W2100 | SKU: INT390215

    CN70, NUMERIC, EA30, CAMERA, UMTS/HSPA, GPS, Bluetooth, 802.11a/b/g/N, WINDOW EMBEDDED HANDHELD 6.5
  10. Intermec CN70 Mobile Computer
    Part #: CN70AN3KCF2W6110 | SKU: INT177436

    CN70 RFID Non-Incendive, Num, EA30, Camera, FLXNET, NA, WEH-G, WWE, SS/NI
