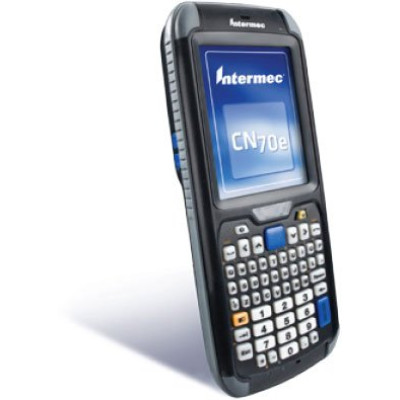

Intermec CN70e RFID RFID Reader

For businesses who want to accomplish in-premise data collection tasks with greater efficiency and accuracy, the no-compromise, fully-integrated CN70e RFID mobile computer provides the perfect balance of ruggedness, duty cycle and ergonomics to deliver optimal worker productivity in demanding environments. No other reader on the market has the same advanced computing capabilities.

Frequency ?

Style ?

Operating System ?

Scanner Type ?

Keypad

Interface

CN70e RFID Options
Part # DescriptionAvailabilityPriceOrder
CN70EN4KN14W1R00 CN70e RFID, RFID Mobile Computer, Numeric Keypad, Ea30 2D Imager, Rfid-Fcc, Us And Ca, Windows Embedded, Smart Systems, No Camera Ships in 24-48 Hours $3,120.75
Retail $4161
Save 25%
CN70EQ4KN14W1R00 CN70e RFID, RFID Mobile Computer, QWERTY Keypad, Ea30 2D Imager, Rfid-Fcc, Us And Ca, Windows Embedded, Smart Systems, No Camera Ships in 24-48 Hours $3,120.75
Retail $4161
Save 25%
CN70EQ4KC14W1R10 CN70e RFID Non-Incendive, Non Incendive, QWERTY Keypad, Ea30 2D Imager, RFID (FCC), US And CA, Windows Embedded, Smart Systems, Camera Ships Today $3,968.65
Retail $4669
Save 14%
CN70EN4KC14W1R00 CN70e RFID, RFID, 2D Imager, Numeric Keypad, Camera, RFID (FCC), US and CA, Windows Embedded Handheld Pro, Smart Systems Ships in 24-48 Hours $3,628.65
Retail $4269
Save 14%
CN70EQ4KC14W1R00 CN70e RFID, RFID, 2D Imager, Camera, QWERTY Keypad, Windows Embedded Handheld Pro, Smart Systems Ships Today $3,507.10
Retail $4126
Save 15%
CN70EN4KC14W1R10 CN70e RFID Non-Incendive, Non Incendive, Numeric Keypad, 2D Imager, RFID (FCC), US And CA, Windows Embedded, Smart Systems, Camera Ships in 24-48 Hours $3,683.05
Retail $4333
Save 14%
CN70EN4KN14W1R10 CN70e RFID Non-Incendive, Non Incendive, Numeric Keypad, 2D Imager, RFID (FCC), US and CA, Windows Embedded Handheld, Smart Systems, No Camera Ships in 24-48 Hours $3,876.85
CN70EQ4KN14W1R10 CN70e RFID Non-Incendive, Non Incendive, QWERTY Keypad, 2D Imager, RFID (FCC), US and CA, Windows Embedded Handheld, Smart Systems, No Camera Ships Today $3,876.85
Retail $4561
Save 15%
CN70EN4KC02W1R00 CN70e RFID, 2D Imager, Numeric Keypad, Camera, RFID (ETSI), Windows Embedded Handheld Pro Ships in 24-48 Hours $3,628.65
Retail $4269
Save 14%
CN70EN4KC39W1R00 CN70e RFID, 2D Imager, Numeric Keypad, Camera, RFID (NZ), Windows Embedded Handheld Pro Ships in 24-48 Hours $3,628.65
Retail $4269
Save 14%
CN70EN7KD02W1R00 CN70e RFID, High Performance 2D Imager, Numeric Keypad, Camera, No Data Communication, RFID - European, Windows Embedded Handheld, WWE, Smart Systems. Ships in 24-48 Hours $3,048.00
Retail $4064
Save 25%
CN70EN7KD14W1R00 CN70e RFID, High Performance 2D Imager, Numeric Keypad, Camera, No Data Communication, RFID - USA, Windows Embedded Handheld, WWE, Smart Systems. Ships in 24-48 Hours $3,201.75
Retail $4269
Save 25%
CN70EN7KN14W1R00 CN70e RFID, High Performance 2D Imager, Numeric Keypad, No Camera, No Data Communication, RFID - USA, Windows Embedded Handheld, WWE, Smart Systems. Ships in 24-48 Hours $3,120.75
Retail $4161
Save 25%
CN70EQ6KD14W1R00 CN70e RFID, High Performance 2D Imager, QWERTY Keypad, Camera, No Data Communication, RFID - USA, Windows Embedded Handheld, WWE, Smart Systems. Ships in 24-48 Hours $3,201.75
Retail $4269
Save 25%
CN70EQ6KN14W1R00 CN70e RFID, High Performance 2D Imager, QWERTY Keypad, No Camera, No Data Communication, RFID - USA, Windows Embedded Handheld, WWE, Smart Systems. Ships in 24-48 Hours $3,120.75
Retail $4161
Save 25%
CN70EQ6KD02W1R00 CN70e RFID, High Performance Imager, QWERTY Keypad, Camera, RFID Reader - European, Windows Embedded Handheld, WWE, SS/R Ships in 24-48 Hours $2,703.00
Retail $3604
Save 25%

Intermec CN70e RFID Details

Physical Characteristics

Length:
CN70 RFID: 16.9 cm (6.65 in)
CN70e RFID: 19.5 cm (7.66 in)
CK70 RFID: 23.7 cm (9.33 in)
Width:
CN70 RFID: 8.0 cm (3.15 in)
CN70e RFID: 8.0 cm (3.15 in)
CK70 RFID: 8.0 cm (3.16 in)
Depth:
CN70 RFID: 3.4 cm (1.34 in)
CN70e RFID: 3.4 cm (1.34 in)
CK70 RFID: 4.3 cm (1.69 in)
Weight:
CN70 RFID: 450 g (15.9 oz) with battery
CN70e RFID: 491 g (17.3 oz) with battery
CK70 RFID: 562 g (19 oz) with battery

Environment

Operating Temperature: -20° C to +60° C* (-4F° F to +140° F) - Max Ambient: 50° C T6
Storage Temperature: -30° C to +70° C (-22° F to +158° F)
Charging Temperature: +5° C to +35° C (41° F to 95° F)
Relative Humidity: Non-condensing, 95%
Rain and Dust Resistance: IP67
Drop Spec: 2.4m (8 ft.) to concrete per MILSTD 810G; 1.8m (6 ft.) to concrete across operating temperature range per MIL-STD 810G; 2,000 (1m) tumbles per IEC 60068-2-32 specification
Electrostatic Discharge: +/- 15 kV air discharge, +/- 8 kV direct discharge

Operating System

Microsoft Windows Embedded Handheld built on Windows 6.5.3 technology, Getting started information: www.windowsmobile.com/getstarted

Microprocessor

Texas Instruments 1GHz OMAP3 multi-engine processor architecture

Memory and Storage

RAM Memory: 512 MB RAM
1 GB Flash
Customer-accessible micro-SD slot for removable memory cards up to 32 GB

Display

• 8.9 cm (3.5 in) Transmissive VGA
• 480 x 640 pixels
• High-Durability Touch Screen
• 65,536 (16bit RGB) Colors
• LED Backlight
• Ambient Light Sensor

Communications Interface

USB – Full Speed 2.0 Host©
USB – Full Speed 2.0 Client©
IrDA

Software

Device Management: Intermec SmartSystems™ support includes ScanNGo provisioning for use alone or with device management software from Intermec ISVs
Device Health Monitoring: Remote access requires SmartSystem Management option
Application Development: Intermec Developer Library www.intermec.com/dev

Interfaces

Wireless: Wireless LAN: IEEE®802.11 a/b/g/n Dual Band WLAN
Security: WiFi Certified for WPA and WPA2, WAPI Certified
Authentication: 802.1x
Cisco Compatibility: CCXv4
Encryption: WEP (64 or 128 bit), AES, TKIP

Wireless PAN: Integrated Bluetooth® Class II, Version 2.1+EDR
Operating channels: 0 to 78 (2402-2480 MHz)
Data Rates: 1, 2, 3 Mbps
Antenna: Internal

Scanning Performance

Scan Engine: EA30 high performance motion tolerant 2D Imager; white LED illumination; red laser aimer optimized for all lighting conditions; 35 degree downward scan angle; capable of scanning all common 1D and 2D barcodes, 1D as small as 5 mil, PDF as small as 6.6 mil, DataMatrix as small as 7.5 mil, and standard UPC codes from distances up to 33 cm (13 in)

The Intermec CN70e RFID is also known as the Intermec Technologies CN70e RFID .
