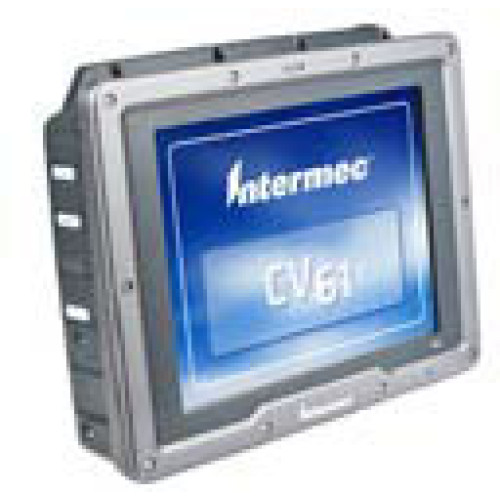

Photo of Intermec CV61
Intermec logo

Intermec CV61 Terminal

Honeywell Thor VM3 A newer version of this item is available.
It is replaced by the Honeywell Thor VM3.
The Intermec CV61 is a workhorse among vehicle mount mobile computers. Sped by a powerful 1.8 GHz Intel Atom processor, the Intermec CV61 features a choice of Windows 7 Professional or Windows XP operating systems. In addition, the Intermec CV61 offers 3GB RAM to support memory-hungry ERP and WMS systems.
Questions?
1-888-875-7170
We respond to every email
CV61 Options
Part # DescriptionAvailabilityPriceOrder
CV61A11XPAN80000 CV61, Display XGA, Touch Screen standard 1G RAM, 40GB SSD, Win XP, WW O See Replacement Call for Details
INT-CV61A22XPAN8000 CV61, A, STD/HT, 2G, XPM40G, 80D Check Availability Call for Details
CV61A237MAN8US00 CV61, HEATED DISPLAY (REQUIRES EXTERNAL DC POWER SUPPLY 203-950-002), 3GB RAM, WIN7, 802.11a/b/g/N, Bluetooth Check Availability Call for Details
CV61A237MAN80010 CV61, HEATED DISPLAY (REQUIRES EXTERNAL DC POWER SUPPLY 203-950-002), 3GB RAM, WIN7, 802.11a/b/g/N, Bluetooth, CLIENT PACK Check Availability Call for Details
CV61A237MAN80000 CV61, Display XGA, Touch Screen Heat 3G RAM, 40GB SSD, Win 7, WW OS Check Availability Call for Details
CV61A22XPAN80010 CV61, HEATED DISPLAY (REQUIRES EXTERNAL DC POWER SUPPLY 203-950-002), 2GB RAM, Windows XP, 802.11a/b/g/N, Bluetooth, CLIENT PACK Check Availability Call for Details
CV61A22XPAN80000 CV61, Display XGA, Touch Screen Heat 2G RAM, 40GB SSD, Win XP, WW O Check Availability Call for Details
CV61A227MAN8US00 CV61, HEATED TOUCH SCREEN, 2GB RAM, 40GB SSD, WINDOWS 7, 802.11, Bluetooth, US Check Availability Call for Details
CV61A227MAN80010 CV61, FIXED VEHICLE MOUNT COMPUTER, DISPLAY XGA, HEATED TOUCH SCREEN, 2GB RAM, 40GB SSD, WINDOWS 7, 802.11, Bluetooth, CLIENT PACK Check Availability Call for Details
CV61A227MAN80000 CV61, Display XGA, Touch Screen Heat 2G RAM, 40GB SSD, Win 7, WW OS Check Availability Call for Details
CV61A21XPAN80000 CV61, Display XGA, Touch Screen Heat, 1G RAM, 40GB SSD, Win XP, WW Check Availability Call for Details
CV61A13XPAN80000 CV61, A, STD, 3G, XPM40G, 80D Check Availability Call for Details
CV61A137MAN8US10 CV61, STANDARD DISPLAY, 3GB RAM, WIN7, 802.11a/b/g/N, Bluetooth, US, CLIENT PACK Check Availability Call for Details
CV61A137MAN8US00 CV61, STANDARD DISPLAY, 3GB RAM, WIN7, 802.11a/b/g/N, Bluetooth, US Check Availability Call for Details
CV61A137MAN80000 CV61, Wi-Fi (802.11a/b/g/n), Fixed Mount Mobile Computer, Display XGA, Windows 7, Standard Touch Screen, 3G RAM/40GB SSD, Bluetooth. Interface cables and charging cradle sold separately. Check Availability Call for Details
CV61A12XPAN80000 CV61, Display XGA, Touch Screen standard 2G RAM, 40GB SSD, Win XP, WW O Check Availability Call for Details
CV61A127MAN8US10 CV61, STANDARD DISPLAY, 2GB RAM, WIN7, 802.11a/b/g/N, Bluetooth, US, CLIENT PACK Check Availability Call for Details
CV61A127MAN8US00 CV61, STANDARD DISPLAY, 2GB RAM, WIN7, 802.11a/b/g/N, Bluetooth, US Check Availability Call for Details
CV61A127MAN80010 CV61, STANDARD DISPLAY, 2GB RAM, WIN7, 802.11a/b/g/N, Bluetooth, CLIENT PACK Check Availability Call for Details
CV61A127MAN80000 CV61, Display XGA, Touch Screen standard 2G RAM, 40GB SSD, Win 7, WW OS Check Availability Call for Details
CV61A11XPAN80010 CV61, STANDARD DISPLAY, 1GB RAM, Windows XP, 802.11a/b/g/N, Bluetooth, CLIENT PACK Check Availability Call for Details

Intermec CV61 Details

Data Collection Scanner Support

•Tethered serial scanner (+5V powered)
•Tethered USB bar code scanner
•Tethered RFID reader
•Bluetooth

Display

30.7 cm (12.1”) XGA 1024x768 LED backlit display
•500 NIT brightness
•Optional touch screen defroster (requires external DC-DC power converter)

Environment

Operating Temperature:
•Standard: -20° to +50°C (-4° to 122°F)
•Extreme cold with optional screen defroster: -30° to +50°C (-22° to 122°F)
Storage Temperature: -30° to +60°C (-22° to +140°F)
Vibration and Shock Protection: Withstands standard material handling vehicle environments. Meets or exceeds MIL STD 810F, composite wheeled vehicles.
Rain and Dust Resistance: IP66
Electrostatic Discharge: +/- 15 kV air discharge, +/- 8 kV direct discharge

Memory and Storage

•Standard 1GB DDR2 for Windows XP
•Standard 2GB DDR2 for Windows 7
•User-upgradeable up to 3GB memory total
Memory/Storage Extensions:
•Mass Storage: User-swappable 40GB Solid State Disk
•Expansion Storage: User-installable expansion slot supports additional SD 2.0 cards up to 32GB

Microprocessor

Intel® Atom D425 1.8GHz

Operating System

Choice of Microsoft Windows® 7 Professional or Windows XP Professional

Physical Characteristics

Height: 27.4 cm (10.8 in)
Width: 34.3 cm (13.5 in)
Depth: 8.4 cm (3.3 in)
Weight: 5.2 kg (11.5 lbs)

Power

Integrated 9-60 VDC isolated power supply
Optional external power converters:
•AC input for 90-240 VAC
•Extended range DC converter for 15-96 VDC
Integrated Backup Battery System
•Field-replaceable, rechargeable Lithium-Ion, 30 minutes life at -20° C

Interfaces

2 USB 2.0 ports with locking breakout cable, 2 RS-232 COM ports with +5V power, CAN-bus SAE J1939 port, Mic/Headset port, Stereo Speaker output, DC power input, WiFi primary antenna port with auto-sensing, RJ45 Gigabit Ethernet port, Legacy PS/2 keyboard input

Software

Device Management:
Intermec SmartSystemsâ„¢ support includes ScanNGo provisioning for use alone or with device management software from Intermec ISVs
Device Health Monitoring:
Onboard diagnostics application; Remote access capability (requires SmartSystem Management option)
Application Development:
Intermec Developer Library www.intermec.com/dev
Host Connectivity:
Optional Intermec Client Pack with Intermec Terminal Emulation (VT220/ANSI, 5250, 3270) and Intermec Lock-Down Industrial Browser

Accessories

Multiple RAM® mount options, screen blanking unit, data and adapter cables, removable antenna kits, bar code scanners (tethered and wireless), printers and media

Keypad

Multiple backlit, 102-key full size and 88-key compact Qwerty keyboard options. Tethered options including USB and PS/2. Optional Bluetooth wireless external keyboard and standalone mounting kit. Available with support for VT220, 3270, 5250 terminal emulation.

The Intermec CV61 is also known as the Intermec Technologies CV61 .
