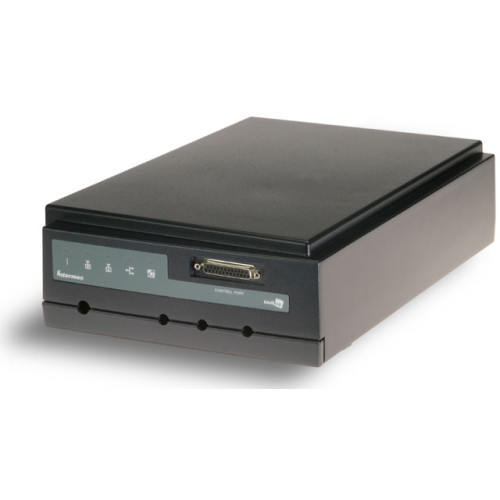

Photo of Intermec IF5 Fixed
Intermec logo

Intermec IF5 Fixed RFID Reader

Intermec IF 61 A newer version of this item is available.
It is replaced by the Intermec IF 61.
The Intermec IF5 Fixed fixed RFID reader can not only read and write RFID information but also uses internal processing to collect, filter and pass on RFID information to external applications via Ethernet or 802.11g wireless connections. This internal processing eliminates the need for specialized servers or other computers at the assembly line, shipping-receiving docks, or anywhere space is at a premium. The IF5 Fixed is factory-configured to operate at 869 MHz (Zone 1), 915 MHz (Zone 2) or 950 MHz (Zone 3), giving multinational enterprises flexibility and consistency.
We respond to every email
IF5 Fixed Options
Part # DescriptionAvailabilityPriceOrder
IF5UD123804A1314 IF5 Fixed, Fixed RFID Reader (802.11g-FCC, Memory Adapter 128MB with WRDI and 915 MHz FCC 1 Watt) Check Availability Call for Details
IF5UD12380400014 IF5 Fixed, Fixed RFID Reader, 802.11g-FCC, No Slot 2 and 915 MHz FCC 1 Watt Check Availability Call for Details
IF5UD123000A1314 IF5 Fixed, Fixed RFID Reader (No Radio, Memory Adapter-128MB with WRDI Software and 915 MHz FCC) Check Availability Call for Details
IF5UD12300000014 IF5 Fixed, UD: RFID Reader, R2, No Camera, No RAD, NOM, 915 FCC Check Availability Call for Details


Part # DescriptionAvailabilityPriceOrder
236-057-001 Cable Assembly (6 feet, DB-25P/DB25S for GPIO Terminal Box) IF5UC
Ships Free in 3-5 Days
Retail $78
Save 26%
203-726-002 General Purpose Input/Output kit
Ships Free in 3-5 Days
Retail $412
Save 38%

Intermec IF5 Fixed Details

Physical Description
The IF5 Fixed fixed RFID reader is an intelligent RFID reader that can be factory configured to operate in RFID frequency bands: 869MHz or 915MHz. In addition to performing both read and write functions, the IF5 Fixed is also capable of running custom applications to filter information from tags, as well as monitor external sensors and control audible and visual indicators.

Physical Characteristics
Length: 35.6 cm (14 in.)
Width: 23.1 cm (9.1 in.)
Height: 9.53 cm (3.75 in.)

Operating Temperature:
-25°C to 70°C (-13° F to 158° F)
Storage Temperature:
-30ºC to 75ºC (-22° F to 167° F)
10% to 90% (Non-condensing)
Enclosure: IP53

Standard Features
Communications Interface options: Ethernet 10/100BaseT or  Wireless 802.11g
Operating System: Open Source Linux version 2.4.23
Input/Output Circuits: Four input (0-40VDC) and four output (0-48VDC .5 amp) circuits, 500ma 12VDC power

Antenna Connections
Four - Reverse SMA, -20dB software controller

110-240 VAC auto ranging, Power over Ethernet for controller (option)
Power Supply is internal and included
Duty Cycle: 100%

RFID Frequency Ranges
869 and 915 MHz

Tag Air Interfaces
Intellitag G1 (Fairchild G1)
ISO 18000-6b (Philips i-code HSL)
Philips Version 1.19
EPCglobal UHF Gen 2

ANSI INCITS 256:2001
Intermec Basic Reader Interface

Connection to Network
Ethernet, 802.11G or 802.3 wired

Device and Software Management:
UC Davis NetSNMP
DHCP client
Telnet server
Intermec ICCE/ICCU (config settings)
IBM Tivoli
IBM WebSphere Everyplace Device Manager
Wavelink Avalanche

User Programmable Internal Controller for "Edge server" or "Middleware" apps
Motorola 240 MHz MPC8245, 16 Mbytes of SDRAM, 4 Mbytes Flash, LINUX OS

802.11g radio, antennas, antenna cables, mounting bracket

ANS INCITS 256:1999 (R2001) - Parts 2, 3.1 & 4.2
ANSI MH10.8.4
ISO/IEC CD18000 Part 4
ISO/IEC WD18000 Part 6

Restrictions On Use
Some approvals and features may vary by country and may change without notice.

The Intermec IF5 Fixed is also known as the Intermec Technologies IF5 Fixed .
