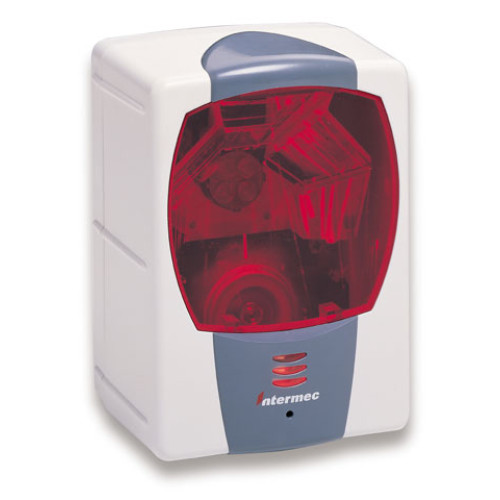

Photo of Intermec MaxiScan 2210
Intermec logo

Intermec MaxiScan 2210 Scanner

The MaxiScan 2210 is an ultra compact, cost-efficient solution for omnidirectional pass through scanning. Its size and performance enables fast hands-free scanning to be integrated into any retail POS station. All units ship with product documentation.
MaxiScan 2210 Options
Part # DescriptionAvailabilityPriceOrder
3-420057-00 M2210, Kit, Keyboard wedge interface. Kit includes PS/2/AT Y-cable. Check Availability Call for Details
3-420052-00 M2210, Kit, RS-232 interface. Kit includes DCE sub D 9-pin cable. Order power supply/AC adapter separately. See accessories. Check Availability Call for Details

Intermec MaxiScan 2210 Details

<<$mfg->name>> MaxiScan 2210 Scanner

  • Ultra compact omni-directional fixed bar code scanner
  • Full 20 line scan pattern 20cm (8")adjustable depth of field and 20cm2 (8"2) scan area
  • Built-in reliability with replaceable window and 2-step sleep mode
  • Universal interface system
  • Low power consumption, runs from keyboard/ terminal sources
  • Fast setup using EasySet® software to print and scan setup codes or download to flash
  • Applications include retail POS, automated healthcare, libraries, access control, etc.

The MaxiScanTM 2210 is an ultra compact, cost-efficient solution for omnidirectional pass through scanning. Its size and performance enables fast hands-free scanning to be integrated into any retail POS station.

The scanner measures only 7.8 x 11.5 x 6.5cm (3.1 x 4.5 x 2.6") but offers a full 20 line scan pattern, 20cm (8") depth of field and 20cm2 (8"2) scan zone for easy and ergonomic scanning.

A mounting kit and Velcro pad are included for simple installation onto horizontal or vertical surfaces. The <<$mfg->name>> MaxiScan 2210 's shape and size allows one of the most space saving methods of scanning – fixing the scanner to the side of the POS terminal. To further ‘tune’ the scanner to the POS station, the scanning depth of field can be adjusted to fit the workingarea and avoid accidental reads. Finally, the scanner is supplied with a set of color profiles that can be used to customize the look of the scanner and match to other color schemes.

The M2210 has unique built-in reliability. The scanner window is replaceable in the field to avoid having to return scanners simply because of scratched windows. A two-step sleep mode provides a separate laser and motor timeout for power/life saving and instant wake-up.

A universal interface system allows the scanner to be connected to many hundreds of PC’s, cash registers or other terminals simply by changing the cable and software setup.

In common with most Intermec scanners, the M2210 is supplied with EasySet set up software for the fastest on-line or offline configuration.

The <<$mfg->name>> MaxiScan 2210 is a high performance omni-directional bar code scanner for fixed applications.

Physical Characteristics Height: 11.5cm (4.5’’) Width: 7.8cm (3.1’’) Depth: 6.5cm (2.6’’) Connector: 14-pin Male 2mm pitch Molex™/Berg™

Scanning Performance Scan Pattern: 20 lines Scan Rate: 1200 scans/s Minimum X dimension: 0.125mm (5 mil) Depth of field: 0 to 20 cm (8’’) EAN/UPC Scan area at max depth of field: 20cm2 PCR: 25% minimum Symbologies UPC E,A, EAN, Code 39, Code 128, UCC EAN 128; Interleaved, Matrix, Industrial and Standard 2 of 5; Codabar, Code 93, MSI, Plessey. Others including ISBT on Application Operator Interface Power and good read LED. Good read beeper. Design Processor: Custom chip (ASIC inc. DSP processor) for fast signal processing and decoding. Flash memory. Light Source: visible laser diode @ 650nm, 0.45mW max output Laser Class 1 IEC 825 / CDRH Class Iia Environmental Characteristics Operating temperature: 0° to 40° C (32° to 104° F) Storage temperature: -40° to 60° C (-40° to 140° F) Relative humidity: 5% to 95% non-condensing Ambient lighting: 0-100,000 lux Drop resistance: 10 drops 1m (3.2’) onto concrete. IP52 rated. Electrical Characteristics Power requirements: +5VDC +-5%, current consumption approx. 200mA (normally powered from host terminal)

<<$mfg->name>> MaxiScan 2210 Advanced Features Code reconstruction, 2 step sleep mode (laser and motor) for fast wake-up and high reliability, replaceable scan window, firmware updates via flash memory, programmable data format (code identification, preambles and postambles), intercharacter and intermessage delays and many others

Interfaces All scanner heads support (by choice of cable): Wand emulation, single or dual RS 232 C, Wyse, HP700/xx and PC AT/PS2 wedge to over 400 terminals and PCs. Extensive interface information on Application

Accessories Counter/wall mount bracket (standard), velcro pad (standard), interface cables, color profiles (standard), spare window (one spare included as standard), external power supplies (option)

Configuration Setup options include EasySet® PC software, by direct connection & bar code printing (custom setup utility), or by conventional bar code setup manual

<<$mfg->name>> MaxiScan 2210 Regulatory Approvals All models: Compliant with all European Directives: CE (EN50081-1/ EN50082-1/ EN60950/ CE174-2). TÜV-Rheinland Safety certified. USA: FCC Part 15 Certified: Class B digital device. UL listed. Canada: ICES-003, NMB003: Class B digital apparatus. cUL listed. Australia and New Zealand: AS/NZS 3548 C tick marked Other approvals pending. DHHS Standard 21CFR 1040.10 and 1040.11 Class IIa Laser Product IEC 825-1, EN60825-1, Class 1 Laser Product

Laser Label: IEC825-1 (1993) – EN60825-1 (1997) Class 1 Laser Product Appareil Laser de Classe 1 - Laser Produkt der Klasse 1 US: Complies with US DHHS Standard 21 CFR Part 1040 as a: Class IIa Laser Product.

Avoid long term viewing of direct laser radiation. Eviter toute exposition prolongée de la vue au rayonnement laser direct. Augen vor direktem Laserlicht schützen.

The Intermec MaxiScan 2210 is also known as the Intermec Technologies MaxiScan 2210 .
