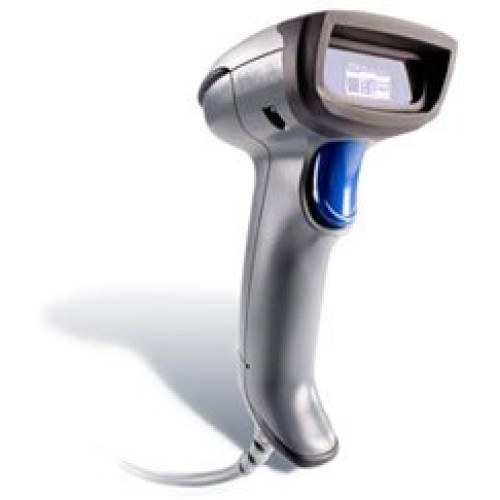

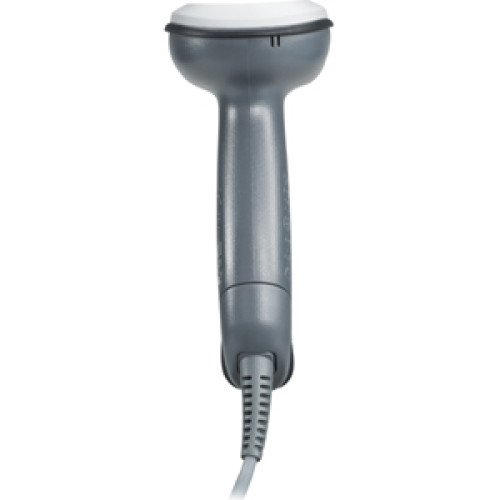

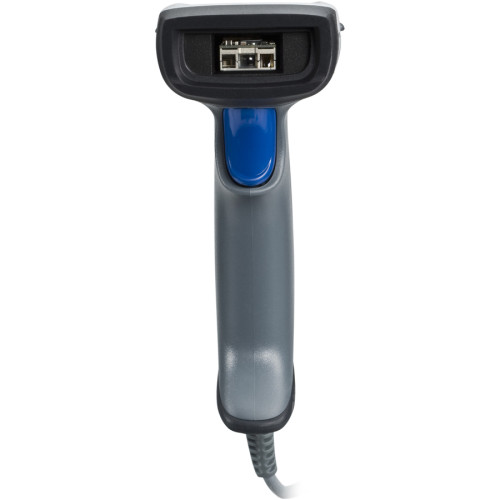

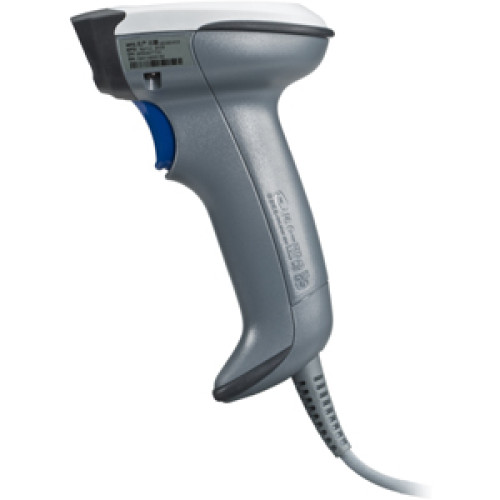

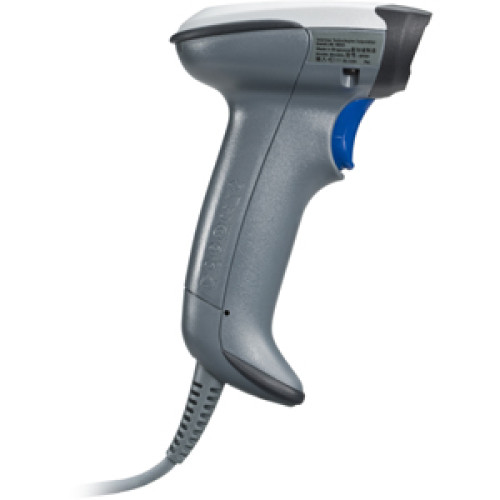

225-728-003 - Intermec SR30 Bar code Scanner

The SR30's auto-adapting capabilities simplifies installation, enabling virtually instant connectivity to POS terminals, Intermec mobile or fixed mount computers, and personal computers. Users can easily connect the Intermec SR30 scanner to the host and start scanning immediately. When new application requirements arise, the user only needs to change the interface cable, not the device itself. This flexibility reduces device costs and complexity for both user companies and their information technology suppliers. Inventory needs are simplified, and user training costs are reduced.

Questions?
1-888-875-7170
We respond to every email
Part # Description Availability Price Order
225-728-003 SR30, Kit, SR30AVTT01, USB (SR30AV Linear Imager and USB cable 6.5 ft, keyboard emulation)
Information:   |  Specifications  |  Intermec's SR30 page  |
Accessories:   |  Accessories/Options  |  Intermec SR30 service contract  |

225-728-003 Details

Technical Information

  • Barcode Dimension: 1D
  • Connectivity Technology: Cable
  • Image Sensor: Imager
  • Barcode Symbology Supported:
    • UPC (E&A)
    • EAN
    • RSS
    • Code 39
    • Code 128
    • UCC/EAN128
    • ISBN
    • ISBT
    • Interleaved
    • Matrix
    • Industria and Standard 2 of 5
    • Codabar
    • Code 93/93i
    • Code 11
    • MSI
    • Plessey
    • Telepen
    • UPC (E&A)
    • EAN
    • RSS
    • Code 39
    • Code 128
    • UCC/EAN128
    • ISBN
    • ISBT
    • Interleaved
    • Matrix
    • Industria and Standard 2 of 5
    • Codabar
    • Code 93/93i
    • Code 11
    • MSI
    • Plessey
    • Telepen
  • Depth of Field:
    • 3.10" - 9.30"@5 mil - Code 39
    • 2.40" - 12.60"@10 mil
    • 2" - 20.50"@20 mil
    • 3.10" - 33.10"@40 mil
    • 2.20" - 13"@13 mil - UPC/EAN

General Information

  • Product Type: Handheld Barcode Scanner
  • Brand Name: Intermec
  • Manufacturer: Intermec Technologies Corporation
  • Product Model: SR30
  • Product Name: SR30 Handheld Scanner

Physical Characteristics

  • Width: 2.9"
  • Depth: 4.3"
  • Color: Gray
  • Length: 6.6"
  • Weight (Approximate): 6.70 oz

Interfaces/Ports

  • Host Interface:
    • USB
    • Keyboard Wedge

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Package Contents:
    • Handheld SR30 Barcode Reader
    • USB Cable
    • Handheld SR30 Barcode Reader
    • USB Cable

Warranty

  • Limited Warranty: 5 Year
Part # Description Availability Price Order
203-845-001 Intermec Stand, Hands-Free, Compatible with SR30.
Ships Free in 3-5 Days
$42.06
Retail $60
Save 29%
TSP-US-SC-3 BCI Service Contracts, True Support Contract 3-year - Scanners Includes Tier 1 and Tier 2 Technical Helpdesk Support 7:30am-cst-5:00pm-cst, RMA Triage, OEM Service Contract management, Pre/post repair inspection and image loading. $48 per year for 3 years, billed annually.
Ships Free in 3-5 Days
$48.00
SVCSF61B-1LC5 Intermec Service Contracts, SF61B, Limited Comprehensive, 1 Day Turn, 5 year DayOne
Ships Free in 3-5 Days
$113.54
Retail $152
Save 25%

The Intermec 225-728-003 is also known as Intermec Technologies INT-SR30AX22 or 225728003 .
