Photo of Intermec 225-747-002 Intermec logo

Intermec SR30

Kit (Linear Imager EV12, USB Cable and Hands Free Stand)

Scanner
This part is replaced by 1450G1D-2USB-1.
$278.25
Ships in 24-48 hours

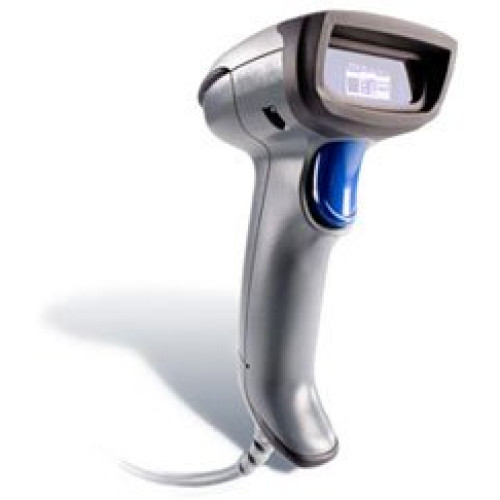

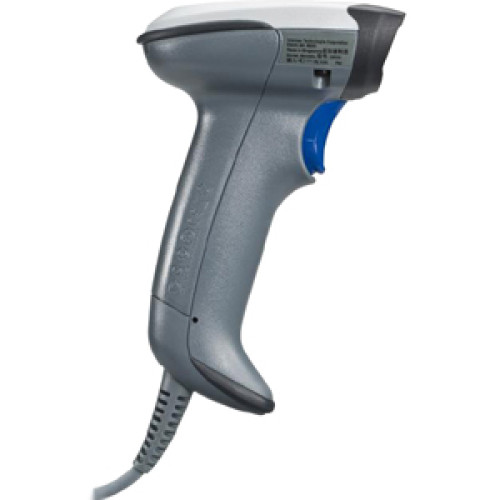

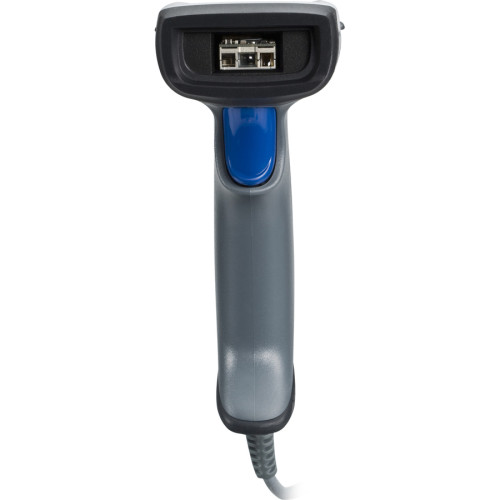

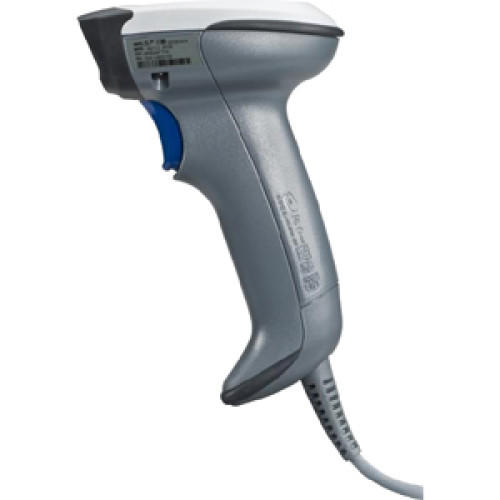

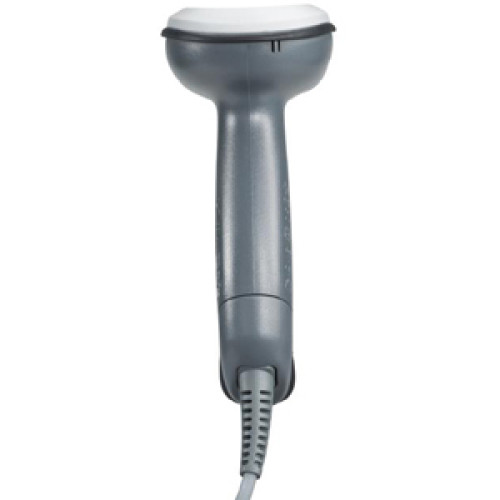

Intermec SR30 Scanner

The Intermec SR30 handheld scanner meets the needs of Point-of-Service (POS) applications in retail, health care, office and light industrial settings. Designed to automatically adapt to different interfaces, the SR30 is fast and easy to install, and equally easy to reconfigure. Built for productivity, the lightweight SR30 integrates patented Intermec Vista linear imaging technology to deliver fast, always-accurate scanning even when barcodes are damaged or poorly printed.

Full specifications (PDF)

Manufacturer part number: 225-747-002

Technical Information

  • Barcode Dimension:
    • 1D
    • 2D
  • Scan Pattern: Linear
  • Connectivity Technology: Cable
  • Image Sensor: CCD
  • Barcode Symbology Supported:
    • EV12:
    • UPC (E&A)
    • EAN
    • RSS,
    • Code 39
    • Code 128
    • UCC/EAN128
    • ISBN
    • ISBT
    • Interleaved
    • Matrix
    • Industria and Standard 2 of 5
    • Codabar
    • Code 93/93i
    • Code 11
    • MSI
    • Plessey
    • Telepen
    • EV12:
    • UPC (E&A)
    • EAN
    • RSS,
    • Code 39
    • Code 128
    • UCC/EAN128
    • ISBN
    • ISBT
    • Interleaved
    • Matrix
    • Industria and Standard 2 of 5
    • Codabar
    • Code 93/93i
    • Code 11
    • MSI
    • Plessey
    • Telepen
  • Depth of Field:
    • 3.10" - 9.30"@5 mil - Code 39
    • 2.40" - 12.60"@10 mil
    • 2" - 20.50"@20 mil
    • 3.10" - 33.10"@40 mil
    • 2.20" - 13"@13 mil - UPC/EAN

General Information

Physical Characteristics

  • Height: 6.6"
  • Width: 2.9"
  • Depth: 4.2"
  • Weight (Approximate): 6.70 oz

Interfaces/Ports

  • Host Interface: USB

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Package Contents:
    • Handheld SR30 Barcode Reader
    • Desktop stand
    • Wall mount holder
    • Hands free stand
    • Interface cables
    • EasySet configuration software utility
    • Handheld SR30 Barcode Reader
    • Desktop stand
    • Wall mount holder
    • Hands free stand
    • Interface cables
    • EasySet configuration software utility

Warranty

  • Limited Warranty: 1 Year
