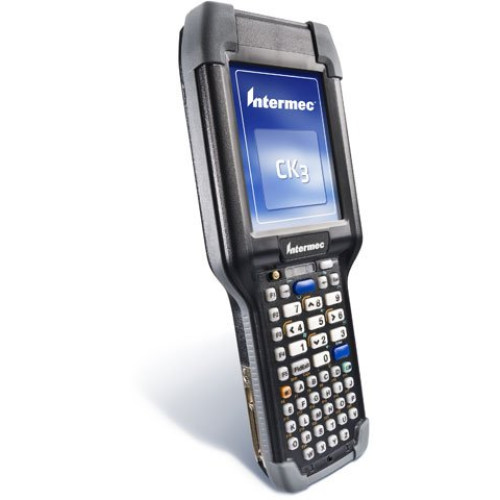

CK3B20M00E100 - Intermec CK 3 Hand Held Computer

The CK 3 embeds Intermec's latest generation of imaging technology for outstanding scanning productivity and compliance to the most recent industry standards. Intermec imaging technology delivers the assurance of fast 1D and 2D barcodes scanning, unmatched performance on poor quality and damaged barcodes, and unmatched flexibility in scanning range. With image capture, revolutionary imager-based scanning, RFID, speech and voice, all supported by 802.11a/b/g and Bluetooth radio communication, enterprises can avoid the expense and complexity of deploying a series of single-purpose devices to meet a variety of data collection and communication needs.

Questions?
1-888-875-7170
We respond to every email
Part # Description Availability Price Order
CK3B20M00E100 CK3, USB interface, Wi-Fi (802.11a/b/g), 2D Imager, Windows Mobile 6.1, Alphanumeric Keypad, Bluetooth. Interface and power cables sold separately.
Information:   |  Specifications  |
Accessories:   |  Accessories/Options  |  Intermec CK 3 service contract  |

CK3B20M00E100 Details

Technical Information

  • Connectivity Technology: Wireless
  • Image Sensor: Imager
  • Electrostatic Discharge (ESD):
    • +/-15 kV DC Air Discharge
    • +/-8 kV DC Contact Discharge
  • Drop Specification: 59.06" To Concrete

General Information

Physical Characteristics

  • Height: 1.4"
  • Width: 3.3"
  • Length: 8.5"
  • Weight (Approximate): 15.98 oz

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority:
    • RoHS
    • WEEE
  • Certifications & Standards:
    • Environmental Protection: IP54
    • Safety:
    • cULus Listing
    • GS
    • EMC:
    • FCC Part 15 Class B
    • ICES-003 Class B
    • EN 55022 Class B
    • Radio:
    • FCC Part 15.247
    • Industry Canada RSS-210
    • EN 300 328
    • Other:
    • All applicable EU Directives EMC
    • Low Voltage
    • R&TTE
    • vehicle
    • Packaging & Waste Packaging
  • Additional Information: Imager Type: EX25 2D Area

Network & Communication

  • Bluetooth: Yes
  • Wireless LAN: Yes
  • Wireless LAN Standard: IEEE 802.11a/b/g
  • Wireless Security:
    • WEP
    • WPA
    • 802.1x
    • 802.11i
    • Wi-Fi
    • WPA2
    • Cisco Compatible (CCX)

Display & Graphics

  • Display Screen Type: LCD
  • Screen Mode: QVGA
  • Screen Size: 3.5"
  • Display Color: Color
  • Screen Resolution: 240 x 320

Battery Information

  • Battery Capacity: 2000 mAh
  • Battery Included: No
  • Battery Chemistry: Lithium Ion (Li-Ion)

Processor & Chipset

  • Processor Manufacturer: Intel
  • Processor Speed: 520 MHz
  • Processor Type: XScale

Memory

  • Flash Memory: 512 MB
  • Standard Memory: 128 MB
  • Memory Card Slot: Yes

Keyboard/Keypad

  • Keyboard Type: Alphanumeric
  • Number of Keys: 51

Touchscreen Information

  • Touchscreen: Yes

Software

  • Operating System: Windows Mobile 6.1 Classic

Warranty

  • Limited Warranty: 1 Year

I/O Expansions

  • Expansion Slot Type: Micro SDIO
Part # Description Availability Price Order
CK3-USB-STARTER Intermec CK3 USB Starter Kit. Includes everything you need to run your CK3: charging/communications cradle, power supply, AC line cord, extended battery and USB cable. Ships Free Today $350.35
TSP-US-MC-3 BCI Service Contracts, True Support contract 3-year - Mobile Computers Includes Tier 1 and Tier 2 Technical Helpdesk Support 7: 30am-cst-5: 00pm-cst, RMA Triage, OEM Service Contract management, Pre/post repair inspection and image loading. $60 per year for 3 years, billed annually.
Ships Free in 24-48 Hours
$46.00
Retail $60
Save 23%

The Intermec CK3B20M00E100 is also known as Intermec Technologies INT-CK3B10 .
