Photo of Intermec CK3XAB4M000W4100
Watch Product Video
View larger image Intermec logo

Intermec CK3X

Wi-Fi (802.11a/b/g/n), Near-Far 2D Imager, Windows Embedded 6.5, 256MB RAM/1GB Flash, Numeric Keypad, Bluetooth. Includes battery. Interface cables and charging cradle sold separately.

Hand Held Computer

Free Shipping

Ships Today

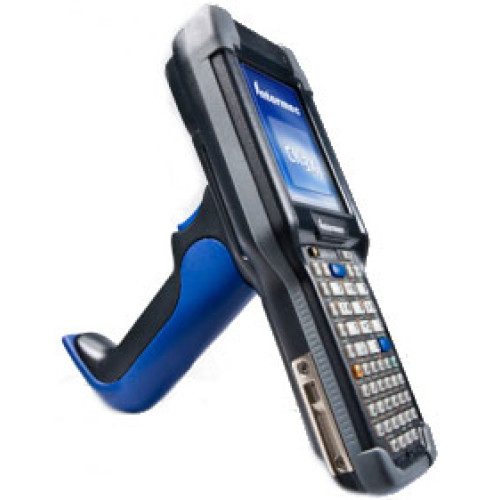

Intermec CK3X Hand Held Computer

The Intermec CK3X comes with a choice of integrated area imagers for standard range or near/far range scanning. These imagers provide unsurpassed scanning performance on 1D and 2D bar codes and are particularly well-suited for reading poor quality and damaged codes. Support for omni-directional scanning and very high motion tolerance allows workers to capture an accurate scan and quickly move to the next task.

Full specifications (PDF)

Manufacturer part number: CK3XAB4M000W4100

General Information

Technical Information

  • Connectivity Technology: Wireless
  • Electrostatic Discharge (ESD):
    • +/-15 kV DC Air Discharge
    • +/-8 kV DC Contact Discharge
  • Drop Specification: 59.06" To Concrete

Physical Characteristics

  • Height: 1.4"
  • Width: 3.3"
  • Length: 8.5"
  • Weight (Approximate): 1.25 lb

Network & Communication

  • Wireless LAN: Yes
  • Wireless LAN Standard: IEEE 802.11a/b/g
  • Wireless Security:
    • WEP
    • WPA
    • 802.1x (EAP-TLS, TTLS, LEAP, PEAP)
    • 802.11i

Display & Graphics

  • Display Screen Type: LCD
  • Screen Mode: QVGA
  • Screen Size: 3.5"
  • Display Color: Color
  • Screen Resolution: 240 x 320


  • Flash Memory: 512 MB
  • Standard Memory: 128 MB
  • Memory Card Slot: Yes
  • Memory Card Supported: microSD Card

Battery Information

  • Battery Capacity: 5100 mAh
  • Battery Included: Yes
  • Battery Chemistry: Lithium Ion (Li-Ion)

Processor & Chipset

  • Processor Manufacturer: Intel
  • Processor Speed: 520 MHz
  • Processor Type: XScale PXA270

Touchscreen Information

  • Touchscreen: Yes


  • Operating System: Windows Mobile 6.5 Classic


  • Keyboard Type: Numeric
