Display Resolution | 480 x 800 |
---|---|
IP Rating | IP64 |
Keypad | Numeric |
Manufacturer | Intermec |

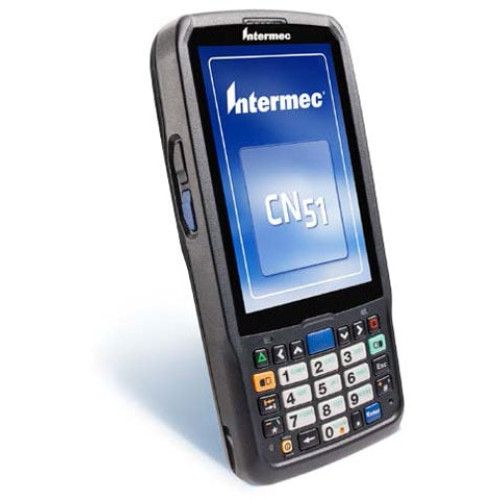

Model Name | CN51 |
Network Connectivity | Bluetooth, Wi-Fi, WWAN |
Operating System | Windows Embedded Handheld 6.5 |
Operating Temperature | 14 F - 122 F (-10 C - 50 C), -14 F - 122 F (-25.55 C - 50 C) |
Processor | Texas Instruments OMAP 4470 (1.5 GHz) |
RAM Memory | 1 GB |
Scanner Capability | 2D |
Scanner Type | Imager |
Style | Phone-size |
Length: 164 mm (6.45 in) with battery
Width: 74 mm (2.93 in) with battery
Depth:
Base of Unit: 28 mm (1.09 in) with battery
Top of Unit: 32 mm (1.26 in) with battery
Weight: 350 g (12.3 oz) with battery
Operating Temperature: -10° C to +50° C
(+14° F to +122° F)
Storage Temperature: -20° C to +70° C (-4° F
to +158° F)
Charging Temperature: +5° C to +35° C (+41° F
to +95° F)
Relative Humidity: Non-condensing, 95%
Rain and Dust Resistance: IP64
Drop Spec: 26 drops from 1.5m (5 ft) to
concrete across the operating temperature range per MIL-STD
810G
Tumble Spec: 1,000 - 0.5 m (1.6 ft) tumbles
at room temperature
Electrostatic Discharge: +/- 15kV air
discharge, +/- 8kV direct discharge
Smart Battery Pack: 3.7V, 3900 mAh; Batteries are IEEE 1725 compliant, Li-Ion, removable, rechargeable.
Microsoft Windows Embedded Handheld v6.5 or Android v4.1
For the Android OS version, limited configurations available,
please consult your sales representative
Texas Instruments 1.5 GHz OMAP 4470 dual core, multi-engine processor architecture
Memory: 1 GB RAM
Flash ROM: 16 GB Flash
Customer-accessible micro-SD slot for removable memory cards up to
32 GB
•10.16 cm (4.0 in), 480 x 800 pixel (WVGA) TFT-LCD display
•LCD supports 24 bpp color depth
•LED backlight
•Ambient light sensor
•Resistive multi-touch touch panel
USB – High Speed 2.0 Host, USB – High Speed 2.0 Client
Wireless:
Wireless LAN: IEEE®802.11 a/b/g/n on devices without
Wireless WAN radio; IEEE®802.11 b/g/n on cellular devices
Security: WiFi Certified for WPA and WPA2,
WAPI Certified
Authentication: 802.1x
Cisco Compatibility: CCXv4
Encryption: WEP (64 or 128 bit), AES,
TKIP
Wireless PAN: Integrated Bluetooth® Power
Class 1.5 Version 4 BLE
Global Positioning System (with WAN Radio
option) 12 channel Integrated GPS; Network independent autonomous
mode; supports assisted operation via XTRA®, CP E911
•GPS dedicated AT commands
•Protocol: NMEA-0183 V2.3
•Tracking Sensitivity: better than -158 dBm
•GLONASS support
Integrated Radios
Wireless WAN Options
UMTS / HSPA+ (Voice & Data); Worldwide except
Americas, Australia and New Zealand
UMTS/HSPA Frequencies: 900, 2100 MHz
Max Speeds (Network Dependent): Uplink – 5.76 Mbps Downlink – 14.4
Mbps
GSM/GPRS/EDGE Frequencies: 900, 1800 MHz
Max Speeds (Network Dependent): Uplink – 384 Kbps Downlink – 384
Kbps
Flexible Network™ (Voice & Data); Americas,
Australia and New Zealand (Can be switched between the UMTS and
CDMA radio networks)
UMTS/HSPA+
UMTS Frequencies: 800, 850, 900, 1900, 2100 MHz GSM/GPRS/EDGE
Frequencies: 850, 900, 1800, 1900 MHz
Max Speeds (Network Dependent): Uplink – 5.76 Mbps Downlink – 14.4
Mbps
CDMA/EV-DO Rev A
Dual Band CDMA2000 Bands: BC0 & BC1 (800/1900 MHz) Max Speeds
(Network Dependent): Uplink – 1.8 Mbps Downlink – 3.1 Mbps
Scan Engine Options:
EA30 high performance motion-tolerant 2D Imager; (up to 500 in/s)
white LED illumination; red laser aimer and framer optimized for
all lighting conditions. Capable of scanning all common 1D and 2D
barcodes; 1D as small as 4 mils; 2D as small as 6.6 mils. Refer to
User's Manual for depth of field performance.
EA31 high performance motion-tolerant 2D Imager; (up to 400 in/s)
white LED illumination. Capable of scanning all common 1D and 2D
bar codes; 1D as small as 4 mils; 2D as small as 6.6 mils. Refer to
User's Manual for depth of field performance.
Integrated Camera Option: 5 Megapixel auto
focus color camera with LED flash
(27 Key) Numeric or (43 Key) QWERTY with backlit keypad
Supports all CN50 charging and docking accessories as well as FlexDock modular docking system, vehicle dock, vehicle holder, snap on adaptors, removable scan handle, and magnetic stripe reader.
