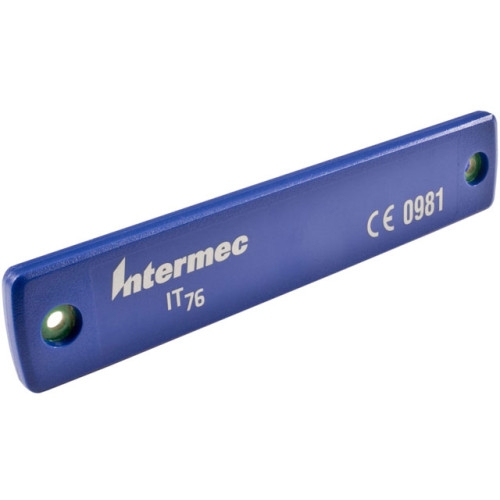

IT76A0010 - Intermec IT 75 RFID Tag

Intermec's rugged Low Profile Durable Asset Tags have been designed to provide superior performance and high durability on a variety of surfaces at a low cost. Utilizing the latest generation of Gen 2 silicon supporting 512 bits of user memory within a small, durable form factor, Intermec's Durable Asset Tags are suitable for tracking a wide variety of assets. The IT75 (tuned for FCC regions) is optimized specifically for metal surfaces such as metal pallets, ULDs, and other metal assets.

We respond to every email
Part # Description Availability Price Order
IT76A0010 IT75 Asset Tag, , Metal Mnt,Gen2 ,FCC, 10
Ships in 3-5 Days
Information:   |  Specifications  |  Intermec's IT 75 page  |
Accessories:   |  No accessories available  |

IT76A0010 Details

General Information

  • Product Type: RFID Tag
  • Brand Name: Intermec
  • Manufacturer: Intermec Technologies Corporation
  • Product Name: IT76 Low Profile Durable Asset RFID Tag
  • Packaged Quantity: 10

Physical Characteristics

  • Width: 0.9"
  • Length: 4.4"
  • Thickness: 200 mil

Product Information

  • Shape: Rectangular


  • Additional Information:
    • Operating Frequency: UHF ETSI 865-868 MHz
    • Direct Application Materials: Metal
    • Attachment Methods: Screws/Rivets/25 mil Tape
    • Typical Read Range: 5m
    • Integrated Chip: Impinj Monza 4QT
    • EPC Code Max Size: 128 bit
    • Unique Serial Number Size: 48 bit
    • TID / UID Memory: 64 bit
    • User Memory: 512 bit
    • Min Operating Temp: -40°C
    • Max Operating Temp: +82.2°C
    • Min Storage Temp: -40°C
    • Max Storage Temp: +93.3°C

The Intermec IT76A0010 is also known as Intermec Technologies INT-IT76A0010 .
