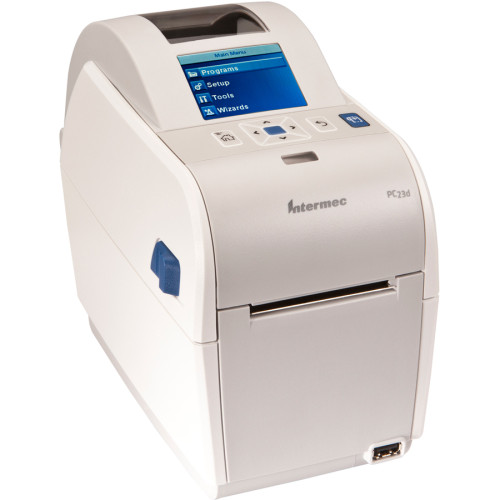

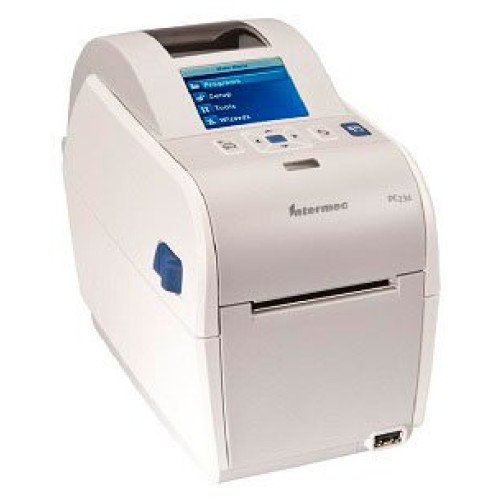

PC23DA0000031 - Intermec PC23d Bar code Printer

Super easy to install and use, the highly compact Intermec PC23d is a purpose-built platform with an innovative design guided from customer input. The PC23d 2"-wide desktop printer is perfect for space-constrained settings, and offers tailored solutions for healthcare, as well as small and medium business-manufacturing environments.

Questions?
1-888-875-7170
We respond to every email
Part # Description Availability Price Order
PC23DA0000031 PC23, Direct thermal Desktop Printer, Icon, 305 dpi, Americas Power cord. Great for Pharmacy Pill Bottle Labeling, Laboratory Slide Labeling, and Medical Wristbands.
Ships Free in 3-5 Days
$335.70
Retail $500
Save 32%
Information:   |  Download Intermec PC23d driver  |  Specifications  |  Intermec's PC23d page  |
Accessories:   |  Accessories/Options  |  Bar code Software  |  Intermec PC23d service contract  |
Supplies:   |  Intermec PC23d Print head  |

PC23DA0000031 Details

Technical Information

  • Maximum Mono Print Speed: 6 in/s
  • Maximum Print Resolution: 300 dpi
  • Print Color: Monochrome
  • Maximum Print Width: 2.10"
  • Recommended Use: Label Print
  • Features:
    • Real Time Clock
    • Icon-graphics
  • Barcode Symbology Supported:
    • Aztec Code
    • Code 16K
    • Code 49
    • Data Matrix
    • EAN-13
    • EAN-8
    • EAN.UCC 128
    • Grid Matrix
    • HIBC Code 128
    • HIBC Code 39
    • Maxi Code
    • MSI
    • PDF-417
    • Micro PDF-417
    • Planet Code
    • Plessey
    • POSTNET
    • QR Code
    • RSS-14

General Information

  • Product Type: Direct Thermal Printer
  • Product Series: PC
  • Brand Name: Intermec
  • Manufacturer: Intermec Technologies Corporation
  • Product Model: PC23d
  • Product Name: PC23d Desktop Printer

Physical Characteristics

  • Height: 6.9"
  • Width: 4.9"
  • Depth: 8.5"
  • Form Factor: Desktop
  • Weight (Approximate): 3.20 lb

Interfaces/Ports

  • USB: Yes

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority:
    • RoHS
    • ENERGY STAR
  • Platform Supported: PC
  • Package Contents:
    • PC23d Desktop Printer
    • Software, Driver & Documentation CD
    • USB Cable
    • Power Adapter
    • Power Cord
    • Handy QuickGuide
    • PC23d Desktop Printer
    • Software, Driver & Documentation CD
    • USB Cable
    • Power Adapter
    • Power Cord
    • Handy QuickGuide
  • Certifications & Standards:
    • CE
    • FCC Class A
    • C-UL-US
    • UL
    • GS
    • TUVGS
    • BSMI
    • D Mark
    • cUL
    • CCC (China)
    • KCC (South Korea)
    • C-TICK (Australia/NZ)
    • UL 60950-1
    • EN 60950-1
    • CE marked
    • NYCE Certified
    • NOM 19
    • IEC 60950-1
    • USA FCC Title 47
    • Part 15
    • Subpart A
    • Class B
    • Europe EMC Directive (EN55022 Class B + EN55024)
    • CISPR22

Media Types & Handling

  • Maximum Label Width: 2.36"
  • Maximum Label Length: 35"
  • Media Type:
    • Tag
    • Linerless
    • Self Adhesive Label
    • Continuous Paper
    • Floodcoat
    • Non-adhesive Tag
  • Media Sensor: Transmissive Media Sensor
  • Label Core Size: 1.50"
  • Maximum Roll Diameter: 5"

Fonts & Emulation

  • Language Emulation:
    • IPL
    • Fingerprint
    • DSim
    • ZSim
    • XML
    • E-Sim

Memory

  • Standard Memory: 128 MB
  • Memory Technology: DDR2 SDRAM
  • Flash Memory: 128 MB

Display & Graphics

  • Display Screen Type: LCD
  • Screen Size: 2.4"

Power Description

  • Input Voltage: 24 V DC
  • Power Source: Power Adapter

Warranty

  • Limited Warranty: 1 Year
Part # Description Availability Price Order
TSP-US-DLP-3 BCI Service Contracts, True Support contract 3-year - Desktop Label Printers Includes Tier 1 and Tier 2 Technical Helpdesk Support 7:30am-cst-5:00pm-cst, RMA Triage, OEM Service Contract management, Pre/post repair inspection and image loading. $42 per year for 3 years, billed annually.
Ships Free in 3-5 Days
$42.00
SVCPC41-2FC3 Intermec Service Contracts, PC41, Full Comprehensive, 2 Day Turn, 3 Year DayOne
Ships Free in 3-5 Days
$114.29
Retail $153
Save 25%

The Intermec PC23DA0000031 is also known as Intermec Technologies INT-PC23DA0000031 .
