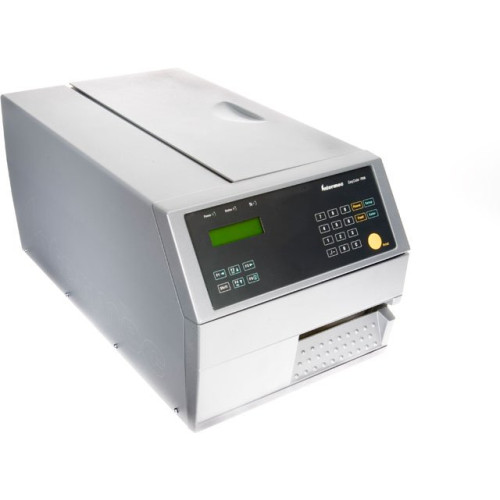

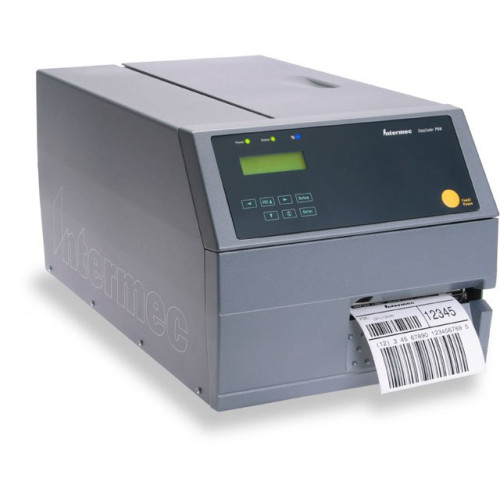

Intermec EasyCoder PX4i Barcode Label Printer
Part #: PX4B911000300040 | SKU: INT47371

Designed for easy integration into manufacturing environments, the EasyCoder PX4i printer can be mounted in virtually any position. The versatile form factor facilitates the addition of add-ons such as an automatic label applicator. Up to seven wired and wireless connectivity interfaces can be used simultaneously eliminating connectivity restrictions and supporting additional devices. The EasyCoder PX4i printer can operate as stand alone devices executing user-defined programs thereby eliminating the need for a PC. The EasyCoder PX4i can operate production line machinery including scanners, scales and other printers and conveyors as well as access information directly from the network host, is fully programmable and is able to change with the application as needed. Ships with full-featured version of LabelShop START label design software.

Intermec EasyCoder PX4i Barcode Label Printer

Part Details: EasyCoder PX4i, Thermal transfer printer, 4.4" print width, 12"/sec speed, 406 dpi, 16MB RAM, 4MB Flash, US power cord, IPL, EasyLAN Ethernet Interface, Parallel Interface, No Option 2, Rotating Unwinding Media Hanger

Additional Information

Interface Options Ethernet, Parallel
Manufacturer Intermec
Max Label Width 4.72
Max Roll Outer Diameter 8.38
Model Name EasyCoder PX4i
Print Resolution 406 dpi
Print Speed 12 ips
Printer Type Industrial
Printing Technology Thermal Transfer
Ribbon Core Size 1 inch

Technical Information

  • Maximum Mono Print Speed: 12 in/s
  • Maximum Print Resolution: 400 dpi
  • Print Color: Monochrome
  • Maximum Print Width: 4.30"
  • Recommended Use: Label Print
  • Barcode Symbology Supported:
    • Codabar
    • Code 11
    • Code 39
    • Code 93
    • MSI PLESSEY
    • Code 128
    • Code 128-A
    • Code 128-C
    • DUN-14/16
    • UPC/EAN
    • EAN 128
    • EAN-128 Subset A
    • EAN-128 Subset C
    • Industrial 2 of 5
    • Interleaved 2 of 5
    • Interleaved 2 of 5 A
    • Matrix 25
    • Planet Code
    • POSTNET
    • Straight 2 of 5
    • UCC 128
    • RSS
    • HIBC Code 39
    • HIBC Code 128
    • JIS-ITF
    • Code 16K
    • Code 49
    • Data Matrix
    • Maxi Code
    • PDF-417
    • QR Code
    • Micro PDF-417
    • EAN.UCC Composite

General Information

  • Product Type: Direct Thermal/Thermal Transfer Printer
  • Product Series: PX
  • Brand Name: Intermec
  • Manufacturer: Intermec Technologies Corporation
  • Product Model: PX4i
  • Product Name: EasyCoder PX4i Thermal Label Printer
  • Product Line: EasyCoder

Physical Characteristics

  • Height: 9.4"
  • Width: 10.8"
  • Depth: 19"

Other

  • Platform Supported: PC
  • Package Contents:
    • EasyCoder PX4i Label Printer
    • Power Cord
    • User & Installation manuals
    • Printer Companion CD
    • Cleaning Card
    • Product registration card
    • Declaration of Conformity
    • EasyCoder PX4i Label Printer
    • Power Cord
    • User & Installation manuals
    • Printer Companion CD
    • Cleaning Card
    • Product registration card
    • Declaration of Conformity
  • Certifications & Standards:
    • CE (EN55022 Class A)
    • FCC Class A
    • UL
    • CSA
    • C-Tick
  • Additional Information:
    • Print Speed: 4 - 12 ips variable
    • Graphics: Supports PCX file format
    • Max Print Width: DT 4.4 in TT 4.3 in
    • Wand Interface for Wand Barcode Scanners
    • Display: Back-lit LCD for 2 x16 characters & 3 LED indicator lamps

Media Types & Handling

  • Maximum Label Width: 4.72"
  • Media Type:
    • Roll Fed
    • Die-cut Label
    • Continuous Form
    • Fanfold
    • Tag
    • Ticket
  • Label Core Size: 3"
  • Ribbon Core Size: 1"
  • Maximum Roll Diameter: 8.38"

Power Description

  • Input Voltage:
    • 110 V AC
    • 220 V AC

Memory

  • Standard Memory: 16 MB
  • Memory Technology: SDRAM
  • Flash Memory: 4 MB

Network & Communication

  • Ethernet: Yes
  • Ethernet Technology: Fast Ethernet

Warranty

  • Limited Warranty: 1 Year

Fonts & Emulation

  • Language Emulation: IPL
Extended Details
