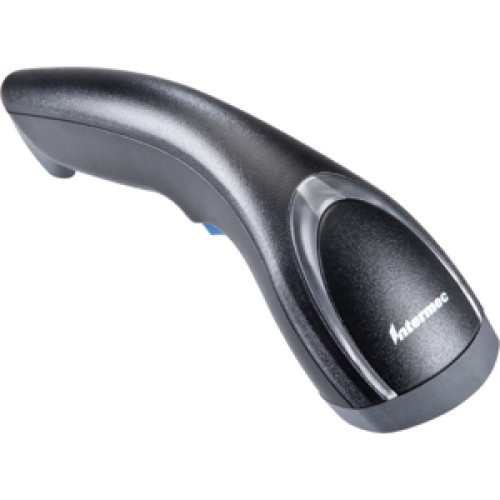

SG20T2D-USB001 - Intermec SG20 Series Bar code Scanner

The Intermec SG20 Series features the industry’s fastest bar code reading technology, providing more than 50 times the motion tolerance of typical scanners. Select between Bluetooth wireless for up to 10 meters of range (32.8 feet), or the simplicity of tethered (cabled) connectivity. The stylish design of the SG20 Series sets it apart from traditional gun-shaped handheld scanners. The Intermec SG20 Series can be quickly and easily configured with Intermec exclusive EasySet PC programming tool.

Questions?
1-888-875-7170
We respond to every email
Part # Description Availability Price Order
SG20T2D-USB001 SG20T: SG20 Series, SG20 USB KIT, EA31 2D Imager w /cable Ships Free Today $188.71
Retail $302
Save 37%
Information:   |  Specifications  |  Intermec's SG20 Series page  |
Accessories:   |  Accessories/Options  |

SG20T2D-USB001 Details

Technical Information

  • Barcode Dimension:
    • 1D
    • 2D
  • Scan Pattern: Omni-directional
  • Connectivity Technology: Cable
  • Image Sensor: Imager
  • Barcode Symbology Supported:
    • 1D:
    • Codabar
    • Code 11
    • Code 39
    • Code 93/93i
    • Code 128 / GS1-128
    • EAN/UPC
    • GS1 DataBar Limited
    • GS1 Composite (linear only)
    • GS1 DataBar Expanded
    • GS1 DataBar Omnidirectional
    • Interleaved 2 of 5
    • Matrix 2 of 5
    • MSI
    • Plessey
    • Standard 2 of 5
    • Telepen
    • 2D:
    • Australian Post
    • Aztec
    • BPO
    • Canada Post
    • Codablock A
    • Codablock F
    • DataMatrix
    • Dutch Post
    • EAN/UPC
    • GS1 Composite
    • GS1 DataBar Stacked
    • Infomail
    • Intelligent Mail
    • Japan Post
    • Maxicode
    • Micro PDF417
    • Multicode
    • PDF417
    • Planet
    • Postnet
    • QR Code
    • Sweden Post
    • TLC 39
    • 1D:
    • Codabar
    • Code 11
    • Code 39
    • Code 93/93i
    • Code 128 / GS1-128
    • EAN/UPC
    • GS1 DataBar Limited
    • GS1 Composite (linear only)
    • GS1 DataBar Expanded
    • GS1 DataBar Omnidirectional
    • Interleaved 2 of 5
    • Matrix 2 of 5
    • MSI
    • Plessey
    • Standard 2 of 5
    • Telepen
    • 2D:
    • Australian Post
    • Aztec
    • BPO
    • Canada Post
    • Codablock A
    • Codablock F
    • DataMatrix
    • Dutch Post
    • EAN/UPC
    • GS1 Composite
    • GS1 DataBar Stacked
    • Infomail
    • Intelligent Mail
    • Japan Post
    • Maxicode
    • Micro PDF417
    • Multicode
    • PDF417
    • Planet
    • Postnet
    • QR Code
    • Sweden Post
    • TLC 39
  • Maximum Scan Resolution: 6.60 mil

General Information

  • Product Type: Handheld Barcode Scanner
  • Product Series: SG20
  • Brand Name: Intermec
  • Manufacturer: Intermec Technologies Corporation
  • Product Model: SG20T
  • Product Name: SG20 General Duty Imager

Physical Characteristics

  • Height: 2.6"
  • Width: 2.4"
  • Color: Black
  • Length: 7.9"
  • Weight (Approximate): 4.41 oz

Interfaces/Ports

  • Host Interface: USB

Other

  • Platform Supported: PC
Part # Description Availability Price Order
TSP-US-SC-3 BCI Service Contracts, True Support Contract 3-year - Scanners Includes Tier 1 and Tier 2 Technical Helpdesk Support 7:30am-cst-5:00pm-cst, RMA Triage, OEM Service Contract management, Pre/post repair inspection and image loading. $48 per year for 3 years, billed annually.
Ships Free in 3-5 Days
$48.00
SVCSG20-1LC5 Intermec Service Contracts, SG20, Limited Comprehensive, 1 Day Turn, 5 year DayOne
Ships Free in 3-5 Days
$59.76
Retail $80
Save 25%

The Intermec SG20T2D-USB001 is also known as Intermec Technologies INT-SG20T2DUSB001 or SG20T2DUSB001 .
