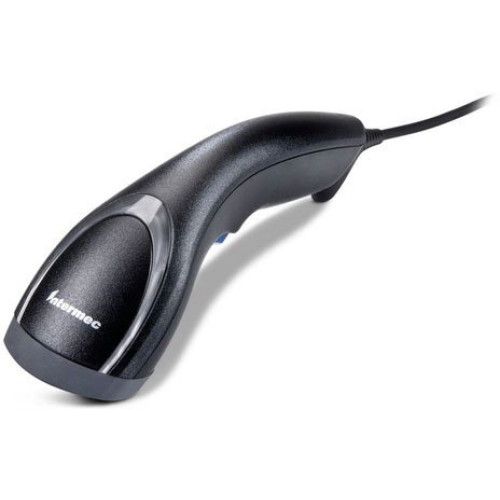

SG20THPHC-001 - Intermec SG20 Series Bar code Scanner

The Intermec SG20 Series features the industry’s fastest bar code reading technology, providing more than 50 times the motion tolerance of typical scanners. Select between Bluetooth wireless for up to 10 meters of range (32.8 feet), or the simplicity of tethered (cabled) connectivity. The stylish design of the SG20 Series sets it apart from traditional gun-shaped handheld scanners. The Intermec SG20 Series can be quickly and easily configured with Intermec exclusive EasySet PC programming tool.

Part # Description Availability Price Order
SG20THPHC-001 SG20T: SG20 Series, G20 HC 2D, Wht, corded, USB/ Keyboard wedge/RS-232 I/F Ships Free Today $316.50
Retail $422
Save 25%
Information:   |  Specifications  |  Intermec's SG20 Series page  |
Accessories:   |  Accessories/Options  |

SG20THPHC-001 Details

Technical Information

  • Barcode Dimension:
    • 1D
    • 2D
  • Scan Pattern: Omni-directional
  • Connectivity Technology: Cable
  • Scanning Distance: 6.7 mil
  • Light Source: LED
  • Image Sensor: Imager
  • Barcode Symbology Supported:
    • Australian Post
    • Aztec
    • BPO
    • Canada Post
    • Infomail
    • Codabar
    • Codablock A
    • Codablock F
    • Code 11
    • Code 39
    • Code 93/93i
    • Code 128 / GS1-128
    • DataMatrix
    • Dutch Post
    • EAN/UPC
    • GS1 Composite
    • GS1 DataBar Expanded
    • GS1 DataBar Limited
    • GS1 DataBar Omnidirectional
    • GS1 DataBar Stacked
    • Intelligent Mail
    • Interleaved 2 of 5
    • Japan Post
    • Matrix 2 of 5
    • Maxicode
    • Micro PDF417
    • MSI
    • Multicode
    • PDF417
    • Planet
    • Plessey
    • Postnet
    • QR Code
    • Standard 2 of 5
    • Sweden Post
    • Telepen
    • TLC 39
    • Australian Post
    • Aztec
    • BPO
    • Canada Post
    • Infomail
    • Codabar
    • Codablock A
    • Codablock F
    • Code 11
    • Code 39
    • Code 93/93i
    • Code 128 / GS1-128
    • DataMatrix
    • Dutch Post
    • EAN/UPC
    • GS1 Composite
    • GS1 DataBar Expanded
    • GS1 DataBar Limited
    • GS1 DataBar Omnidirectional
    • GS1 DataBar Stacked
    • Intelligent Mail
    • Interleaved 2 of 5
    • Japan Post
    • Matrix 2 of 5
    • Maxicode
    • Micro PDF417
    • MSI
    • Multicode
    • PDF417
    • Planet
    • Plessey
    • Postnet
    • QR Code
    • Standard 2 of 5
    • Sweden Post
    • Telepen
    • TLC 39

General Information

  • Product Type: Handheld Barcode Scanner
  • Product Series: SG20
  • Brand Name: Intermec
  • Manufacturer: Intermec Technologies Corporation
  • Product Model: SG20T
  • Product Name: SG20T Handheld Barcode Reader

Physical Characteristics

  • Height: 2.6"
  • Width: 2.4"
  • Depth: 7.9"
  • Color: White
  • Weight (Approximate): 4.41 oz

Interfaces/Ports

  • Host Interface:
    • USB
    • Keyboard Wedge
    • Serial

Battery Information

  • Battery Chemistry: Lithium Ion (Li-Ion)

Other

  • Platform Supported: PC
Part # Description Availability Price Order
TSP-US-SC-3 Barcodes True Support Contract 3-year, $48 per year for 3 years, billed annually. True Support contract 3-year- Scanners Includes Tier 1 and Tier 2 Technical Helpdesk Support 7: 30am-cst-5: 00pm-cst, RMA Triage, OEM Service Contract management, Pre/post repair inspection and image loading Ships Free Today $48.00
SVCSG20-1LC5 Intermec Service Contracts, SG20, Limited Comprehensive, 1 Day Turn, 5 year DayOne Ships Free Today $80.00
Why don't we show the price?

The Intermec SG20THPHC-001 is also known as Intermec Technologies INT-SG20THPHC001 or SG20THPHC001 .
