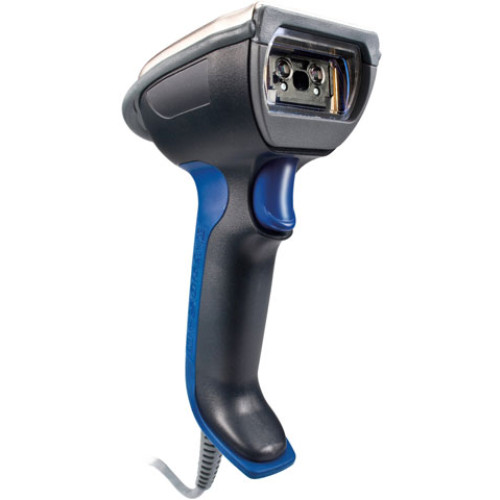

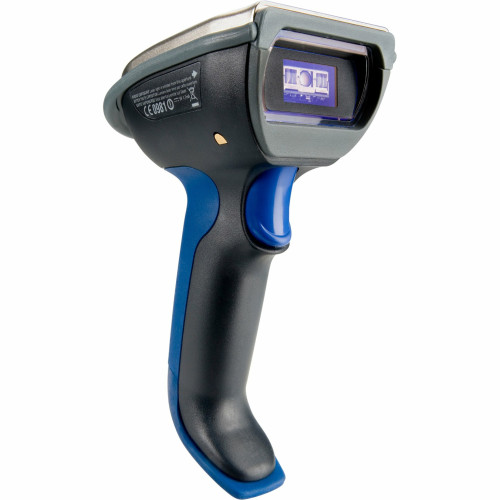

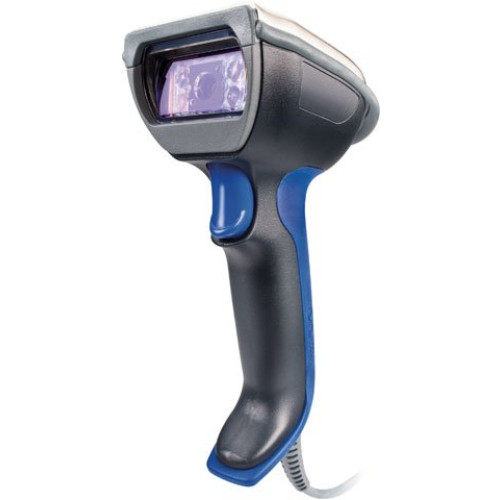

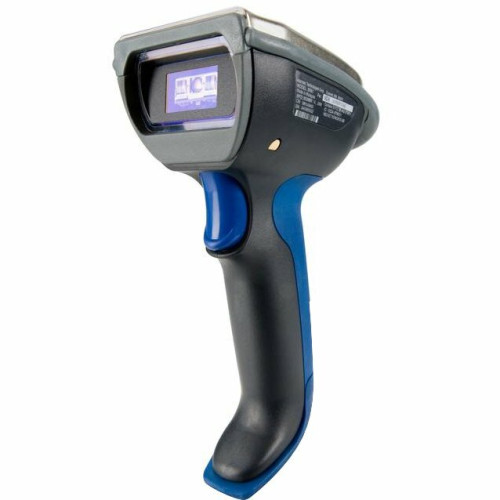

SR61THP-SER002 - Intermec SR61 HP Bar code Scanner

Presenting the pinnacle of imaging: Intermec's fastest scanning engine in the most robust form factor. Incredible motion tolerance and omnidirectional scanning makes the SR61HP the most responsive scanner in its class.

Questions?
1-888-875-7170
We respond to every email
Part # Description Availability Price Order
SR61THP-SER002 SR61THP, HIGH PERFORMANCE AREA IMAGER SERIAL KIT, INCLUDES SCANNER WITH EA30 SCAN ENGINE, LASER AIMER, SERIAL CABLE 236-185-001, POWER SUPPLY 851-089-205, ORDER POWER CORD SEPARATELY Ships Free Today $579.22
Retail $927
Save 37%
Information:   |  Specifications  |  Intermec's SR61 HP page  |
Accessories:   |  Accessories/Options  |  Intermec SR61 HP service contract  |

SR61THP-SER002 Details

Technical Information

  • Barcode Dimension:
    • 1D
    • 2D
  • Scan Pattern: Omni-directional
  • Connectivity Technology: Cable
  • Image Sensor: Imager
  • Barcode Symbology Supported:
    • 1D & Stacked:
    • Codabar
    • Codablock
    • Code 11
    • Code 128 (GS1-128)
    • Code 39
    • Code 93/93i
    • EAN/UPC
    • GS1 DataBar Expanded
    • GS1 DataBar Limited
    • GS1 DataBar Omni-Directional
    • GS1 DataBar Stacked
    • Interleaved 2 of 5
    • Macro PDF
    • Micro PDF
    • Matrix 2 of 5
    • MSI
    • PDF417
    • Plessey
    • Standard 2 of 5
    • Telepen
    • TLC39
    • 2D:
    • Aztec
    • DataMatrix
    • GS1 Composite
    • Maxicode
    • QR Code
    • Postal:
    • Australian Post
    • BPO
    • Canada Post
    • Dutch Post
    • Infomail
    • Intelligent Mail
    • Japan Post
    • Planet
    • Postnet
    • Sweden Post
    • 1D & Stacked:
    • Codabar
    • Codablock
    • Code 11
    • Code 128 (GS1-128)
    • Code 39
    • Code 93/93i
    • EAN/UPC
    • GS1 DataBar Expanded
    • GS1 DataBar Limited
    • GS1 DataBar Omni-Directional
    • GS1 DataBar Stacked
    • Interleaved 2 of 5
    • Macro PDF
    • Micro PDF
    • Matrix 2 of 5
    • MSI
    • PDF417
    • Plessey
    • Standard 2 of 5
    • Telepen
    • TLC39
    • 2D:
    • Aztec
    • DataMatrix
    • GS1 Composite
    • Maxicode
    • QR Code
    • Postal:
    • Australian Post
    • BPO
    • Canada Post
    • Dutch Post
    • Infomail
    • Intelligent Mail
    • Japan Post
    • Planet
    • Postnet
    • Sweden Post
  • Depth of Field:
    • 3.15" - 5.51"@5 mil - Code 39
    • 2.76" - 18.11"@20 mil - Code 39
    • 3.74" - 27.56"@40 mil - Code 39
    • 2.36" - 12.60"@13 mil - EAN/UPC
    • 2.17" - 10.24"@10 mil - PDF417
    • 2.56" - 14.17"@15 mil - PDF417
    • 2.36" - 8.27"@10 mil - DataMatrix

General Information

  • Product Type: Handheld Barcode Scanner
  • Brand Name: Intermec
  • Manufacturer: Intermec Technologies Corporation
  • Product Model: SR61HP
  • Product Name: SR61HP 2D Industrial Handheld Scanner

Physical Characteristics

  • Height: 5.2"
  • Width: 2.8"
  • Length: 7.6"
  • Weight (Approximate): 11.20 oz

Interfaces/Ports

  • Host Interface: Serial

Other

  • Platform Supported: PC

The Intermec SR61THP-SER002 is also known as Intermec Technologies INT-SR61TX23 or SR61THPSER002 .
