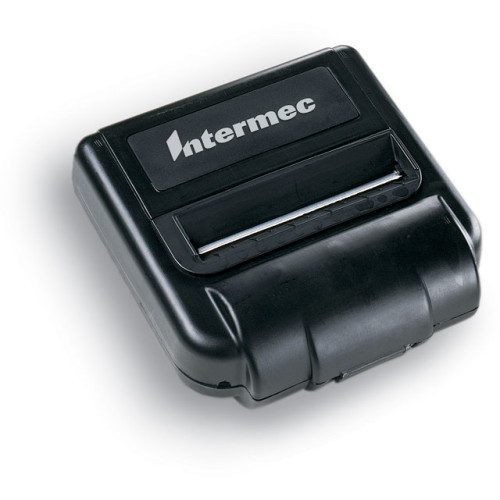

Photo of Intermec PB40
Intermec logo

Intermec PB40 Portable Printer

When paired with a 700 Series Mobile Computer, the new Intermec PB40 4" width Direct thermal Portable Printer with Bluetooth offers the convenience of a personal area network (PAN) to the frontline worker for printing receipts. The combination of the PB40 portable printer and companion 700 Series Mobile Computer is a no hassle solution to improve wireless printing operations for various route accounting, field service, logistics, home delivery and pre-sales systems. The PB40 can be worn at the waist, carried or left behind in the truck for maximum efficiency. With a wireless connection to the handheld mobile computer, the user can even wear a coat in harsh weather environments and still print a ticket. Lithium-ion batteries offer maximum power capacity for the PB40. Automatic power saving sleep mode and quick 3-hour recharging time, along with an optional vehicle charger, create the optimum application solution for a long service day.
PB40 Options
Part # DescriptionAvailabilityPriceOrder
PB40B0B140 PB40 Direct thermal Portable Printer (4 inch, BTM and) Check Availability Call for Details
PB40A0B140 Direct thermal, 203 dpi, 2 ips, 4" width and Bluetooth Module. Check Availability Call for Details

Intermec PB40 Details

Physical Characteristics
Length: 16.5 cm (6.5”)
Width: 16.9 cm (6.7”)
Depth: 6.7 cm (2.6”)
Weight: With 2 batteries and paper: 932 grams (32.9 oz)

Operating Temperature: -4° to 122 °F (-20° to 50°C)
Drop Spec: Withstands multiple 152.5 cm (5”) drops to concrete

Power Source
2 internal batteries, LiIon 1.8 amp/hr, 7.2v, 2200 mAH each
User replaceable

Battery Recharging
Nine hours to full charge using a vehicle cigarette lighter power adapter or standard AC power adapter

Printer Mechanism Characteristics
Direct thermal line printer
203 dots per inch (dpi)
Print Speed: 5.1 cm (2”) per second

Three resident fonts
Nine additional fonts may be downloaded
Other fonts may be purchased

Print Capabilities
Characters, graphics and bar codes

Print Medium
Thermal paper, one ply
Paper width: 11.2 cm (4.4”)

Print Duration per Charge
Over 9144 cm (3,600”)

Wireless LAN Characteristics
Range: 10m (30’)

RS-232 serial

AC wall charger
12V vehicle charger

Regulatory Approvals
FCC Title 47, Part 15, Subpart B, Class B
EN 55022 Class B
EN 50082-1
EN 60950
IEC 1000-3-2

The Intermec PB40 is also known as the Intermec Technologies PB40 .
