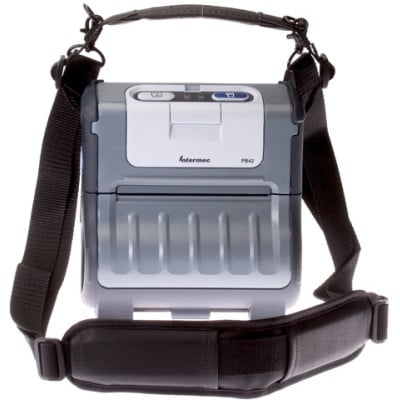

Intermec PB42 Portable Printer

Intermec's PB42 four-inch wireless portable receipt printer is designed to improve direct store delivery (DSD), Field Service, and Home Utility applications. The PB42 printer interfaces seamlessly with the CK60 and 700 Intermec handheld computers and features easy "drop-in" charging and front loading batteries that can be changed with just one hand. Daily route activities are easily entered and tracked via a mobile computer throughout a workers shift. Receipts are immediately provided to the customer for prompt payment or to eliminate duplicated billing efforts.

Questions?

1-888-875-7170

Email We respond to every email

Fill out your contact information and a message and we'll get back to you.

To:

questions@barcodegiant.com

Name*:

Email*:

Phone:

Message*:

I live outside of USA/Canada

Spam protection*: Type "barcode"in the field below.

Intermec PB42 Details

Application
Thermal receipt printing

Physical Characteristics
Depth: 3.1 inches (7.87 cm)
Height: 7.1 inches (18.03 cm)
Width: 6.62 inches (16.82 cm)
Weight: 3.0 lb (1.36 kg) w/ 2 battery packs and full roll receipt paper
Drop test: 4 ft to concrete

Print Specifications
Print Width: 4.1 inch (104 mm)
Element Size: 0.0049 inch (0.125mm)
Minimum graphical element: 0.010 inch (0.254 mm)

Print Speed
2 ips (50 mm/sec)

Print Resolution
203 DPI (8 dots/mm)

Receipts
Max. Width: 4.4 inch (111.8 mm)
Thickness: 0.002 to .0044 inch (0.05 to 0.112 mm)
Tracking: Center
Style: Roll-fed or fanfold
Label Roll max diameter: 2.65 inches (67 mm)
Label Roll Core ID: 0.75 inch (19.05 mm)
Media Type: Receipt paper

Standard Interface

• Serial RS-232 (115 kbps)
• USB v.1.1
• Class 1 Bluetooth^®

Optional Interface

• Class 1 BlueTooth^® - range up to 100 m (328 feet)

Character Sets

• West European or Latin No. 1 and 9 for the following languages: Danish, Dutch, English, Faeroese, Finnish, French, German, Icelandic, Irish, Italian, Norweigian, Portuguese, Spanish, and Swedish.
• East European or Latin No. 2 for the following languages: Albanian, Czech, English, German, Hungarian, Polish, Rumanian, Serbocroation, Slovak, and Slovene.
• Cyrillic for the following languages: Bulgarian,Byelorussian, English, Macedonian, Russian, Serbocroation, and Ukrainian.
• Arabic
• Greek
• Hebrew
• U.S. standard
• Europe multilingual
• Code Page requirements for Far East
  - Thai extended
  - Simplified Chinese (GB2312)
  - Traditional Chinese (Big5)
   - Japanese
• Korean_Wansung

Font types
40 column, normal, bold, 80 column, normal, bold, 132 column, normal, bold

Standard Memory

• 16 MB SDRAM
• 4 MB Flash

LED Indicators

• Intermec Ready-to-Work Indicator – Blue light
• Radio –Green Flashing
• Battery – Green/Red

Power Supply
AC Adapter: 50 Watt
Voltage Range: 12 V ± 5%.
Rechargeable Li-Ion Battery : 7.2V, 2.4A-H. Each printer ships standard with two batteries (batteries do not ship with vehicle mount option).

Operating Environment
Operating: -20°C (-4°F) to 50°C (122°F)
Non-operating: -30°C (-22°F) to 70°C (158°F)
Battery Charging: 0°C (32°F) to 50°C (122°F)
Relative Humidity: 10% to 90% non-condensing

Regulatory Approvals
North America UL and cUL Listed, UL 60950; Europe TÜV Rheinland GS Licensed, EN 60950; Mexico NYCE CERTIFIED, NOM 19; Other Countries EN 60950 CB

EMC Approvals
USA FCC Title 47, Part 15, Subpart B, Class B; Europe EMC Directive (EN 55022 Class B + EN 55024); CISPR22
