Photo of Intermec PC4
Intermec logo

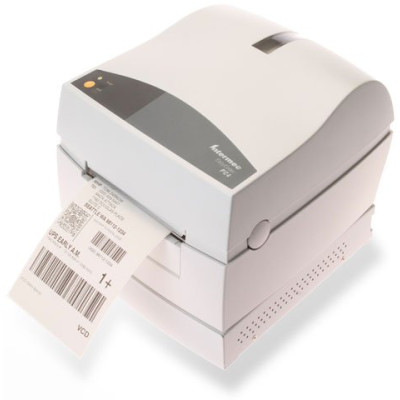

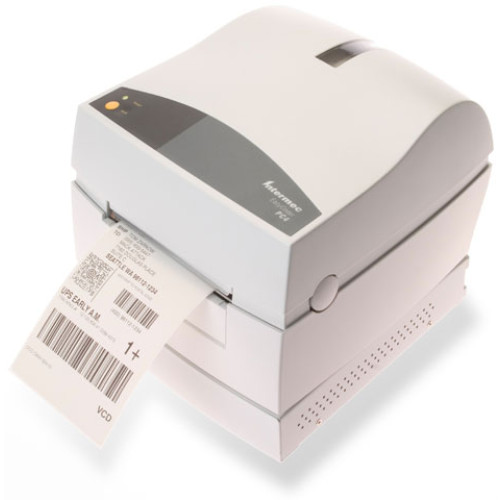

Intermec PC4 Printer

This product is discontinued and replaced by the
Intermec PF8 Series: PF8t Intermec
PF8 Series: PF8t
Perfect for new installations, the Intermec PC4 is easy to set up and easy to use. All needed cables, software, drivers and even labels are included with the printer when it ships, making the PC4 ideal for busy or inexperienced users. The PC4 features RS-232, USB and parallel interfaces, a choice of 200 or 300 dpi resolution, and a battery option for mobile printing. The Intermec PC4 is compatible with the EasyCoder 91 and the EasyCoder 7422 applications. Includes Intermec LabelShop START barcode label design software.
PC4 Options
Part # DescriptionAvailabilityPriceOrder
PC4C05100000 EasyCoder PC4, Thermal transfer Printer (Standard Firmware, China Power cord and Power supply, Tear Off and Self Strip with LTS and 203 dpi) Check Availability Call for Details
PC4C01100000 EasyCoder PC4, Thermal transfer Printer (Standard Firmware, EU and UK Power cord, Tear Off and Self Strip with LTS and 203 dpi) Check Availability Call for Details
PC4C01000000 EasyCoder PC4, Direct thermal Printer (Standard Firmware, EU and UK Power cord, Direct thermal, Tear Off and Self Strip with LTS and 203 dpi) Check Availability Call for Details
PC4C00300000 EasyCoder PC4, Direct thermal Printer (Standard Firmware, US Power cord, Thermal transfer Thick Media, Tear-Off and Self Strip with LTS, 203 dpi, Serial, Parallel and USB Ports, 2MB DRAM and 1MB Flash) Check Availability Call for Details
PC4C00111000 EasyCoder PC4, Thermal transfer Printer (Standard Firmware, US Power cord, Cutter and 300 dpi) Check Availability Call for Details
PC4C00110000 PC4, Thermal transfer Printer, Standard Firmware, US Power cord, Cutter, 203 dpi, serial, parallel and USB Ports, 2MB DRAM and 1MB Flash Check Availability Call for Details
PC4C00101000 PC4, Thermal transfer printing, US Power cord, Tear-Off and Self Strip with LTS, 300 dpi, Serial, Parallel and USB Ports and Standard Memory) Check Availability Call for Details
PC4C00100000 This part is replaced by PF8TA03000000.
PC4, Thermal transfer printing, US Power cord, Tear Off and Self Strip with LTS, 203 dpi, Serial, Parallel and USB Ports, 2MB DRAM and 1MB Flash)
See Replacement Call for Details
PC4C00000000 PC4, Direct thermal only printing, US Power cord, Tear-Off and Self Strip with LTS, 203 dpi, serial, parallel and USB Ports, 2MB DRAM and 1MB Flash Check Availability Call for Details
PC4B01100000 PC4, Thermal transfer, 200 dpi, serial, parallel and USB interfaces, 2MB RAM, 1MB flash, UK/European Power cord and tear-off and self-strip with LTS. Check Availability Call for Details
PC4B00110000 PC4, Thermal transfer, 200 dpi, serial, parallel and USB interfaces, 512KB RAM, 1MB flash, US Power cord and cutter. Check Availability Call for Details
PC4B00101000 This part is replaced by PC4C00101000.
PC4, Thermal transfer, 300 dpi, serial, parallel and USB interfaces, 2MB RAM, 1MB flash, US Power cord and tear-off and self-strip with LTS.
See Replacement Call for Details
PC4B00100000 This part is replaced by PC4C00100000.
PC4, Thermal transfer, 200 dpi, serial, parallel and USB interfaces, 2MB RAM, 1MB flash, US Power cord and tear-off and self-strip with LTS.
See Replacement Call for Details
PC4B00011000 PC4, Direct thermal only, 300 dpi, serial, parallel and USB interfaces, 2MB RAM, 1MB flash, US Power cord and cutter. Check Availability Call for Details
PC4B00001000 PC4, Direct thermal only, 300 dpi, serial, parallel and USB interfaces, 2MB RAM, 1MB flash, US Power cord and tear-off and self-strip with LTS. Check Availability Call for Details
PC4B00000000 PC4, Direct thermal only, 200 dpi, serial, parallel and USB interfaces, 2MB RAM, 1MB flash, US Power cord and tear-off and self-strip with LTS. Check Availability Call for Details

Intermec PC4 Details

Physical Characteristics
Length:
 257 mm (10.11 in)
Height: 167 mm (6.58 in)
Width: 230 mm (9.06 in)
Weight: 2.3 kg (5.07 lbs)

Print Specifications
Label Size –
Max. Width:
 118 mm (4.65 in)
Max. Length: Standard: 203 dpi - 1,200 mm (47 in), 300 dpi - 800 mm (31 in)
Print Direction: Prints text, bar codes and graphics in all four directions
Print Resolution: 8 dots/mm (203 dpi) or 12 dots/mm (300 dpi)
Print Width: 203 dpi - max. 104 mm (4.1 in)300 dpi - max. 102 mm (4.02 in)
Printing Speed: Selectable up to 4 ips (101.6 mm)

Media Specifications
Label Roll –
Max. Diameter: 127 mm (5 in)
Core Diameter: Min. 25.4 mm (1 in)Max. 38.1 mm (1.5 in)
Paper Width: Max. 118 mm (4.65 in)Min. 25.4 mm (1 in)
Label Length: Min. 6.35 mm (0.25 in)
Ribbon Roll – Max. length:100 m (328 ft)
Labels: A wide selection of stock and custom size labels are available.
Ribbons: Intermec transfer ribbons only (wax, hybrid, and resin) in widths of 33, 60, 63.5, 83.5, 89, and 110 mm (1.33, 2.36, 3.29, 3.5, and 4.33 in) centered on 110 mm (4.33 in) wide cardboard cores. Core inner diameter 13 mm (0.5 in) with notches. Max. ribbon roll diameter 41 mm (1.6 in).

Connect & Print
Intermec’s program offering “everything in the box”. The printer comes with all included: software, drivers, cables, labels, a handy QuickGuide to facilitate getting started, and a PrinterCompanion CD with label design program, Windows driver and documentation.

Software

  • EasyCoder PC4 Config Tool - Font & Firmware downloading tool
  • Intermec’s LabelShop START label design software
  • InterDriver for Microsoft Windows Supports: Windows 95, 98, 2000, XP, and NT 4.0

Characters/Fonts
5 resident alphanumeric fonts that are expandable 8 times horizontally and 9 times vertically. Also includes DOS 852 Latin 2 (Cyrillic II / Slavic), DOS 860 Portuguese New in 6.10, DOS 857 Turkish, DOS 861 Icelandic, DOS 862 Hebrew, DOS 855 Cyrillic, DOS 866 Cyrillic CIS 1, DOS 851 Greek 1, DOS 869 Greek 2, Windows 1251 Cyrillic, Windows 1254 Turkish, Windows 1255 Hebrew.
Printing of graphics, symbols, and downloading of additional fonts is also possible.

Bar code Symbologies
All major 1-dimensional bar code symbologies are available, plus five2-dimensional codes: MaxiCode, PDF417, DataMatrix, QR-Code, and Composite Code EAN/ECC for EAN/UCC 128 w/ CC-C.

Environment
+5° to +40°C (+40° to +104°F).

Humidity
10–90% RH non-condensing.

Power Supply
Separate power supply unit –Input: 100–240 V AC/50–60 Hz, 1.9 AOutput: 24 V DC, 3.0 A

Memory
Standard: 1MB Flash, 2 MB DRAM, Optional: 1MB Flash

Interface
Standard: RS-232C, USB v.1.1, and Centronics

Protocol
XON/XOFF, DSR/CTS

Operator Control
One multi-color LED indicator lamp and one Print/Feed key

Regulatory Approvals
CE, FCC Class A, C-UL, UL, GS, IEC 950/EN 60950, CB, MIC, CCC, VCCI, C-TIC, BSMI, NOM

Options
Flash memory cartridge, Serial communication cable, RS232 Scanner Cable, Asian fonts cartridges, Cutter unit, Keyboard display unit, EasyLAN 10 External Ethernet adapter, 300 dpi, Mobile Battery Unit.

The Intermec PC4 is also known as the Intermec Technologies PC4 .
