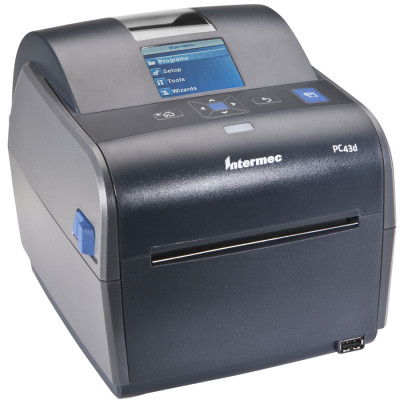

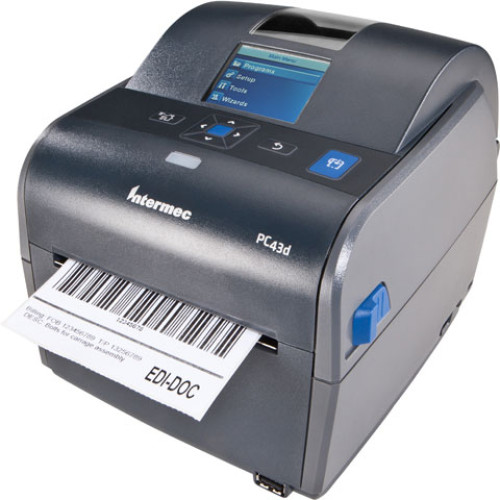

Intermec PC43d Printer

The Intermec PC43d is designed to set a new standard in user friendliness and flexibility. PC43d features a multi-language LCD or Icon-graphics user interface for maximum ease of use. User-installable connectivity options and accessories ensure that PC43d will fit your business needs both today and tomorrow. Its low cost and fast operation make the PC43d the smart choice for light-duty labeling applications where users need a reliable, easy-to-use printing solution.

Earn up to $625 back on a new Intermec thermal printer when you trade in any other thermal printer.
Offer valid through December 31, 2015. Learn more »

Print Method ?

Printer Type ?

Interface Options

Print Resolution ?

Maximum Print Width ?

Included Features

Print Speed ?

  • 8 (7)
  • 6 (3)
PC43d Options
Part # DescriptionAvailabilityPriceOrder
PC43DA00000201 PC 43d, Direct thermal printing, 4" print width, 203 dpi, USB interface, Icon Display, US power cord. Ships Today $345.00
Retail $460
Save 25%
PC43DA00000301 PC 43d, Direct thermal printing, 4" print width, 300 dpi, USB interface, Icon Display, US power cord. Ships in 24-48 Hours $457.50
Retail $610
Save 25%
PC43DA00100201 PC 43d, Direct thermal printing, 4" print width, 203 dpi, USB interface, LCD Display, Real-time clock, US power cord. Ships Today $420.00
Retail $560
Save 25%
PC43DA00100301 PC 43d, Direct thermal printing, 4" print width, 300 dpi, USB interface, LCD Display, Real-time clock, US power cord. Ships Today $532.50
Retail $710
Save 25%
PC43DA10100201 PC43d, Direct thermal printing, 4" print width, 203 dpi, USB interface, Asian/Latin American LCD Display, Real-time clock, US power cord. Ships in 24-48 Hours $446.25
Retail $595
Save 25%
PC43DA10100301 PC43d, Direct thermal printing, 4" print width, 300 dpi, USB interface, Asian/Latin American LCD Display, Real-time clock, US power cord. Ships in 24-48 Hours $543.75
Retail $725
Save 25%
PC43DA01000201 PC43d, 4" DIRECT THERMAL DESKTOP PRINTER WITH ICON DISPLAY, USB HOST PORT, Ethernet, 203 dpi, INCLUDES AMERICAS POWER CORD Ships in 24-48 Hours $478.50
Retail $638
Save 25%
PC43TA01100201 PC43d, 4" THERMAL THERMAL DESKTOP PRINTER WITH LCD DISPLAY, USB HOST PORT, Ethernet, Real-time clock, 203 dpi, INCLUDES AMERICAS POWER CORD Ships in 24-48 Hours $607.50
Retail $810
Save 25%
PC43DA01100201 PC43d, 4" DIRECT THERMAL DESKTOP PRINTER WITH LCD DISPLAY, USB HOST PORT, Ethernet, Real-time clock, 203 dpi, INCLUDES AMERICAS POWER CORD Ships in 24-48 Hours $543.00
Retail $724
Save 25%
PC43TA01000201 PC43d, 4" THERMAL TRANSFER DESKTOP PRINTER WITH ICON DISPLAY, USB HOST PORT, Ethernet, 203 dpi, INCLUDES AMERICAS POWER CORD Ships Today $543.00
Retail $724
Save 25%

Intermec PC43d Details

Interfaces

Standard: USB Device Type-B connector v.2.0 high speed, USB Host Type-A connector v.2.0 high speed
Field Installable: Ethernet 10/100 Mbps module, Dual-radio module (802.11 b/g/n and Bluetooth® V2.1), USB-to-Serial adapter (RS-232), USB-to-Parallel adapter
User Interfaces:
Choice of:
• 2.36" VGA LCD 480 x 234 resolution in 10 languages, 8 buttons and ready-to-work LED
• Graphical back-lit Icons: cover open, paper out, ribbon out (PC43t), general error, maintenance, pause, thermal printhead too hot, data status, wireless status (if installed), Bluetooth® status (if installed), ready-to-work LED, and one Print/Feed button
• User-configurable audio sounds with volume levels.
Supported Protocols:
Serial Flow Control: XON/XOFF, RTS/CTS
Wireless Protocol: WEP static (64/128bits), WPA, WPA2, WEP dynamic, EAP-PEAP, EAP-TTLS, LEAP, EAP-FAST, EAP-TLS, CCX compliant level 3.
Graphics: Supports user-defined fonts and graphic formats including BMP, GIF, PCX, and PNG.

Memory

Standard: 128 MB Flash, 128 MB RAM (DDR2)
Optional: Up to 32 GB via user USB thumbdrive

Physical Characteristics

Height:
PC43d 4" DT: 167 mm (6.6 in)
PC43t 4" TTR Icon: 182 mm (7.2 in)
PC43t 4" TTR LCD: 227 mm (8.9 in)
Width:
PC43d 4" DT: 180 mm (7.1 in)
PC43t 4" TTR: 210 mm (8.3 in)
Depth:
PC43d 4" DT: 215 mm (8.4 in)
PC43t 4" TTR: 281 mm (11.1 in)
Weight:
PC43d 4" DT: 1.72 kg (3.80 lbs)
PC43t 4" TTR: 2.70 kg (5.95 lbs)

Power

Separate power supply
Input: 100–240 V AC/50–60 Hz, 1.5 A
Output: 24 V DC, 2.5 A Energy-Star Compliant

Print Specifications

Label Roll Core:
Min. 25.4 mm (1 in)
Max. 38.1 mm (1.5 in)
Label Roll Max Diameter: 127 mm (5 in)
Max Label Width:
PC23d: 60 mm (2.36 in)
PC43: 118 mm (4.7 in)
Max Length:
203 dpi – 1727 mm (68 in)
300 dpi – 900 mm (35 in)
Print Direction: Prints text, bar codes and graphics in all four directions
Print Speed: Selectable up to 8 ips (203.2 mm/sec) for 203 dpi; 6 ips (152.4 mm/sec) for 300dpi
Print Width:
PC43:
203 dpi – max. 104 mm (4.1 in)
300 dpi – max. 106 mm (4.2 in)
PC23d:
203 dpi – max. 56 mm (2.2 in)
300 dpi – max. 54 mm (2.1 in)
Resolution: 8 dots/mm (203 dpi) or 12 dots/mm (300 dpi)

Supported Bar Code Symbologies

1-Dimensional: All major 1-dimensional bar code symbologies are available
2-Dimensional: Aztec, Code 16K, Code 49, Data Matrix, Dot Code, EAN-8, EAN-13, EAN.UCC 128, Grid Matrix, HIBC 39, HIBC 128, MaxiCode, MSI (modified Plessey), PDF417, Micro PDF417, Planet, Plessey, Postnet, QR-Code, RSS-14 (variations)

Accessories

User Accessories: Dispenser with LTS, Cutter Unit with LTS (PC43d & PC43t) user settable partial or full cut, Front Label Tray (PC43d & PC43t), 300 dpi, Battery Unit (PC43d), Linerless (PC43d & PC43t), Power Adapter Tray (PC43d), Printer Case Lock

Software

Printer Command Languages:
• C# for Printers
• IPL
• Direct Protocol
• ZSim (ZPL)
• DSim (DPL)
• XML enabled for SAP® AII and Oracle® WMS

Applications / Drivers:
• InterDriver™ Windows printer driver
• Intermec Certified Device Types for SAP®
• Intermec label design and print package

Smart Printing Languages:
C# for Printers
• Smart Printing Developer Resource Kit
• Write apps with .NET-compatible development environments
Intermec Fingerprint
• Use Intermec Fingerprint ApplicationBuilder (IFAB)

Configuration & Device Management Support:
• PrintSet for printer configuration
• SmartSystems™
• Sophisticated web interface for configuration, upgrade and 1:1 management
• Wavelink Avalanche™

The Intermec PC43d is also known as the Intermec Technologies PC43d .
