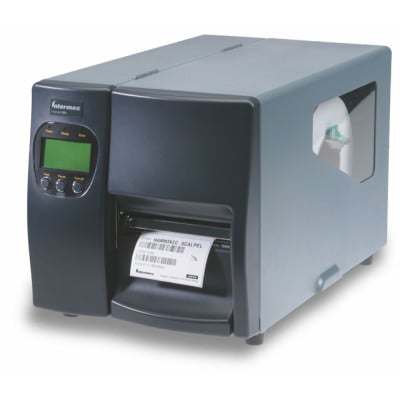

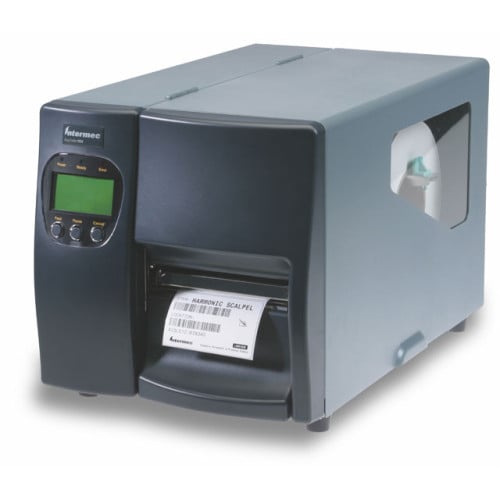

Intermec PD4 Printer

This product has been discontinued. It is replaced by the Intermec PD41.

The Intermec PD4 is the perfect barcode printer for medium duty industrial applications requiring basic performance and reliability at an affordable price. The PD4 features a sturdy metal chassis, covers, and print mechanics to ensure long lasting performance in industrial, demanding environments. The PD4 is equipped with a movable label sensor for gaps, black marks and punched holes, and it can utilize both ink-in and ink-out ribbon. Featuring serial, parallel and USB interfaces standard, the PD4 can easily fit in to any existing setup. Capable of housing an industry-standard 8 inch roll of labels and 1500 feet of ribbon, the PD4 limits downtime for loading media to a minimum. Truly versatile, it can print on a wide range of media of different thicknesses. Includes Intermec LabelShop START barcode label design software.

Questions?

1-888-875-7170

Email We respond to every email

Information:	Specifications \| Ask a question \|
Accessories:	Accessories/Options \| Bar code Software \| Intermec PD4 service contract \|
Supplies:	Intermec PD4 Label \| Intermec PD4 Ribbon \| Intermec Print head \|

Get money back on a new Intermec Printer!
Program running through June 30, 2013
Learn more »

PD4 Options

Part #	Description	Availability	Price
PD4B51000020	PD4, PTR, PD4B, Chinese Cord, ESIM, 203 dpi	Check Availability	Call for Details
PD4B50000030	PD4, PTR, PD4B, Chinese Cord, ESIM, DISP, 300 DPI	Check Availability	Call for Details
PD4B50000020	PD4, PTR, PD4B, Chinese Cord, ESIM, DISP, 203 dpi	Check Availability	Call for Details
PD4B01000020	PD4, PTR, PD4B US, BUT, ESIM, 203 dpi	Check Availability	Call for Details
PD4B00000030	PD4, Printer (300 dpi, 4 inch Print width, 6 ips Print speed, Serial, Parallel and USB Interfaces, ESIM, Display and US Cord)	Check Availability	Call for Details
PD4B00000020	PD4, Printer, 203 dpi, 4 inch Print width, 6 ips Print speed, Serial, Parallel and USB Interfaces, ESIM, front display and US Cord	Check Availability	Call for Details
PD4A01000020	PD4, Thermal transfer, 203 dpi, 6 ips, 4" width, serial, parallel and USB interfaces, ESIM, no front display and US power cord	Check Availability	Call for Details
PD4A00000020	This part is replaced by PD4B00000020. PD4, Thermal transfer printing, 203 dpi, 6 ips, 4" width, serial, parallel and USB interfaces, ESIM, front display and US power cord	See Replacement	Call for Details

Intermec PD4 Details

Physical Characteristics
Length: 455 mm (19.9 in)
Height: 283 mm (11.1 in)
Width: 276 mm (10.8 in)
Weight: 13 kg (28.7 lbs.)

Print Specifications
Max.Width: 104 mm (4.09 in) at 203 dpi; 106 mm (4.24 in) at 300 dpi.
Max. Length: 1270 mm (50 in) at 203 dpi; 559 mm (22 in) at 300 dpi.

Print Speed
50-150 mm/s (2-6 ips) at 203 dpi
50-100 mm/s (2-4 ips) at 300 dpi

Print Direction
Prints smooth text, any size bar codes and graphics in all four orthogonal directions.

Print Resolution
8 dots/mm (203 dpi), 11.8 dots/mm (300 dpi)

Label/Ticket/Tag
Max.Width: 118.0 mm (4.65 in)
Min. Width: 25.0 mm (1 in)
Thickness: 0.06-0.25 mm (2.4-9.8 mil)
Style: Roll-fed, die-cut, continuous or fanfold labels, tags or tickets
Label Roll max diameter: 213 mm (8.35 in)
Label Roll Core: 38-76 mm (1.5-3 in)
Media Types: Direct thermal and Thermal
Transfer Media: Roll-Fed, Fanfold with gaps, Blackmark, Punched holes, and Continuous

Ribbon
Max ribbon length: approx. 450 m (18 000 in)
Ribbon Roll Core: 25 mm (1 in)
Ribbon Type: Wax, wax/resin, resin
Coated side: Ink in / Ink out

Interfaces

Serial RS-232, up to 38 400 kB/s
USB 1.1
Parallel Centronics

Protocols
Printer command language: ESim
Communication Protocols: XON/XOFF, DSR/DTR

Software
Applications, Drivers, and Tools available on the PrinterCompanion CD include:

Driver for Windows 98, Me, NT 4.0, 2000, XP
Intermec LabelShop START label design and print package
EasyCoder PD4 Config Tool for installation of additional fonts, images, and firmware upgrades
Asian Fonts Installation Tool

Bar code Symbologies
1-dimensional: Code 39, Code 93, Code 128 (subset A,B,C), UCC 128, UPC A / E (add on 2 & 5), I 2 of 5, EAN 8 / 13 (add on 2 & 5), Codabar, Post NET, EAN 128, DUN 14
2-dimensional: DataMatrix, PDF417, MaxiCode, QR Code

Characters Sets
5 resident alphanumeric fonts (included OCR A & B) expandable 8 times horizontally and 9 times vertically. All fonts in 4 directions rotation (0, 90, 180, 270 degrees)

Asian double-byte fonts in 8 directions rotation (Traditional Chinese, Simplified Chinese, Japanese Kanji, Korean Hangul), and additional Windows Bit-map fonts are available on the Printer Companion CD and the Intermec corporate website.

Graphics
Supports PCX fi le format.

Memory
Standard: 2MB Flash memory 2MB DRAM
Optional: 2MB additional Flash memory

Display
Back-lit graphic LCD 128 x 64 dots*
3 LED indicator lamps

Keypad Control Panel
Three Keys: Feed, Pause, Cancel

Power Supply
115/230VAC auto-switch w/PFC
Voltage Range: 100-240 VAC ?10%.
Frequency Range: 45-65 Hz

Operating Environment
Temperature: +5°C - 40°C (+40°F - 104°F)
Humidity: 30-85% RH non-condensing
Noise: 50 dB (printing), no noise standby

Regulatory Approvals
CCC, BMSI, CE, FCC Class A, CUL

Field Options and Accessories
Cutter*, Self-Strip* (Peel-Off ), Internal Rewinder*, Flash Memory, EasyLAN 10 External Ethernet Adapter

*Printer models with front panel display only
