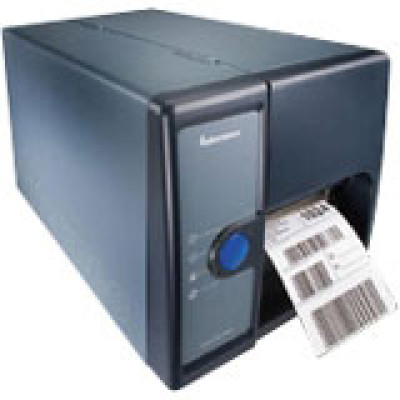

Intermec PD41 Printer

Application
Direct Thermal and Thermal Transfer label, ticket and tag printing.

Physical Characteristics
Length: 453 mm (17.8 in)
Height: 273 mm (10.8 in)
Width: 270 mm (10.6 in)
Weight: 13 kg (28.7 lbs)

Print Specifications
Max. Width:104 mm (4.09 in) at 203 dpi
105.7 mm (4.16 in) at 300 dpi
Max. Length: 1520 mm (59.8 in) at 203 dpi
1028 mm (40.5 in) at 300 dpi

Print Speed
50-150 mm/s (2-6 ips) at 203 dpi
50-100 mm/s (2-4 ips) at 300 dpi

Print Direction
Prints smooth text, any size bar codes and graphics in all four orthogonal directions.

Print Resolution
• 8 dots/mm (203 dpi)
• 12 dots/mm (300 dpi, option)

Label/Ticket/Tag
Width: 25-118 mm (1.00-4.64 in) 25-114 mm (1.00-4.48 in with cutter)
Thickness: 60-250 μm (2.3 to 9.8 mil)
Style: Roll-fed, die-cut, continuous or fanfold labels, tags or tickets
Label Roll max. diameter: 213 mm (8.35 in) 190 mm (7.5 in) with internal rewinder (full roll of liner/backing paper)
Label Roll Core: 37.5 or 75 mm (1.5 or 3 in)
Media Type: Direct Thermal or Thermal
Transfer media: Roll-fed, Fanfold and Continuous.

Ribbon
Max. Ribbon Length: 450 m (18 000 in)
Ribbon Roll Core Diam: 25,4 mm (1.0 in)
Ribbon Width: 30-110 mm (1.18-4.33 in)
Winding Direction: Ink-in or Ink-out

Sensors
• Adjustable Gap, Blackmark and Punched Hole sensors
• Out-of-Media sensor
• Out-of-Ribbon sensor
• Label Taken sensor

Interfaces
Standard:
• Serial RS-232
• USB v. 2.0 full speed
• Parallel or EasyLAN Ethernet (depending on configuration)
Optional:
• Parallel IEEE 1284 or
• EasyLAN integrated Ethernet: RJ-45
connector for 10BaseT or 100baseTX
Supported Protocols: TCP/IP-suite (TCP,UDP, ICMP, IGMP, etc.), LPR/LPD, FTP, BOOTP, DHCP, HTTP, SNMP, SMTP, SNMP-MIB II supported (over UDP/IP), private enterprise MIB included

Software
• InterDriver Windows printer drivers with ActiveX Controls
• Intermec LabelShop START label design and print package
• PrintSet for printer configuration
• IPNM (Intermec Printer Network Manager) for administration of network connected printers.

Bar code Symbologies
1-dimensional: Codabar, Code 11, Code 39, Code 39 full ASCII, Code 39 w. checksum, Code 93, Code 128, Code 128 Subset A-C, DUN-14/16, EAN-8, EAN-13, EAN-128, EAN-128 Subset A-C, Five-Character Supplemental Code, Industrial 2 of 5, Industrial 2 of 5 w. checksum, Interleaved 2 of 5, Interleaved 2 of 5 w. checksum, Interleaved 2 of 5 A, Matrix 2 of 5, Postnet,
Straight 2 of 5, Two-Character Supplemental Code, UCC-128 Serial Shipping Container Code, UPC-5 digits Add-On Code, UPC-A, UPC-D1 to D5, UPC-E, UPC Shipping Container Code, RSS, Planrt, Plessey

2-dimensional: Code 16K, Code 49, Data Matrix, MaxiCode, MSI(modified Plessey), PDF 417, QR Code, MicroPDF417, EAN.UCC Composite

Character Sets
15 TrueDoc scalable fonts including 12 UNICODE (1 WGL4 including Latin, Baltic, Cyrillic, Greek and Turkish characters ), 1 symbol, 1 OCR-A, 1 OCR-B. Font cache for maximum performance. ATF font support. Asian, Hebrew
and Arabic fonts available as option.

Graphics
Supports PCX file format, traditional BT201 Intelhex format and High-Speed Image Buffer printing

Memory
Standard: 4MB Flash memory 8MB SDRAM (1 Compact Flash slot)
Optional: Up to1GB CompactFlash (type 1) memory

Keypad Control Panel
One Print/Pause button
Four LED indicators; Power, Data Transfer, Error/
Warning, Ready-to-Work

Power Supply
Voltage Range: 100-240 VAC ±10% auto switch
Frequency Range: 45-65 Hz

Operating Environment
Temperature: +5°- 40°C (+40°- 104°F)
Humidity: 20-85% non-condensing free air

Regulatory Approvals
FCC, UL, cUL, CE, NOM

Field Installable Options
Internal Rewinder, Cutter, CompactFlash Memory Cards, Parallel Interface, EasyLAN
integrated Ethernet interface
