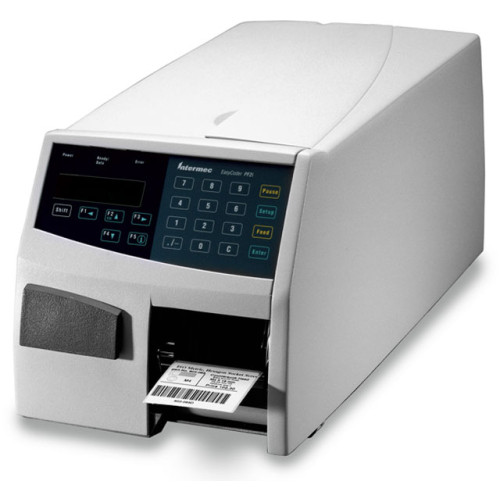

Photo of Intermec PF2i
Intermec logo

Intermec PF2i Printer

The Intermec PF2i printer with 2-inch-width printing is specially designed to provide rigorous bar code label printing in areas where space is limited. Users can enjoy all the features and benefits of larger bar code label printers, including standalone smart printing, without giving up valuable space. The PF2i acts as a "smart client" executing user-defined programs. This means the printer eliminates the PC, operates additional hardware (e.g. scanners, other printers, conveyors), accesses information from the network, and retains the ability to change as needed with the application for additional functionality. Using Fingerprint, the PF2i easily adapts to changing host environments and applications. This printer grows with your business and is not restricted by manufacturer printer command languages.

Included Features

Print Resolution ?

Interface Options

Print Method ?

Maximum Print Width ?

Printer Type ?

Print Speed ?

  • 8 (1)
PF2i Options
Part # DescriptionAvailabilityPriceOrder
PF2ID00100001121 PF2i, Long Door, Universal Firmware, Self Strip, LTS, Real-time clock, DT 203 dpi Ships Today $1,402.74
Retail $2151
Save 34%
PF2TD020000221S1 PF2i, EasyCoder PF2t, Direct thermal Printer, US, Dome, LH, LTS and 203 dpi Check Availability Call for Details
PF2ID01100001121 PF2i Mid-Range, Thermal transfer Printer (203 dpi, Short Door, Universal FW, Self-Strip/LTS, Real-time clock) Check Availability Call for Details
PF2ID01100000021 PF2i, Short Door, Universal Firmware, Self Strip, LTS, Real-time clock, DT 203 dpi Check Availability Call for Details
PF2ID01100000020 PF2i, Short Door, Universal Firmware, Self Strip, LTS, Real-time clock, Thermal transfer 203 dpi Check Availability Call for Details
PF2ID00100001120 PF2i Mid-Range, Thermal transfer Printer (203 dpi, Long Door, UNIV FW, Self-Strip/LTS, Real-time clock) Check Availability Call for Details
PF2ID00100000021 PF2i, Long Door, Universal Firmware, DT 203 dpi Check Availability Call for Details
PF2ID00100000020 PF2i, Long Door, Universal Firmware, Thermal transfer 203 dpi Check Availability Call for Details
PF2IC91100300021 PF2i, Direct thermal Printer (IPL Firmware, No Cord, Short Door, EasyLAN Integrated Ethernet Interface 10/100, No Option 1, 16MB DRAM, 4MB Flash, Label Roll Hanger, No Option 1, No Option 2 and DT 203 dpi) Check Availability Call for Details
PF2IC90100300020 PF2i, Thermal transfer Printer (IPL Firmware, No Cord, Long Door, EasyLAN Integrated Ethernet Interface 10/100, No Option 1, 16MB DRAM, 4MB Flash, Label Roll Hanger, No Option 1, No Option 2 and TT 203 dpi) See Replacement Call for Details
PF2IC90000301120 PF2i, Thermal transfer Printer (IPL Firmware, No Cord, Long Door, No Network Interface, No Option 1, 16MB DRAM, 4MB Flash, Label Roll Hanger, Self Strip with Backing Paper Rewind + LTS, Real-time clock and TT 203 dpi) Check Availability Call for Details
PF2IC81100300021 PF2i, Direct thermal Printer (Fingerprint-DP Firmware, No Cord, Short Door, EasyLAN Integrated Ethernet Interface 10/100, No Option 1, 16MB DRAM, 4MB Flash, Label Roll Hanger, No Option 1, No Option 2 and DT 203 dpi) See Replacement Call for Details
PF2IC81000300021 PF2i, Direct thermal Printer (Fingerprint-DP Firmware, No Cord, Short Door, No Network Interface, No Option 1, 16MB DRAM, 4MB Flash, Label Roll Hanger, No Option 1, No Option 2 and DT 203 dpi) Check Availability Call for Details
PF2IC81000300020 PF2i, Thermal transfer Printer (Fingerprint-DP Firmware, No Cord, Short Door, No Network Interface, No Option 1, 16MB DRAM, 4MB Flash, Label Roll Hanger, No Option 1, No Option 2 and TT 203 dpi) See Replacement Call for Details
PF2IC80100301121 PF2i, Direct thermal Printer, Fingerprint-DP Firmware, No Cord, Long Door, EasyLAN Integrated Ethernet See Replacement Call for Details
PF2IC80100300020 PF2i, Thermal transfer Printer (Fingerprint-DP Firmware, No Cord, Long Door, EasyLAN Integrated Ethernet Interface 10/100, No Option 1, 16MB DRAM, 4MB Flash, Label Roll Hanger, No Option 1, No Option 2 and TT 203 dpi) See Replacement Call for Details
PF2IC80000301121 PF2i, Direct thermal Printer (Fingerprint-DP Firmware, No Cord, Long Door, No Network Interface, No Option 1, 16MB DRAM, 4MB Flash, Label Roll Hanger, Self Strip with Backing Paper Rewind + LTS, Real-time clock and DT 203 dpi) Check Availability Call for Details
PF2IC80000300021 PF2i, Direct thermal Printer (Fingerprint-DP Firmware, No Cord, Long Door, No Network Interface, No Option 1, 16MB DRAM, 4MB Flash, Label Roll Hanger, No Option 1, No Option 2 and DT 203 dpi) See Replacement Call for Details
PF2IC80000300020 PF2i, Thermal transfer Printer (Fingerprint-DP Firmware, No Cord, Long Door, No Network Interface, No Option 1, 16MB DRAM, 4MB Flash, Label Roll Hanger, No Option 1, No Option 2 and TT 203 dpi) Check Availability Call for Details
PF2IC41100300021 PF2i, Direct thermal Printer, 203 dpi, 16MB DRAM, 4MB Flash, 115 VAC with US Cord, Fingerprint/DP Firmware, Short Door, EasyLAN Integrated Ethernet Interface 10/100, Label Roll Hanger, No Option 1, No Option 2 Check Availability Call for Details
PF2IB81031013020 PF2i, Fingerprint/DP Firmware, Short Door, Industrial + RS-232, Rotating Unwinder, Thermal transfer, 203 dpi Check Availability Call for Details
PF2IB41100000121 PF2i, Direct thermal Printer, 203 dpi, 8MB DRAM, 4MB Flash, 115 VAC with US Cord, Fingerprint/DP Firmware, Short Door, EasyLAN Integrated Ethernet Interface 10/100, No Option 1, Label Roll Hanger, Real-time clock, DT. Check Availability Call for Details
PF2IB41100000021 PF2i, Direct thermal Printer (115 VAC with US Cord, Fingerprint DP Firmware, Short Door, EasyLAN Ethernet Interface, No Option 1, 8MB DRAM, 4MB Flash, Label Roll Hanger and 203 dpi) Check Availability Call for Details
PF2IB41032001120 PF2i, US, Fingerprint/DP Firmware, Short Door, INDS with RS-422, Self Strip with Label Takeup Sensor, Clock, Thermal transfer Check Availability Call for Details
PF2IB41010000020 PF2i, US, Fingerprint/DP Firmware, Short Door, Parallel Interface Card, Thermal transfer, 203 dpi Check Availability Call for Details
PF2IB41000000021 PF2i, US, Fingerprint/DP Firmware, Short Door, Direct thermal Check Availability Call for Details
PF2IB40100001120 PF2i, US-FP/DP, Long Door, Ethernet, No I/O, DRAM + Flash, Hanger, SS-LTS, Real-time clock, Thermal transfer, 203 dpi Check Availability Call for Details
PF2IB40000000120 PF2i, US, Fingerprint/DP Firmware, Long Door, Clock, Thermal transfer, 203 dpi Check Availability Call for Details
PF2IB40000000021 PF2i, US, Fingerprint/DP Firmware, Long Door, Direct thermal, 203 dpi Check Availability Call for Details
PF2IB40000000020 PF2i, US, Fingerprint/DP Firmware, Long Door, No Network Interface Card, Thermal transfer, 203 dpi Check Availability Call for Details
PF2IB01100000021 PF2i, US, IPL, Short Door EasyLAN Integrated Ethernet Interface, Direct thermal, 203 dpi Check Availability Call for Details
PF2IB00010000021 PF2i, US, IPL, Long Door, Parallel Interface Card, Direct thermal, 203 dpi Check Availability Call for Details
PF2IB00000001021 PF2i, US/IPL, Long Door, No Interface, No I/O, DRAM + Flash, Hanger, SS-LTS, No Opt 2, Direct thermal, 203 dpi Check Availability Call for Details
PF2IB00000000021 PF2i, US/IPL, Long Door, No Interface, No I/O, DRAM + Flash, Hanger, No Opt 1, No Opt 2, Direct thermal, 203 dpi Check Availability Call for Details
PF2IB00000000020 PF2i, US, IPL, Long Door, NO Network Interface, Thermal transfer, 203 dpi Check Availability Call for Details

Intermec PF2i Details

Interfaces

Standard:
• Ethernet 10/100 Mbps
• RS-232, up to 115.2 kB/s
• Fingerprint/Direct Protocol: XON/XOFF, ENQ/ACK, DTR, RTS/CTS
• IPL: XON/XOFF, Intermec Std. Protocol
• USB 2.0

Optional:
• Parallel IEEE 1284
• Industrial Interface (8 digital in/out, 4 analog relays, 1 RS232/422/485 port)
• Dual Serial ports RS-232, RS-422, RS-485 and 20mA Current Loop

Wireless:
• IEEE 802.11 b/g
• Wi-Fi Certified, CCX (Cisco®) version 3 Certified
• WEP, WPA, WPA2, 802.11x (EAP-TTLS, LEAP, PEAP, FAST), 802.11i
• Multiple industrial antenna options for maximized coverage

Supported Protocols:
TCP/IP-suite (TCP, UDP, ICMP, IGMP, etc.), LPR/LPD, FTP, BOOTP, DHCP, HTTP, SNMPv3, SMTP.SNMP-MIB II supported (over UDP/IP), private enterprise MIB included. Supports IPv4 and IPv6.

Memory

Standard:
16MB Flash memory, 32MB SDRAM, 1 Compact Flash slot
Options:
1GB CompactFlash memory, multi-GB USB memory device (FAT16/FAT32 USB drivers supported)

Physical Characteristics

Length:
397mm (15.6 in)
Height:
178mm (7.0 in)
(big top): 205 mm (8.1 in)
Width:
194mm (7.6 in)
Weight:
5.5 kg (12 lbs)

Power

Input:
90 to 265 VAC, 45 to 65Hz
Consumption: Standby 15W; Peak 300W

Print Specifications

Max Width:
56 mm (2.2 in)
Max Length:
4095 mm (161.2 in)
Max Label Width:
60 mm (2.36 in)
Thickness:
3.0 to 7.5 mil
Style:
Roll-fed or fanfold
Label Roll Max Diameter:
(long door): 152.4 mm (6 in)
(short door): 213 mm (8.38 in)
Label Roll Core:
38-76mm (1.5-3 in)
Resolution:
8 dots/mm (203 dpi)
Print Speed:
100 – 200 mm/s (4 – 8 ips) variable
Media Type:
Direct thermal and thermal transfer label, ticket and tag printer. Also available in RFID configuration.

Supported Bar Code Symbologies

1-Dimensional:
All major 1D symbologies are supported.
2-Dimensional:
All major 2D symbologies are supported.

The Intermec PF2i is also known as the Intermec Technologies PF2i .
