The Intermec PM43c compact industrial printers are ready to deliver maximum uptime. Both models are available with either a tamper-proof color touch-screen in 10 languages or a universal icon interface. Reduce your total workforce training and device support needs with immediate notifications via the printer and the elimination of reconfiguration due to UI tampering.

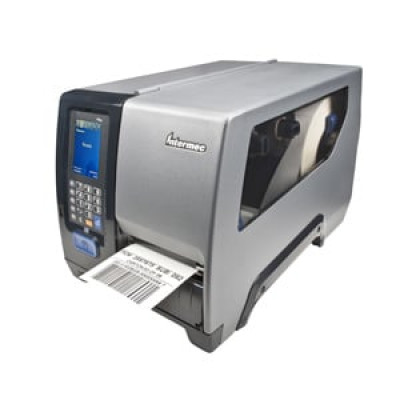

PM43/PM43c mid-range industrial printers are ideal for a wide range of applications within the distribution center / warehouse and manufacturing environments.
Ready - Fastest to Deploy. Seamlessly Fits Any Environment.
Large, color, multilingual, tamper-proof touch screen, or icon user interface
"No-touch" configuration capabilities
The only CCX- and WiFi-certified fixed printer with standard IPv6 implementation
Reliable - Maximizes Uptime. Built from 40 Years of Printing Innovation. Third-Generation Platform.
Precision Print, for consistent bar-code printing with pinpoint accuracy
Multilingual webpage loaded on every printer ensures easy device monitoring
Strong metal structure with metal door that can be locked for media protection
Perform - Increase Productivity and Process Efficiencies. Simple to Use.
Fastest throughput in its class
Powerful programmable capability, with ability to directly connect peripherals
Most connectivity options of any printer on the market
Humidity: 20 to 80% non-condensing Operating Temperature: +5C to +40C (+41F to +104F) Storage Temperature: -20C to +70C (-4F to +152F)
User Interfaces: Color Touch User Interface Icon User Interface User Interface Languages: Color Touch interface and Web Page support in English, Russian, German, French, Portuguese, Spanish, Italian, Korean, Simplified and Traditional Chinese Optional: - Parallel IEEE 1284 - Industrial Interface (8 digital in/out, 4 analog relays, 1 RS232/422/485 port) - Dual Serial ports RS-232, RS-422, RS-485 and 20mA Current Loop - Dual USB Host/Boot Wireless: - IEEE 802.11 b/g/n + Bluetooth - Wi-Fi Certified, CCX (Cisco) version 4 Certified - Static WEP (64 bit and 128 bit), Dynamic WEP (TLS, TTLS, PEAP, LEAP, EAP-FAST), WPA (THIP/CCKM Personal and Enterprise, WPA2 (AES-CCMP/CCKM Personal and Enterprise) - Multiple industrial-antenna options for maximized coverage Standard: - Ethernet 10/100 Mbps - RS-232, up to 115.2 kB/s Supported Protocols: TCP/IP-suite (TCP, UDP, ICMP, IGMP, etc.), LPR/LPD, FTP, BOOTP, DHCP, HTTP, SNMPv1/2c/3, (SMTP.SNMP-MIBII supported - over UDP/IP - private enterprise MIB included) - Supports IPv4 and IPv6 - "No-touch" configuration capability through embedded RFID chip Supported Serial Protocols - Fingerprint/Direct Protocol: XON/XOFF, ENQ/ACK, DSR/DTR, RTS/CTS - IPL: XON/XOFF, Intermec Std. Protocol - USB 2.0 - USB Host/Boot (X1 on PM43C, X2 on PM43) Graphics: Supports PCX, PNG, GIF and BMP file formats. Other formats supported with Label Generation Tools. Fonts: Monotype font engine Non-Latin fonts available through WTLE
SDRAM: 128MB Flash ROM: 128MB Memory/Storage Extensions: Multi-GB USB memory device (FAT16/FAT32 USB drivers supported)
Height: PM43: 294.61 mm (11.6 in) PM43c: 181 mm (7.13 in) PM43c with Dome Door: 244.87 mm (9.64 in) Length: PM43: 483.54 mm (19.04 in) PM43c: 431.84 mm (17 in) PM43c with Dome Door: 500.22 mm (19.04 in) Width: PM43: 284.2 mm (11.19 in) PM43c: 252.5 mm (9.94 in) PM43c with Dome Door: 252.5 mm (9.94 in) Weight: PM43: 15.82 kg (34.88 lbs.) PM43c: 12.5 kg (27.65 lbs.) PM43c with Dome Door: 12.71Kg (28.02 lbs.)
AC Voltage: 100 to 240 VAC, 45 to 65Hz PFC Regulation: IEC320/C14 Power Consumption: Standby 9W; Peak 300W
Max Width: Max. Width with 203 dpi: 108 mm (4.25 in) Max. Width with 300 dpi: 106 mm (4.17 in) Max. Width with 406 dpi: 104 mm (4.09 in) Max Length: Depending on width (203 dpi to 406 dpi): (1.2 m) 48 in to (4.8 m) 191 in Print Speed: 100 - 300 mm/s (4 - 12 ips) variable (203/300 dpi) 100 - 250 mm/s (4 - 10 ips) variable (406 dpi) Resolution: 8 dots/mm (203 dpi) 11.8 dots/mm (300 dpi) 16 dots/mm (406 dpi) Media Type: Labels and Tags, Linerless and Linered media Max Label Width: Max/Min Width: 114.3 /19.05 mm (4.5 /0.75 in) Thickness: 3 to 10.4 mil Style: Roll-fed or fanfold Sensing: Gap, notch, black mark, continuous Label Roll Max Diameter: 212.75 mm (8.375 in) Label Roll Core: 38 - 76 mm (1.5 - 3 in) Media Type: Ribbons Label Roll Max Diameter: 80 mm (3.15 in), approx. 450m Label Roll Core: Core ID: 25.4 mm (1 in) Media Type: Wax, mid-range, resin Media Type: RFID RFID Standards and Frequencies: 18000-6C / EPC Class 1 Generation 2 865-928 MHz radio configured to comply with local UHF RFID regulations including FCC and ETSI. Contact local representative for availability in particular regions.
Supported Bar Code Symbologies
All major 1D and 2D symbologies are supported. Standards Supported: UPC/EAN Shipping Container; UCC/EAN 128 Serial Shipping Container; MH10.8 Shipping Label; AIAG (shipping parts label); OGMARS; POSTNET; HIBCC; ISBT 128; GM1724; UPS shipping label; Global Transport Label
Printer Command Languages: - C# for Printers - IPL - Direct Protocol - ZSim (ZPL) - DSim (DPL) - XML enabled for SAP AII and Oracle WMS Applications / Drivers: - InterDriver Windows printer driver - Intermec Certified Device Types for SAP - Intermec label design and print package Smart Printing Languages: C# for Printers - Smart Printing Developer Resource Kit - Write apps with .NET-compatible development environments Intermec Fingerprint - Use Intermec Fingerprint ApplicationBuilder (IFAB) Configuration & Device Management Support: - PrintSet for printer configuration - SmartSystems - Sophisticated web interface for configuration, upgrade and 1:1 management - Wavelink Avalanche
Options and Accessories RFID UHF, integral self-strip unit with liner takeup, Label Taken Sensor (LTS), Full Batch Label/Liner Rewinder, parallel interface board, additional serial interface boards*, industrial interface boards*, real time clock, media supply hub, Collapsible Ribbon core cutter, Media low sensor, Linerless. *Not applicable when using IPL firmware.
The Intermec PM43c is also known as the
Intermec Technologies PM43c .
