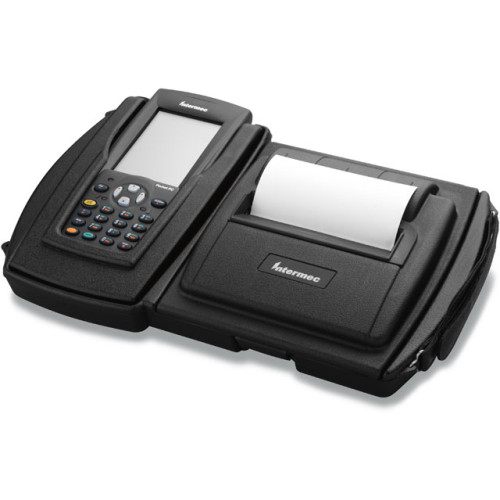

Intermec PW40 Portable Printer

Intermec PW 50 A newer version of this item is available.
It is replaced by the Intermec PW 50.
With the Bluetooth equipped PW40, mobile workers have the ability to begin printing while the 700 is away from the workboard. No longer needing to go back to a truck to or walk down an aisle to begin printing a ticket saves the driver valuable time. They can begin printing from up to 30 feet (10m) away. A vehicle charger option ensures an uninterrupted day's work in the field. With a patented sleep mode for battery conservation, the PW40 automatically activates itself when it senses data input. The PW40's rugged one-piece solution allows the user the convenience of a joined device, with a hand strap. Additionally, the user can charge both the printer and mobile computer with one charge source. The Intermec PW40 is fully compatible with the Intermec 6808, 681, 682 and 782 line of printers and is backed by a one year warranty.
PW40 Options
Part # DescriptionAvailabilityPriceOrder
PW40B10000 PW40 Workboard Printer (Portable, 4 inch Print width with CR) Check Availability Call for Details
PW40B0B140 PW40 Workboard Printer (Portable, 4 inch Print width, Bluetooth and) Check Availability Call for Details
PW40B00000 Printer, Portable, 4" Check Availability Call for Details
PW40A10000 Direct thermal, 203 dpi, 2 ips, 4" width, serial interface and card reader Check Availability Call for Details
PW40A0B140 Direct thermal, 203 dpi, 2 ips, 4" width, serial and Bluetooth interfaces Check Availability Call for Details
PW40A00000 Direct thermal, 203 dpi, 2 ips, 4" width, serial interface Check Availability Call for Details

Intermec PW40 Details

Physical Characteristics

Without Card Reader
Length: 21cm (8.25”)
Height: 6.7cm (2.62”)
Width: 35.25cm (13.9”)
Weight Empty: .95kg (2.11 lbs.)
With batteries: 1.13kg (2.51 lbs.)
With batteries and paper: 1.39kg (3.07 lbs.)

With Card Reader
Length: 21cm (8.25”)
Height: 8.57cm (3.38”)
Width: 35.25cm (13.9”)
Weight Empty: 1kg (2.21 lbs.)
With batteries: 1.18kg (2.62 lbs.)
With batteries and paper: 1.43kg (3.16 lbs.)

Standard Features
Direct thermal line printer able to print characters, graphics and bar codes.

Power
Supply: Two internal batteries; user replaceable
Battery Type: Lithium Ion 1.8 amp/hr, 7.2v, 2200mAH each
Battery Life: Print duration per charge is over 9144cm (3600”)
AC Adapter/Recharging: Three hours to quick charge or nine hours to full charge, using a 12V vehicle charger with adapter or standard AC wall charger with power adapter.

Hardware
Interfaces: RS-232 serial

Print Specifications
Print Resolution: 203 dots per inch (dpi)
Print Width: 11.2cm (4.4”)
Print Speed: 5.1cm (2”) per second

Characters/Fonts
Three resident fonts and at least four additional standard downloaded fonts supplied. Other fonts can be purchased.

Warranty
One year warranty.

Environment
Operating Temperature: -20° to 50° C (-4° to 122° F)
Operating Temperature with Card Reader: -10° to 50° C (14° to 122° F)
Drop Survival: Withstands multiple 122cm (4’) drops to concrete

Regulatory Approvals
FCC Title 47, Part 15, Subpart B, Class B; EN 55022 Class B; EN 50082-1

The Intermec PW40 is also known as the Intermec Technologies PW40 .
