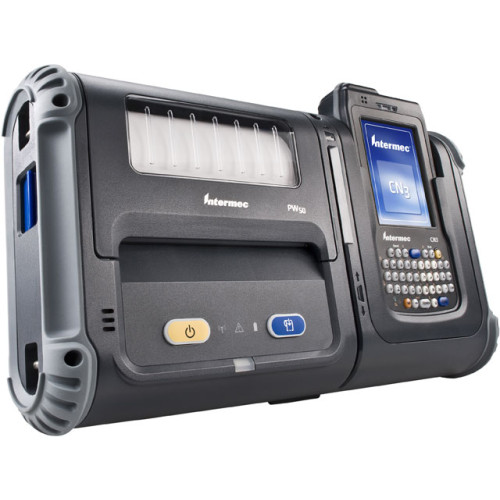

Intermec PW 50 Portable Printer

Designed specifically for use with Intermec CN3, CN3e, and CK61 mobile computers, the Intermec PW 50 four-inch mobile workboard printer provides a convenient, integrated solution for DSD and field service applications. With its integrated DEX communications, fast print speed, Bluetooth connectivity, and optional integrated smart card and magnetic stripe readers, the PW 50 provides everything the mobile worker needs to process transactions quickly and easily.

Print Method ?

Interface Options

Maximum Print Width ?

Print Resolution ?

Printer Type ?

Print Speed ?

  • 4 (2)
PW 50 Options
Part # DescriptionAvailabilityPriceOrder
PW50A050101 PW50, A, Bluetooth, DEX, CN70/70E, ESC-P, MSR/Smart card reader Ships in 24-48 Hours $982.14
Retail $1475
Save 33%

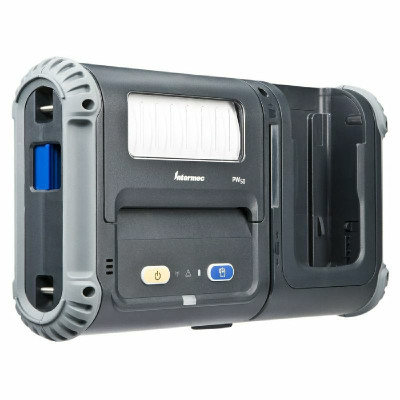

PW50A050102 PW50, A, Bluetooth, DEX, CN70/70E, ESC-P, NO MSR/Smart card reader Ships Today $832.34
Retail $1250
Save 33%

Intermec PW 50 Details

Environment

2

Operating Temperature:
-20° C to 50° C (-4° F to 122° F)
Storage Temperature:
-30° C to 70° C (-22° F to 158° F)
Humidity:
10 to 90% (non-condensing)
Electrostatic Discharge:
Contact Discharge: +/-8kV
Air Discharge: +/-15kV
Drop Survival:
Survives 1.2 m (4 ft) drops to concrete
Charging Temperature:
0° C to 40° C (32° F to 104° F)
Sealing:
IP20

3

Physical Characteristics

4

Width:
310 mm (12.2 in)
Height:
180 mm (7.0 in)
Weight:
1688 g (59.5 oz) with battery
Depth:
80 mm (3.2 in)

5

Power

6

Input:
12V +/- 5%
Battery Type/Supply:
Rechargeable 14.8V Li-Ion, 2200mAh (4 cells); 32.56 watt hours; Battery must be ordered separately.
Recharging Time:
6 hours maximum
AC Adapter:
50 watts

7

Print Specifications

8

Resolution:
203 DPI (8 dots/mm)
Print Speed:
4 IPS (100 mm/s)
Max Print Width:
Maximum Print Width 108 mm (4.25 in)

The Intermec PW 50 is also known as the Intermec Technologies PW 50 .
