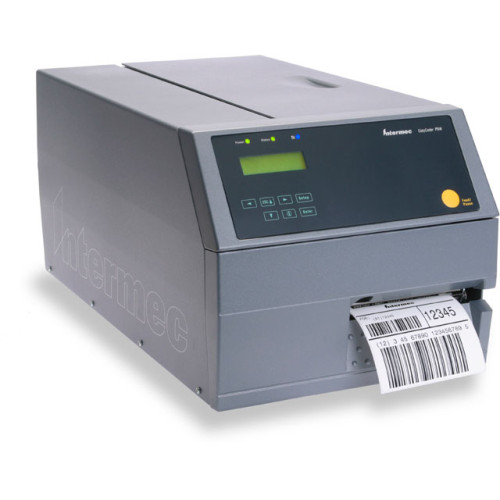

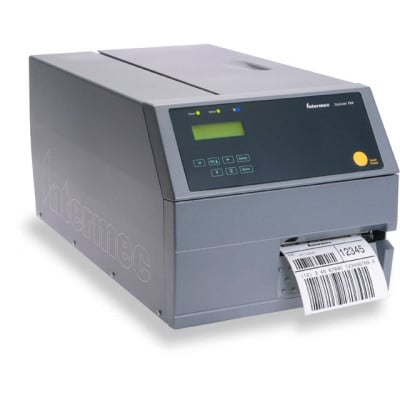

Photo of Intermec PX4i RFID
Intermec logo

Intermec PX4i RFID RFID Printer

A member of the smartest barcode printer family on the market, the PX4i is flexible and programmable, enabling customers to optimize their printing operations, streamline deployment, and achieve quick return on investment. Built to meet the needs of round-the-clock, mission-critical applications, the rugged PX4i delivers advanced connectivity and network protocols, ensuring peace-of-mind today and a reliable, scalable solution for the long haul. The PX4i RFID Printer is part of Intermec's complete line of smart, strong and secure industrial printers.

Interface

Maximum Print Width ?

Frequency Range ?

Print Resolution ?

PX4i RFID Options
Part # DescriptionAvailabilityPriceOrder
PX4C010500000020 EasyCoder PX4i RFID, Thermal transfer, Universal Firmware, 16M/32M, RFID 869 MHz, 203 dpi Ships in 24-48 Hours $3,155.29
Retail $4790
Save 34%
PX4C011400000020 EasyCoder PX4i RFID, Thermal transfer, Universal Firmware, 16M/32M, UHF RFID 915 MHz, 203 dpi Ships in 24-48 Hours $3,155.29
Retail $4790
Save 34%
PX4C013700005120 PX4i RFID, PX4C TT NONW RFID 32+16 LTS+S Ships Today $3,726.99
Retail $5260
Save 29%

Intermec PX4i RFID Details

Interfaces

Standard:
• Ethernet 10/100 Mbps
• RS-232, up to 115.2 kB/s
• Fingerprint/Direct Protocol: XON/XOFF, ENQ/ACK, DTR, RTS/CTS
• IPL: XON/XOFF, Intermec Std. Protocol
• USB 2.0

Optional:
• Parallel IEEE 1284
• Industrial Interface (8 digital in/out, 4 analog relays, 1 RS232/422/485 port)
• Dual Serial ports RS-232, RS-422, RS-485 and 20mA Current Loop, Applicator Interface

Wireless:
• IEEE 802.11 b/g
• Wi-Fi Certified, Cisco® Compatible(CCX) version 3 Certified
• WEP, WPA, WPA2, 802.11x (EAP- TTLS, LEAP, PEAP, FAST), 802.11i
• Multiple industrial antenna options for maximized coverage

Supported Protocols:
TCP/IP-suite (TCP, UDP, ICMP, IGMP, etc.), LPR/LPD, FTP, BOOTP, DHCP, HTTP, SNMPv3, SMTP.SNMP-MIB II supported (over UDP/IP), private enterprise MIB included. Supports IPv4 and IPv6

Memory

Standard:
16MB Flash memory, 32MB SDRAM, 1 Compact Flash slot
Options:
1GB CompactFlash memory, multi-GB USB memory device (FAT16/FAT32 USB drivers supported)

Physical Characteristics

Length:
482 mm (19.0 in)
Height:
238 mm (9.4 in)
Width:
275 mm ( 10.8 in)
Weight:
12.85 kg (28.4 lbs)

Print Specifications

Max Width:
112 mm (4.4 in) - DT
110 mm (4.3 in) - TT
Thickness:
2.4 to 10 mil
Style:
Roll-fed, continuous or fanfold labels, tags or tickets; also available with RFID
Label Roll Max Diameter:
213 mm (8.38 in)
Label Roll Core:
38-76 mm (1.5-3.0 in)
Media Type:
Thermally sensitive media
Resolution:
8 dots/mm (203 dpi)
11.8 dots/mm (300 dpi)
16 dots/mm (406 dpi)
Print Speed:
100 - 300 mm/s (4 - 12 ips) for 203/300dpi
100 – 250 mm/s (4 – 10 ips) for 406 dpi
Max Length:
4095 mm (161 in) at 203 dpi
2775 mm (109 in) at 300 dpi
1016 mm (40 in) at 406 dpi
Max Label Width:
120 mm (4.72 in)

Supported Bar Code Symbologies

1-Dimensional:
All major 1D symbologies are supported.
2-Dimensional:
All major 2D symbologies are supported.

The Intermec PX4i RFID is also known as the Intermec Technologies PX4i RFID .
