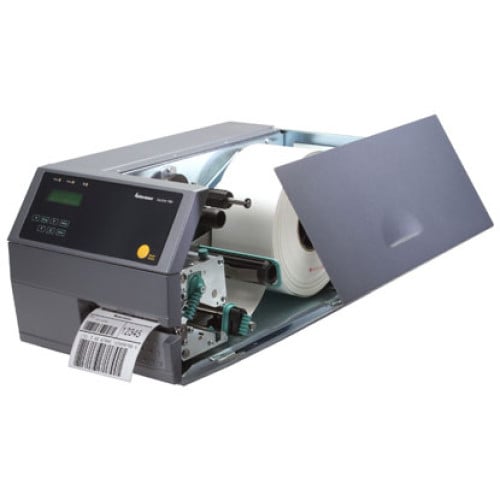

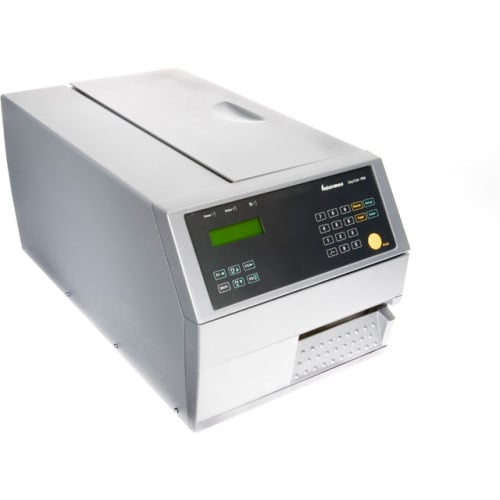

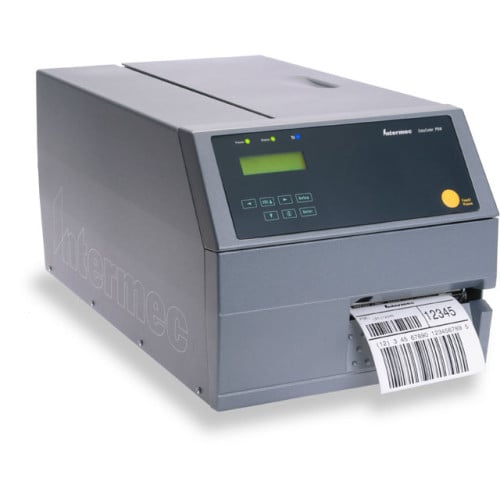

The EasyCoder PX Series printers are rugged, metal, high-performance printers designed to excel in demanding 24/7-duty applications. The PX4i features a maximum print width of 4 inches and either 203 or 300 dpi resolution printheads. The open, modular design ensures the printer is easy to adapt, maintain and service. The PX4i printer prints instantly from first to last label at up to 12 ips-ideal for on demand and compliance labeling applications with variable data requiring immediate results. The combination of powerful, individually controlled micro-step motors, generously dimensioned power supply and new sophisticated thermal management printhead ensures high-quality labels each and every time. Includes Intermec LabelShop START barcode label design software.
Application Direct Thermal (DT) and Thermal Transfer (TT) printing of adhesive labels, tickets and tags.
Models EasyCoder PX4i
EasyCoder PX6i
Physical Characteristics LxHxW: 482 x 238 x 275 mm (19.0 x 9.4 x 10.8 in) Weight: 12.85 kg (28.4 lbs)
Print Specifications Max. Print Width: 112 (DT)/110 (TT) mm (4.4/4.3 in) Max. Length with extended memory: 4095 mm (161 in) at 203 dpi
2775 mm (109 in) at 300 dpi
Print Speed 100 - 300 mm/s (4 - 12 ips) variable
Print Direction Prints smooth text, any size bar codes and graphics in all four orthogonal directions.
Label/Ticket/Tag Max. Width: 120 mm (4.72 in) Min. Width: 50.8 mm (2.0 in) Thickness: 60 to 250µm (2.4 to 10 mil) Style: Roll-fed, die-cut, continuous or fanfold labels, tags or tickets Label Roll max diameter: 213 mm (8.38 in) Label Roll Core: 38-76 mm (1.5-3.0 in) Media Type: Thermally sensitive media
Ribbon Roll Ribbon roll max diameter: 80 mm (3.15 in) corresponding up to 600 m (23 600 in) in length Ribbon Roll Core: 25 mm (1.0 in) Ribbon Type: Wax, wax/resin, resin
Interfaces Standard:
EasyLAN 10/100BaseT internal Ethernet
RS-232, up to 115.2 kB/s
USB 2.0
Wand interface for EasySet System
Optional:
EasyLAN Wireless internal Ethernet
Optional interface card adapters:
Parallel IEEE 1284
Industrial Interface* (8 digital in/out, 4 analog relays, 1 RS232/422/485 port)
Dual Serial ports RS-232, RS-422, RS-485 and 20mA Current Loop*
Network Interface Options: EasyLAN integrated Ethernet: RJ-45 connector for 10BaseT or 100baseTX EasyLAN Wireless:
Fully integrated IEEE 802.11b/g
WEP 128 bit, 802.1x/WPA/LEAP/PEAP
Multiple industrial antenna options for maximized coverage
