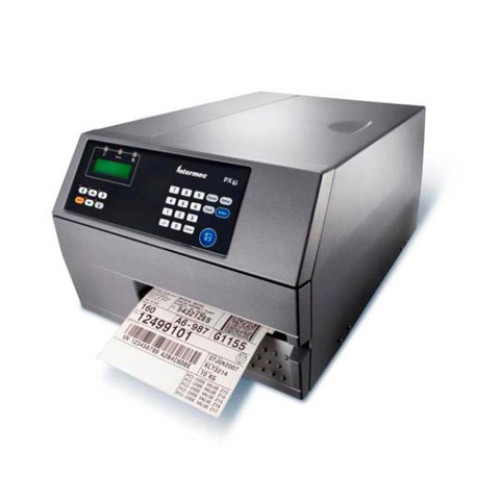

Intermec PX6i Printer

Designed for easy integration into manufacturing environments, the PX6i printer can be mounted in virtually any position. The versatile form factor facilitates the addition of add-ons such as an automatic label applicator. Up to seven wired and wireless connectivity interfaces can be used simultaneously eliminating connectivity restrictions and supporting additional devices. The PX6i printer can operate as stand alone devices executing user-defined programs thereby eliminating the need for a PC. The PX6i can operate production line machinery including scanners, scales and other printers and conveyors as well as access information directly from the network host, is fully programmable and is able to change with the application as needed. Ships with full-featured version of LabelShop START label design software.
Questions?
1-888-875-7170
We respond to every email

Print Speed ?

  • 9 (13)

Interface Options

Maximum Print Width ?

Printer Type ?

Print Method ?

Print Resolution ?

Included Features

PX6i Options
Part # DescriptionAvailabilityPriceOrder
PX6C010000000020 PX6i, Thermal transfer, Universal Firmware, 16M/32M, 203 dpi Ships Free Today $2,142.99
Retail $3195
Save 32%
PX6C010000000030 PX6i, Thermal transfer, Universal Firmware, 16M/32M, 300 dpi Ships Free Today $2,490.39
Retail $3695
Save 32%
PX6C010000001020 PX6i, Thermal transfer, Universal Firmware, 16M/32M, Self Strip, LTS, 203 dpi Ships Free Today $2,332.00
Retail $3460
Save 32%
PX6C010000001030 PX6i, Thermal transfer, Universal Firmware, 16M/32M, Self Strip, LTS, 300 dpi Ships Free Today $2,669.00
Retail $3960
Save 32%
PX6C010000001120 PX6i, Thermal transfer, Universal Firmware, 16M/32M, Self Strip, LTS, Real-time clock, 203 dpi
Ships Free in 24-48 Hours
$2,382.55
Retail $3535
Save 32%
PX6C010000001130 PX6i, Thermal transfer, Universal Firmware, 16M/32M, Self Strip, LTS, Real-time clock, 300 dpi Ships Free Today $2,706.40
Retail $4035
Save 32%
PX6C011000000030 PX6i, Thermal transfer, Universal Firmware, 16M/32M, Parallel, 300 dpi
Ships Free in 24-48 Hours
$2,591.49
Retail $3845
Save 32%
PX6C011000000020 PX6i, Thermal transfer, Universal Firmware, 16M/32M, Parallel, 203 dpi Ships Free Today $2,254.49
Retail $3345
Save 32%
PX6C020000000020 PX6i, Thermal transfer, Universal Firmware, 16M/32M, 802.11b/g, 203 dpi Ships Free Today $2,564.52
Retail $3805
Save 32%
PX6C020000001120 PX6i, Thermal transfer, Universal Firmware, 16M/32M, 802.11b/g, Self Strip, LTS, Real-time clock, 203 dpi
Ships Free in 24-48 Hours
$2,692.59
Retail $3995
Save 32%
PX6C021000001020 PX6i, Thermal transfer, Universal Firmware, 16M/32M, 802.11b/g, Parallel, Self Strip, LTS, 203 dpi
Ships Free in 24-48 Hours
$2,844.23
Retail $4220
Save 32%
PX6C010000003030 PX6i, Thermal transfer, Universal firmware, 16M/32M, Cutter, 300 dpi
Ships Free in 24-48 Hours
$3,093.60
Retail $4590
Save 32%
PX6C010000003020 EasyCoder PX6i, Thermal transfer Printer, Ethernet Interface, 32Mb Dram, 16Mb Flash, Rotating Unwind, Cutter, 203 dpi Ships Free Today $2,723.40
Retail $4090
Save 33%
PX6B941000301020 PX6i, Printer, IPL, WLAN FCC, Parallel, 16M/4M, SS/LTS, Thermal transfer, 203 dpi See Replacement Call for Details
PX6B940000300020 PX6i, PTR, PX6I, IPL, WL, 16+4, SP, TT, 203 See Replacement Call for Details
PX6B930000300020 PX6i, Printer: PX6I, IPL, WRLSS ETSI, 16M/ 4M, TT 203 dpi See Replacement Call for Details
PX6B914300300020 PX6i, PTR, PX6I, IPL, WIRED, RFID, 915,16+4, TT, 203 See Replacement Call for Details
PX6B911000300020 PX6i, Printer: PX6I, IPL, Ethernet, PARALLEL, 16M/4M, TT 203 dpi See Replacement Call for Details
PX6B910000301020 PX6i, Printer: PX6I, IPL, Ethernet, 16M/4M SELF-STRIP, TT 203 dpi See Replacement Call for Details
PX6B910000300020 PX6i, Thermal transfer printer, 6.59" print width, 9"/sec speed, 203 dpi, 16MB RAM, 4MB Flash, US power cord, IPL See Replacement Call for Details
PX6B830000301120 PX6i, Printer: PX6I, FGPT, WRLSS ETSI, 16M/ 4M, SELF-STRIP, RTC, TT 203 dpi See Replacement Call for Details
PX6B815300300020 PX6i, PTR, PX6i, FP, WIRED, RFID, 869,16+4, TT, 203 See Replacement Call for Details
PX6B811000300030 PX6i, Printer: PX6I, FGPT, Ethernet, PARALLEL, 16M/4M, TT 300 DPI See Replacement Call for Details
PX6B810000303030 PX6i, Printer: PX6I, FGPT, Ethernet, 16M/4M CUTTER, TT 300 DPI See Replacement Call for Details
PX6B810000301130 PX6i, Printer: PX6I, FGPT, Ethernet, 16M/4M SELF-STRIP, RTC, TT 300 DPI See Replacement Call for Details
PX6B810000301120 PX6i, Printer: PX6I, FGPT, Ethernet, 16M/4M SELF-STRIP, RTC, TT 203 dpi See Replacement Call for Details
PX6B810000301030 PX6i, Printer: PX6I, FGPT, Ethernet, 16M/4M SELF-STRIP, TT 300 DPI See Replacement Call for Details
PX6B810000301020 PX6i, Thermal transfer printer, 6.59" print width, 9"/sec speed, 203 dpi, 16MB RAM, 4MB Flash, US power cord, Fingerprint, Ethernet interface See Replacement Call for Details
PX6B810000300030 PX6i, Printer: PX6I, FGPT, Ethernet, 16M/4M TT 300 DPI See Replacement Call for Details
PX6B810000300020 PX6i, Thermal transfer printer, 6.59" print width, 9"/sec speed, 203 dpi, 16MB RAM, 4MB Flash, US power cord, Fingerprint, Ethernet interface. See Replacement Call for Details
PX6A040000300020 PX6i, Thermal transfer, 203 dpi, IPL Firmware, EasyLAN Wireless 802.11b/g (FCC), US Power supply See Replacement Call for Details
PX6A011000300020 PX6i, Thermal transfer, 203 dpi, IPL Firmware, EasyLAN Ethernet, Parallel Interface, US Power supply See Replacement Call for Details
PX6A010000300020 PX6i, Thermal transfer, 203 dpi, IPL Firmware, EasyLAN Ethernet, US Power supply See Replacement Call for Details
PX6B811000300130 PX6i, Printer: PX6I, FGPT, Ethernet PARALLEL, 16M/4M, RTC, TT 300 DPI Check Availability Call for Details
PX6B411000321020 PX6i, EasyCoder P6Xi Thermal transfer (US Power cord, Fingerprint Firmware, EasyLAN Ethernet Interface, Parallel Interface, No I/O Option 2, 16MB RAM, 4MB Flash, Fan-Fold Kit, Paper Rewind Self Strip plus LTS, No Option 2 and TT 203 dpi) Check Availability Call for Details
PX6B411000300030 PX6i, EasyCoder P6Xi Thermal transfer (US Power cord, Fingerprint Firmware, EasyLAN Ethernet Interface, Parallel Interface, No I/O Option 2, 16MB RAM, 4MB Flash, Rotating Unwinding Media Hanger, No Option 1, No Option 2 and TT 300 dpi) Check Availability Call for Details
PX6B411000300020 PX6i, Thermal transfer, 203 dpi, 16MB RAM, 4MB Flash, US Power cord, Fingerprint Firmware, EasyLAN Ethernet Interface, Parallel Interface, No I/O Option 2, Rotating Unwinding Media Hanger Check Availability Call for Details
PX6B040000300030 PX6i, Cord, IPL Firmware, EasyLAN Ethernet Interface, Parallel Interface, No I/O Option 2, 16MB RAM, 4MB Flash, 4.4 inch Print width, 6 ips Print speed, RS-232C High Speed and Cutter, 300 dpi Check Availability Call for Details
PX6B040000300020 PX6i, EasyCoder P6Xi Thermal transfer (US Power cord, IPL Firmware, EasyLAN Wireless Interface 802.11 b-g-FCC, No I/O Option 1, No I/O Option 2, 16MB RAM, 4MB Flash, Rotating Unwinding Media Hanger, No Option 1, No Option 2 and TT 203 dpi) Check Availability Call for Details
PX6B011000300020 PX6i, EasyCoder P6Xi Thermal transfer (US Power cord, IPL Firmware, EasyLAN Ethernet Interface, Parallel Interface, No I/O Option 2, 16MB RAM, 4MB Flash, Rotating Unwinding Media Hanger, No Option 1, No Option 2 and TT 203 dpi) Check Availability Call for Details
PX6B010000300020 PX6i, EasyCoder P6Xi Thermal transfer (US Power cord, IPL Firmware, EasyLAN Ethernet Interface, No I/O Option 1, No I/O Option 2, 16MB RAM, 4MB Flash, Rotating Unwinding Media Hanger, No Option 1, No Option 2 and TT 203 dpi) Check Availability Call for Details
PX6A440000300030 PX6i, EasyCoder P6Xi Thermal transfer (US Power cord, Fingerprint Firmware, EasyLAN Wireless Interface 802.11b/g-FCC, No I/O Option 1, No I/O Option 2, 16MB RAM, 4MB Flash, Rotating Unwinding Media Hanger, No Option 1, No Option 2 and TT 300 dpi) Check Availability Call for Details
PX6A411000321030 PX6i, Thermal transfer, US Power cord, Fingerprint Firmware, EasyLAN Ethernet Interface, Parallel Interface, No I/O Option 2, 16MB RAM, 4MB Flash, Fan-Fold Kit, Paper Rewind plus LTS, No Option 2 and TT 300 dpi Check Availability Call for Details
PX6A411000301120 PX6i, EasyCoder P6Xi Thermal transfer (US Power cord, Fingerprint Firmware, EasyLAN Ethernet Interface, Parallel Interface, No I/O Option 2, 16MB RAM, 4MB Flash, Rotating Unwinding Media Hanger, Paper Rewind plus LTS, Real-time clock and TT 203 dpi) Check Availability Call for Details
PX6A411000300030 PX6i, EasyCoder P6Xi Thermal transfer (US Power cord, Fingerprint Firmware, EasyLAN Ethernet Interface, Parallel Interface, No I/O Option 2, 16MB RAM, 4MB Flash, Rotating Unwinding Media Hanger, No Option 1, No Option 2 and TT 300 dpi) Check Availability Call for Details
PX6A410000500030 PX6i, EasyCoder P6Xi Thermal transfer (US Power cord, Fingerprint Firmware, EasyLAN Ethernet Interface, No I/O Option 1, No I/O Option 2, 16MB RAM, 16MB Flash, Rotating Unwinding Media Hanger, No Option 1, No Option 2 and TT 300 dpi) Check Availability Call for Details
PX6A410000301220 PX6i, EasyCoder P6Xi Thermal transfer (US Power cord, Fingerprint Firmware, EasyLAN Ethernet Interface, No I/O Option 1, No I/O Option 2, 16MB RAM, 4MB Flash, Rotating Unwinding Media Hanger, Paper Rewind plus LTS, ZSim and TT 203 dpi) Check Availability Call for Details
PX6A410000300030 PX6i, EasyCoder P6Xi Thermal transfer (US Power cord, Fingerprint Firmware, EasyLAN Ethernet Interface, No I/O Option 1, No I/O Option 2, 16MB RAM, 4MB Flash, Rotating Unwinding Media Hanger, No Option 1, No Option 2 and TT 300 dpi) Check Availability Call for Details
PX6A410000300020 PX6i, EasyCoder P6Xi Thermal transfer (US Power cord, Fingerprint Firmware, EasyLAN Ethernet Interface, No I/O Option 1, No I/O Option 2, 16MB RAM, 4MB Flash, Rotating Unwinding Media Hanger, No Option 1, No Option 2 and TT 203 dpi) Check Availability Call for Details
PX6A041000300020 PX6i, EasyCoder P6Xi Thermal transfer (US Power cord, IPL Firmware, EasyLAN Wireless Interface 802.11b/g-FCC, Parallel Interface, No I/O Option 2, 16MB RAM, 4MB Flash, Rotating Unwinding Media Hanger, No Option 1, No Option 2 and TT 203 dpi) Check Availability Call for Details
PX6A040000300030 PX6i, EasyCoder P6Xi Thermal transfer (US Power cord, IPL Firmware, EasyLAN Wireless Interface 802.11b/g, No I/O Option 2, 16MB RAM, 4MB Flash, No Option 1, No Option 2 and TT 300 dpi) Check Availability Call for Details
PX6A011000300030 PX6i, EasyCoder P6Xi Thermal transfer (US Power cord, IPL Firmware, EasyLAN Ethernet Interface, Parallel Interface, No I/O Option 2, 16MB RAM, 4MB Flash, Rotating Unwinding Media Hanger, No Option 1, No Option 2 and TT 300 dpi) Check Availability Call for Details
PX6A010000500030 PX6i, EasyCoder P6Xi Thermal transfer (US Power cord, IPL Firmware, EasyLAN Ethernet Interface, No I/O Option 1, No I/O Option 2, 16MB RAM, 16MB Flash, Rotating Unwinding Media Hanger, No Option 1, No Option 2 and TT 300 dpi) Check Availability Call for Details
PX6A010000303030 PX6i, EasyCoder P6Xi Thermal transfer (US Power cord, IPL Firmware, EasyLAN Ethernet Interface, No I/O Option 1, No I/O Option 2, 16MB RAM, 4MB Flash, Rotating Unwinding Media Hanger, Cutter, No Option 2 and TT 300 dpi) Check Availability Call for Details
PX6A010000301030 PX6i, EasyCoder P6Xi Thermal transfer (US Power cord, IPL Firmware, EasyLAN Ethernet Interface, No I/O Option 1, No I/O Option 2, 16MB RAM, 4MB Flash, Rotating Unwinding Media Hanger, Paper Rewind-Self Strip plus LTS, No Option 2 and TT 300 dpi) Check Availability Call for Details
PX6A010000300030 PX6i, Thermal transfer, US Power cord, IPL Firmware, EasyLAN Ethernet Interface, No I/O Option 1, No I/O Option 2, 16MB RAM, 4MB Flash, Rotating Unwinding Media Hanger, No Option 1, No Option 2 and TT 300 dpi Check Availability Call for Details

Intermec PX6i Details

Application
Direct Thermal (DT) and Thermal Transfer (TT) printing of adhesive labels, tickets and tags.

Physical Characteristics
LxHxW: 482 x 238 x 335 mm (19.0 x 9.4 x 13.2 in)
Weight: 14.80 kg (32.6 lbs)

Print Specifications
Max. Print Width:
 167.4 (6.59 in)
Max. Length with extended memory:
4095 mm (161 in) at 203 dpi
2775 mm (109 in) at 300 dpi

Print Speed
100 - 225 mm/s (4 - 9 ips) variable

Print Direction
Prints smooth text, any size bar codes and graphics in all four orthogonal directions.

Print Resolution
8 dots/mm (203 dpi), 11.8 dots/mm* (300 dpi)

Label/Ticket/Tag
Max. Width: 170 mm (6.69 in)
Min. Width: 76.2 mm (3.0 in)
Thickness: 60 to 250µm (2.4 to 10 mil)
Style: Roll-fed, die-cut, continuous or fanfold labels, tags or tickets
Label Roll max diameter: 213 mm (8.38 in)
Label Roll Core: 38-76 mm (1.5-3.0 in)
Media Type: Thermally sensitive media

Ribbon Roll
Ribbon roll max diameter: 80 mm (3.15 in) corresponding up to 600 m (23 600 in) in length
Ribbon Roll Core: 25 mm (1.0 in)
Ribbon Type: Wax, wax/resin, resin

Interfaces
Standard:

  • EasyLAN 10/100BaseT internal Ethernet
  • RS-232, up to 115.2 kB/s
  • USB 2.0
  • Wand interface for EasySet System

Optional:

  • EasyLAN Wireless internal Ethernet

Optional interface card adapters:

  • Parallel IEEE 1284
  • Industrial Interface* (8 digital in/out, 4 analog relays, 1 RS232/422/485 port)
  • Dual Serial ports RS-232, RS-422, RS-485 and 20mA Current Loop*

Network Interface Options:
EasyLAN integrated Ethernet: RJ-45 connector for 10BaseT or 100baseTX
EasyLAN Wireless:

  • Fully integrated IEEE 802.11b/g
  • WEP 128 bit, 802.1x/WPA/LEAP/PEAP
  • Multiple industrial antenna options for maximized coverage

Supported Protocols: TCP/IP-suite (TCP, UDP, ICMP, IGMP, etc.), LPR/LPD, FTP, BOOTP, DHCP, HTTP, SNMP, SMTP.
SNMP-MIB II supported (over UDP/IP), private enterprise MIB included

Software
Available printer command languages:

  • IPL
  • Fingerprint/Direct Protocol

Applications/Drivers (comes on Printer Companion CD) including:

  • InterDriver Windows printer driver
  • Intermec LabelShop START label design and print package
  • Intermec Printer Network Manager for administration of networked printers
  • PrintSet for printer setup/configuration

Optional software for application development:

  • Fingerprint ApplicationBuilder (IFAB)
  • Intermec Printer Application Server
  • ERPLabel for SAP R/3.

Bar code Symbologies
DP 1-dimensional Codes:
 Codabar, Code 11, Code 39, Code 93, MSI(modified Plessey), Code 128, Code 128 Subset A-C, DUN-14/16, UPC/EAN Codes (EAN 8, EAN 13, UPC Version A, UPC Version E), EAN-128, EAN-128 Subset A-C*, Industrial 2 of 5, Interleaved 2 of 5, Interleaved 2 of 5 A, Matrix 2 of 5*, Planet, Postnet, Straight 2 of 5*, UCC-128 Serial Shipping Container Code, RSS, HIBC Code 39 (IPL only), HIBC Code 128 (IPL only), JIS-ITF (IPL only)
2-dimensional Codes: Code 16K, Code 49, Data Matrix, MaxiCode, PDF417, QR Code, MicroPDF417, EAN.UCC Composite

Standards Supported
UPC/EAN Shipping Container; UCC/EAN 128 Serial Shipping Container; MH10.8 Shipping Label; AIAG (shipping parts label); LOGMARS; POSTNET; HIBCC; ISBT 128; GM1724; UPS shipping label; Global Transport label

Characters Sets
Fingerprint/DP Firmware: 15 scalable fonts including 12 UNICODE (1 WGL4), 1 symbol, 1 OCR-A, 1 OCR-B. Font cache for maximum performance. Non-Latin fonts are available as options.
IPL Firmware: 13 scalable fonts + 20 bitmap fonts.

Graphics
Supports PCX file format

Memory
Standard:
4MB Flash memory
8MB SDRAM
1 Compact Flash slot
Maximum:
Flash memory: Up to 16 MB (optional) 1GB CompactFlash memory
SDRAM:
Up to 16MB

Protocol
Fingerprint/Direct Protocol: XON/XOFF, ENQ/ACK, DTR, RTS/CTS
IPL: XON/XOFF, Intermec Standard Protocol

Display
Back-lit LCD for 2x16 characters and 3 LED indicator lamps

Keypad Control Panel

  • Advanced keypad (Fingerprint/DP)
  • Alpha-numeric keypad (FP/DP option)
  • Simplified keypad (IPL)

Power Supply
115/230VAC auto-switch w/PFC
Voltage Range: 90-265 VAC
Frequency Range: 45-65 Hz

Operating Environment
Temperature: +5° to +40°C (+40° to +104°F)
Humidity: 10-90% RH non-condensing

Regulatory Approvals
CE (EN55022 Class A), FCC Class A, UL, CSA, C-Tick

The Intermec PX6i is also known as the Intermec Technologies PX6i .
