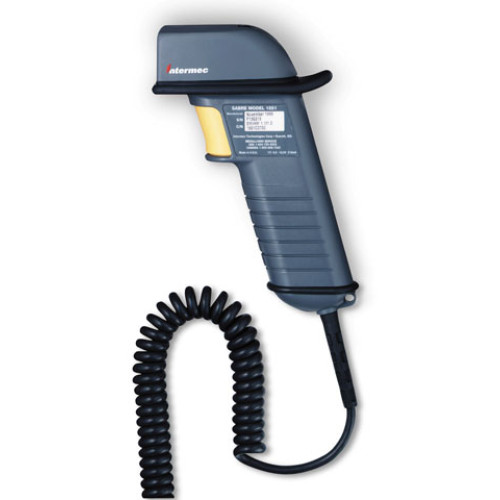

Photo of Intermec Sabre 1551
Intermec logo

Intermec Sabre 1551 Scanner

The Intermec Sabre 1551 has been discontinued. No direct replacement is available.
Please contact us for a suitable substitute.

The Sabre 1551 is the first Sabre handheld scanner capable of consistently reading both linear and PDF417 codes at high speed. The Sabre 1551 is an impressive combination of comfort, durability and performance. Boasting plenty of rubber and a protected window, the Sabre 1551 can withstand repeated drops of up to 183cm (6feet), wind and rain, off road vehicle vibration levels and below freezing temperatures. Standard range for the Sabre 1551 includes reading as small as 5mil code or 100 mil reflective code. Choose the advanced long range model to read distances up to 8.1m (27 ft.). The high speed laser scanner engine reads linear and PDF417 bar codes for increased flexibility and productivity. All units ship with product documentation.
Sabre 1551 Options
Part # DescriptionAvailabilityPriceOrder
1551E0808 Sabre 1551, Linear/PDF417, Scanner. Requires Cable. Sold Separate. Check Availability Call for Details
1551E0605 Sabre 1551, Integrated Decode Scanner, High Density. No Cable. Check Availability Call for Details
1551E0604 Sabre 1551, E Integrated Decode Laser Scanner (High Visibility Laser with RS-232 Interface and Trigger - No Cable) Check Availability Call for Details
1551E0601 Sabre 1551, Advanced long range. Order cables & power supply/AC adapter (for RS-232 operation) separately. See accessories. Check Availability Call for Details
1551E0600 Sabre 1551, Scanner only, standard range. Order cables & power supply/AC adapter (for RS-232 operation) separately. See accessories. Check Availability Call for Details
072122 Sabre 1551, E Scanner Kit (Standard Range, RS-232 DCE and 6.5 ft. Cable) Check Availability Call for Details
070720 Sabre 1551, E Integrated Decode Laser Scanner Kit (Standard Range, RS-232 DCE Cable, International - Requires Power supply) Check Availability Call for Details
070719 Sabre 1551, E Scanner Kit (Handheld 1551E Laser Scanner, with RS-232 Cable, 9-Pin D-Sub, PDF417-Capable and US Power supply) Check Availability Call for Details
070303 Sabre 1551, Wand emulation kit, includes straight cable, 10-pin for Intermec devices and US power supply. Check Availability Call for Details
070302 Sabre 1551, E Scanner Kit (Advanced Long Range Handheld 1551E Laser Scanner, with RS-232 Cable, 9-Pin D-Sub and US Power supply) Check Availability Call for Details
070301 Sabre 1551, RS-232 serial kit. Includes serial cable, 9-Pin, D-Sub and US Power supply Check Availability Call for Details
070300 Sabre 1551, Keyboard wedge kit, includes PS/2 cable. Check Availability Call for Details

Intermec Sabre 1551 Details

<<$mfg->name>> Sabre 1551 Scanner

The Intermec 1551E is the first Sabre handheld scanner capable of consistently reading both linear and PDF417 codes at high speed. The 1551E is an impressive combination of comfort, durability and performance. And of course the “E” stands for easy setup with Intermec’s EasySet® configuration software free of charge.

<<$mfg->name>> Sabre 1551 Features

  • Durable design for harsh environments
  • Built in decoder eliminates separate decoder device
  • Choice of scan engine optics
  • EasySet configuration software included
  • Optional scanner and cable kits available

Rugged, Tested Design Boasting plenty of rubber and a protected window, the 1551E can withstand repeated drops of up to 183cm (6 feet), wind and rain, off road vehicle vibration levels and below freezing temperatures.

Superior Performance Standard range for the 1551E includes reading as small as 5mil code or 100 mil reflective code. Choose the advanced long range model to read distances up to 8.1m (27ft). The high speed laser scanner engine reads linear and PDF417 bar codes for increased flexibility and productivity.

Point and Click Configuration You won’t waste time getting started. Just point and click to print a bar code that configures you scanner with a single scan. Using EasySet setup software, any member of your organization configure the 1551E.

Physical Description Sabre 1550C Undecoded Laser Scanner Sabre 1551E Decoded Laser Scanner

Product Contents Scanner, Easy Set®, Operator’s Guide and Getting Started Guide

<<$mfg->name>> Sabre 1551 Warranty 3 years

Physical Characteristics Length: 8.9 cm (3.5") Height: 17.8 cm (7.0") Width: 5.6 cm (2.5") Weight: 185 g (6.5 oz.) without cable

Power 1550: -125 mA nominal at 5V 1551: -215 mA nominal at 5V

Terminal Connectivity - 1551 only RS-232c, IBM PC XT/AT or PS/2 30/50-80, DEC VT510/520, DEC VT220/320/420. Apple Mac ADB, RS232 TTL, IBM 3151/ 347X/317X/318X/319X, IBM Thinkpad, Esprit 200/400, Wyse, Zenith CruisePAD, laptops, and Intermec terminals.

Bar code Symbologies 1550: Undecoded device (dependent on decoder for scanning symbologies) 1551: UPC (E&A), EAN, Code 11, Code 39, Code 128, UCC EAN 128, ISBN, ISBT,

Scanning Performance Scan rate: 36±3 scans per second High Density Laser: 2 mil Standard Range Laser: 5 mil Long Range Laser: 10 mil

Scan Range Dependent on scan engine Standard Range Laser Engine*: 5 mil/0.13 mm 8.1-14.5 cm 3.2-5.7" 7.5 mil/0.19 mm 7.4-22.6 cm 2.9-8.9" 10 mil/0.25 mm 6.1-34.0 cm 2.4-13.4" 15 mil/0.38 mm 6.1-46.7 cm 2.4-18.4" 20 mil/0.5 mm 8.9-62.2 cm 3.5-24.5" 40 mil/1.0 mm 11.4-99.1 cm 4.5-39" 55 mil/1.4 mm 17.8-124.5 cm 7-44" 55 mil/ 1.8 mm 91-242 cm 36-84" retro-reflective 100 mil/ 2.54 mm 112-226 cm 44-89" retro-reflective 100% UPC/EAN 2.5-38 cm 1-15"

Long Range Laser Engine*: 7.5 mil/0.19 mm 27-43 cm 11-17" 10 mil/ 0.25 mm 27.9-98.3 cm 11-19" 15 mil/0.38 mm 20.3-83.8 cm 8-33" 20 mil/0.5 mm 20.3-96.5 cm 8-38" 40 mil/1.0 mm 22.9-190.5 cm 9-75" 55 mil/1.4 mm 22.9-203 cm 9-80" 70 mil/1.8mm 104-150 cm 75-161" retro-reflective 100 mil/2.54 mm 210.8-530.9 cm 83-209" retro-reflective 100% UPC/EAN 27-70 cm 11-28"

Advanced Long Range Laser Engine*: 10 mil/0.25 mm 54-80 cm 21-32" 15 mil/0.38 mm 51-118 cm 20-47" 20 mil/0.5 mm 38-154 cm 15-61" 40 mil/1.0 mm 41-250 cm 16-99" 55 mil/1.4 mm 56-303 cm 21-120" 70 mil/1.8 mm 274-546 cm 108-216" retro-reflective 100 mil/2.54 mm 243-698 cm 96-276" retro-reflective 100% UPC/EAN 54-106 cm 21-42"

High Visibility Laser Engine*: 5 mil/0.13 mm 7.4-11.2 cm 2.9-4.4" 7.5 mil/0.19 mm 4.8-18.8 cm 1.9-7.4" 10 mil/0.25 mm 4.6-22.9 cm 1.8-9" 15 mil/0.38 mm 3.8-35.6 cm 1.5-14" 20 mil/0.5 mm 5.1-48.3 cm 2-19" 40 mil/1.0 mm 10.2-78.7 cm 4-31" 55 mil/1.4 mm 16.5-88.9 cm 6.5-35" 100% UPC/EAN 2.5-40 cm 1-16"

High Density Laser Engine*: 2 mil/0.05 mm 1.8-3.9 cm .7-1.8" 5 mil/0.13 mm 3.8-11.9cm 1.5-4.7" 7.5 mil/0.19 mm 2.5-15cm 1-6" 10 mil/0.25 mm 2.5-17 cm 1-7" 15 mil/0.38 mm 2.5-22 cm 1-9" 100% UPC/EAN 2.5-17 cm 1-7" *Depth of field measured using Code 39, ANSI Grade A

Print Contrast Standard range, high visibility: minimum 25% reflectance difference High density, long range: minimum 40% reflectance difference Skew: ±55° from normal Pitch: ±65° from normalOptical Parameters Visible laser diode 670nm±10nm (standard range, high density) 650nm±10nm (Long range, high visibility, ALR) ALR: International Class 3A USA/Canada Class II All others: International Class 2Ambient Light Immunity Immune to direct exposure from office level lighting and sunlight

Environmental Operating Temperature: -30° to 50°C (-22° to 122°F) Storage Temperature: -40° to 70°C (-40° to 168°F) Humidity: Non-condensing (0 -95% RH) Drop Test: Twenty-six 1.8m (6') drops to concrete Sealed against rain and dust (IEC 529 rated at IP54) SAE off-road vehicle spec for vibration (Class 3)

<<$mfg->name>> Sabre 1551 Accessories Scanner Pouch, Holster and Belt, Vehicle Mount Holder, Wall Mount Holder and Desk Stand Holder

Regulatory Approvals UL listed UL 1950 and C22.2 no. 950; UL listed UL 1604 (Div. 2, Class I, II & III hazardous locations); TÜV Rheinland GS, EN 60950 & EN 60825-1; FCC Part 15; Canada, ICES-003, Class B; EN 55022/CISPR 22, Class B; EN 50082-1; Compliant with all European Directives, CE marked.

The Intermec Sabre 1551 is also known as the Intermec Technologies Sabre 1551 .
