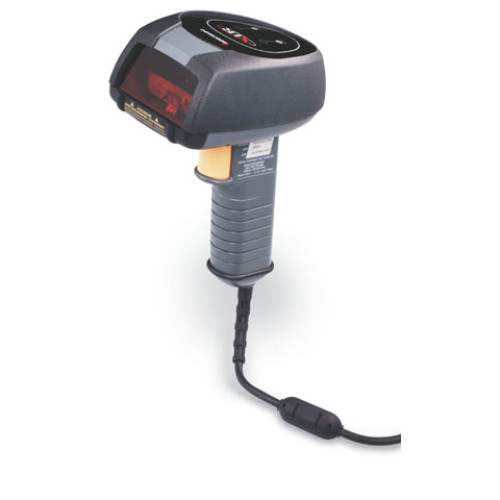

Photo of Intermec Sabre 1553
Intermec logo

Intermec Sabre 1553 Scanner

The Intermec Sabre 1553 scanner has far-reaching impact on business performance. With its dual-diode laser engine, you are able to scan as close as 4 inches (10.2 cm) to as far as 35 feet (10.7 meters) from the bar code with a single scanner. No longer do you need to buy multiple scanners to handle varied scanning distances, so the Sabre 1553 costs less. The Sabre 1553 is built to last. Whether subject to the intense forktruck vibration in the manufacturing plant, warehouse and distribution center, or the extreme environmental conditions of field service (rain, hot, cold, dust) the Sabre line of scanners has proven that it can excel in harsh environments. All units ship with product documentation.
Sabre 1553 Options
Part # DescriptionAvailabilityPriceOrder
1553E0603 Sabre 1553, 1553, extra long range scanner. Order cables & power supply/AC adapter (for RS-232 operation) separately. See accessories. Check Availability Call for Details

Intermec Sabre 1553 Details

<<$mfg->name>> Sabre 1553

  • Durable Sabre design withstands the harshest environments.
  • Three-year warranty guarantees customer satisfaction.
  • Free EasySet configuration utility makes initial scanner set up a snap!
  • Dual-diode laser engine allows close in and extra long distance scanning.
  • Aiming beam feature for accurate scanning.

Intermec reaches new heights with the Sabre 1553 Extra Long-Range (XLR) scanner. Able to scan a 100 mil (2.54mm) bar code from as far away as 35 feet, the 1553 XLR offers more than any other long range Intermec product.

Intermec’s 1553 XLR scanner has far reaching performance. Its dual-diode laser engine lets you scan as close as 4 inches (10.2 cm.) to as far as 35 feet (10.7 meters) from a bar code using a single scanner. No need to buy multiple scanners to handle a variety of scanning distances.

The Sabre 1553 is built to last. The Sabre line of scanners has proven that it excels in harsh environments, whether it’s intense forktruck vibration in the manufacturing plant or distribution center, or extreme field conditions like rain, heat, cold, and dust. With the 1553 XLR, we’ve kept the rugged Sabre design that set the standard for durability, performance, and comfort. The 1553 XLR boasts a rubber overmold, protected window, cable strain relief, and additional features that reduce shock and protect electrical components from rough treatment and tough conditions.

Setting up the 1553 XLR scanner is a snap with EasySet – a software utility for quick and easy configuration of Intermec scanners. No need to page through thick manuals to turn on application features. With a point and click you can print a bar code that configures your scanner with a single scan. Even better, every 1553 XLR comes with EasySet configuration software free of charge.

If you need to scan the tough to reach spots, reach for Sabre 1553 XLR—your long range scanning solution.

Physical Description The Sabre 1553 Extra Long Range Industrial Scanner

Product Contents Scanner, EasySet and Quick Reference Card

Warranty 3 years

Physical Characteristics Length: 12.7 cm (5.0”) Height: 17.3 cm (6.8”) Width: 8.4 cm (3.3”) Weight: 294 g (10.4 oz.)

<<$mfg->name>> Sabre 1553 Power Requirements Voltage: +4.5 to 12V Maximum Operating Current: 215mA at 5.0V

Terminal Connectivity RS-232, USB, Keyboard Wedge, Wand Emulation, Laser Emulation depending on application and cable. Consult the EasySet “terminal selector” for terminal support and cable availability information.

Bar code Symbologies UPC (E&A), EAN, Code 11, Code 39, Code 128, UCC EAN 128, ISBN, ISBT, Interleaved 2 of 5, Codabar, CXode 93, MSI, Plessy, Telepen, ISBT 128

Scanning Performance Scan rate: 35+5 scans/sec Minimum X dimension: 10 mil Depth of field: 10cm to 10.6m (4 to 35 ft) Scan Angles: 48% PCR: Minimum 40% reflective difference Skew: + 45 degrees Pitch: + 45 degrees Optical Parameter: Visible laser doide: 670 nm

Scan Range 10 mil / 0.25 mm: 10.2 cm to 33 cm 4” to 13” 15 mil / 0.38 mm: 10.2 cm to 1.4m 4” to 4.5’ 20 mil / 0.5 mm: 10.2 cm to 1.7 m 4” to 5.5’ 40 mil / 1.0 mm: 30.5 cm to 3.4m 12” to 11’ 55 mil / 1.4 mm: .9 m to 4.6 m 3’ to 15’ 70 mil / 1.8 mm retro-reflective: 2.0 m to 7.6 m 6.5’ to 25’ 100 mil / 2.54 mm retro-reflective: 2.1 m 10.7 m 7.5’ to 35’ *Near and far range values reflect typical reading distances experienced by most users on Code 39.

<<$mfg->name>> Sabre 1553 Accessories Vehicle mount holder, wall mount, holder, holster and belt.

Environmental Operating Temperature: -30 C to –50 C (-22 F to 122 F) Storage Temperature: -40 C to –70 C (-40 F to 158 F ) Humidity: 0-95% non condensing Shock and Vibration: Class 3 SAE off-road vehicle specification Vibration Rain Dust Resistance: IP54 Drop Survival: 26 drops from 6 feet to Concrete

Regulatory Approvals ESD: Conforms to 15KV rating per IEC 801-2 EMI Emissions: Conforms to Class B FCC Part 15, CISPR Publication 22 Class B, EN55022 Class B Approvals: UL & cUL listed, TUV Rheinland GS licensed, CE marked

<<$mfg->name>> Sabre 1553 reserves the right to make changes without notice to any products herein for any reason at any time, including but not limited to improving the reliability, form, fit, function, or design. Please contact Intermec for current price list and availability.

The Intermec Sabre 1553 is also known as the Intermec Technologies Sabre 1553 .
