Keypad Handheld Computer(Antares)

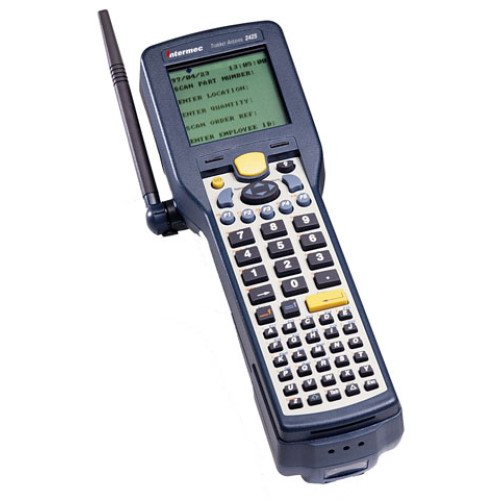

Expand your coverage area with the Intermec 2425 wireless data collection terminal. A durable wireless version of the 2420, the 2425 is a cost-effective and reliable solution for collecting data in manufacturing, distribution and warehouse environments. For an Intrinsically Safe version, see the Intermec 2425CS, which provides protection in areas containing hazardous gas and vapors.
FEATURES
THE COVERAGE YOU NEED
With its integrated wireless module, the 2425 is a full-featured wireless terminal suited to handle wide coverage areas necessary for inventory control, asset management, item tracking, maintenance management and other industrial data collection applications.
BUILT FOR USE IN THE REAL WORLD
Designed for industrial strength operations, the 2425 is durable enough to withstand 5-foot drops to concrete. However, that ruggedness is not compromised when it comes to comfort and ease of use for extended periods of time.
APPLICATION FLEXIBILITY
Applications can be developed using industry standard language tools; no proprietary languages to learn and support. The task is even quicker with EZBuilder™, a rapid application development and prototyping tool that requires no programming language expertise at all. Also, the flexible architecture of the 2425 includes integration options for terminal emulation, client/server, or browser-based applications.
FULL SHIFT POWER
Data can be collected with the 2425 for a normal shift and even beyond without a battery change with its Lithium Ion batteries. Recharge them gradually while the terminal is in the communications dock or quickly in a convenient multi-pack charger. Data will be saved for days in the event the main battery is temporarily or accidentally removed.
OPTIONAL EQUIPMENT
Optional equipment for the 2425 include 2 or 4 MB memory expansion option, pistol grip handle, and serial communications dock.
PHYSICAL CHARACTERISTICS: Length: 26.9 cm (10.6) Height: 7.1 cm (2.8) at scanner,5.7 cm (2.3)at grip Width: 8.2 cm (3.2) at scanner,6.4 cm (2.5)at grip Weight: 766 g (27 oz.) including battery
STANDARD FEATURES
POWER: Battery Type: Lithium ion battery pack Memory Backup: Rechargeable NiCad
HARDWARE: Standard: 1MB RAM, battery backed. 2MB non-volatile flash. Optional: Plus 2MB non-volatile flash. (4MB total) Display: CGA compatible backlit LCD displaying 16 lines of 20 characters per line (160 x 128 dot matrix) plus graphic status icons. Keyboard: Elastomeric 56-key with full alphanumeric set, function keys and oversized numeric. Options for IBM 5250,IBM 3270 and VT/ANSI layouts
SOFTWARE: Development Environments: Microsoft® C/C++ with programmer’s Software Kit (PSK) or EZBuilder™ Rapid Application Development software tool Protocol: TCP/IP or UPP plus
CONNECTIVITY: Serial Data Support Optical Serial Interface RS232-C up to 38.4 baud XMODEM,YMODEM for data transfer Supports Configurable Serial Protocol and XON/OFF
Host Support-Direct Connect Host Environment: IBM AS/400, S/390, Digital, HP, UNIX with Telnet Services Connectivity: Ethernet, 2.4 GHz wireless, serial Communications: TCP/IP, XMODEM/YMODEM Terminal Emulation: TN 5250, TN 3270, VT/ANSI
Host Support via DCS 300 Server Host Environment: IBM AS/400, S/390, Digital, HP, UNIX Connectivity: 10/100 Mbps Ethernet, Token Ring, Twinax, Coax, SDLC Communications: TCP/IP, SNA, TCP/IP socket pass through Terminal Emulation: IBM SNA 5250, 3270, ANSI/VT 100, 220, 320
WIRED DATA COMMUNICATION Serial Ports: RS-232, RS-232/422/485 Intermec Crossbar
BarcodE SYMBOLOGIES: Code 39,2 of 5,Interleaved 2 of 5,Codabar, UPC/EAN, Code 128,Code 11,Code 93, Plessey, MSI, PDF 417.
CHARACTERS/FONTS: Display support and keypad overlay options for U.S. and W. European language characters. INTEGRATED RF MODULE OPTIONS: Frequency: 2.4 GHz frequency band, actual frequencies in use varies by country Type: Frequency Hopping Spread Spectrum Data Rate: 1.6 Mbps, .8 Mbps fallback Range*: From 1500+ ft. (450+ m) to 500 ft. (150m) depending on environment
IEEE 802.11b High Rate – WiFi Certified Type: Direct Sequence Spread Spectrum Data Rates: 11/5.5/2/1 Mbps with Auto fallback for increased range Range* at 1 Mbps: From 1750 ft. (533m) to 165 ft. (50m), depending on environment. Range* at 11 Mbps: From 525 ft. (160m) to 80 ft. (24m) depending on environment. Security: Wired Equivalent Privacy (WEP) – 40 or 128-bit encryption *Unlimited range with roaming
ACCESSORIES: Handstrap, holster, belt clip, pistol grip handle Vehicle mount holder Battery charger, battery pack Serial adapter and communications dock User manuals
ENVIRONMENT: Operating Temperature: -20 ° to 50 °C (-4 ° to 122 °F) Storage Temperature: -20 ° to 60 °C (-4 ° to 140 °F) for less than two weeks Humidity: Non-condensing (0 to 95%RH) Shock and Vibration Protected. Rain and Dust Resistant. Drop Survival: Warranted for 5-foot drop to concrete, meets MIL-STD 28800E
REGULATORY APPROVALS: UL Listed, UL 1950 and C22.2 No. 950, TUV Rheinland GS,EN 60950 and EN 60825-1, FCC Part 15, Canada, RSS210 and ICES-300 Class B,EN 55022 /CISPR 22, Class B,ETS 300 328, ETS 300 826, Compliant with all European directives, CE marked
RESTRICTIONS ON USE: Some approvals and features may vary by country and may change without notice. Please check with your local Intermec sales office for further information.
PRODUCT AVAILABILITY: X US/Canada X Europe X Asia/Australia/Pacific Rim X Mexico/Latin America
