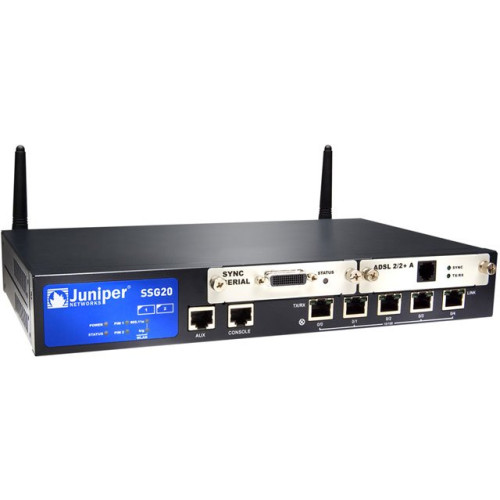

Juniper SSG20 Data Networking
Part #: SSG-20-SB-W-US | SKU: JUN61103

The Juniper SSG20 Secure Services Gateways are purpose-built security appliances that deliver a perfect blend of performance, security, routing and LAN/WAN connectivity for small branch offices, fixed telecommuters and small standalone business deployments. Traffic flowing in and out of the branch office or business is protected from worms, spyware, trojans, and malware by a complete set of Unified Threat Management security features that include stateful firewall, IPsec VPN, intrusion prevention system (IPS), antivirus (includes antispyware, anti-adware, antiphishing), antispam and Web filtering.

Juniper SSG20 Data Networking

Part Details: SSG20, Security Services Gateway 20 (with 2 Port Mini-PIM Slots, Wireless)

Additional Information

Manufacturer Juniper Networks
Model Name SSG20

Technical Information

  • Encryption Standard:
    • DES
    • AES (256-bit)
    • 3DES (168-bit)
  • Features: PAT
  • Firewall Protection:
    • User Authentication
    • Malware Protection
    • Worm Scanning
    • Spyware Protection
    • Trojan Horse
    • Adware Protection
    • Anti-phishing
    • Network Attack Detection
    • Denial of Service (DoS)
    • Brute Force Attack Mitigation
    • Cookie Protection
    • IP Spoofing
    • Protocol Anomaly Detection
    • Stateful Signature Detection
    • Keylogger Protection
    • URL Filtering
    • Distributed Denial of Service (DDoS)
    • TCP Reassembly for Fragmented Packet Protection
    • Access Control
    • Malformed Packet Attack
  • Virtualization:
    • 4000 x Concurrent Session
    • 2800 x Concurrent Session
    • 200 x Security Policies Tenant
    • 25 x Concurrent VPN Tunnel
    • 10 x Tunnel Interface
    • 8 x Security Zone
    • 300 x Mapped IP
    • 4 x Virtual IP
    • 4000 x Concurrent Session
    • 2800 x Concurrent Session
    • 200 x Security Policies Tenant
    • 25 x Concurrent VPN Tunnel
    • 10 x Tunnel Interface
    • 8 x Security Zone
    • 300 x Mapped IP
    • 4 x Virtual IP

General Information

  • Product Type: Network Security/Firewall Appliance
  • Product Series: SSG
  • Brand Name: Juniper
  • Manufacturer: Juniper Networks, Inc
  • Product Model: SSG 20
  • Product Name: SSG 20 Security Appliance

Physical Characteristics

  • Height: 1.8"
  • Width: 11.6"
  • Depth: 7.4"
  • Form Factor: Rack-mountable
  • Weight (Approximate): 3.31 lb

Interfaces/Ports

  • Total Number of Ports: 5
  • Management Port: Yes

Power Description

  • Input Voltage:
    • 110 V AC
    • 220 V AC
  • Power Source: Power Supply

Other

  • Additional Information:
    • IPv6 Support
    • 90 Mbps Firewall performance (IMIX)
    • 30,000 Firewall Packets Per Second (64 byte)

I/O Expansions

  • Number of Total Expansion Slots: 2
  • Number of PIM Slots: 2
  • Expansion Slot Type: PIM

Network & Communication

  • Network Standard: 10/100Base-TX
  • Ethernet Technology: Ethernet

Memory

  • Standard Memory: 128 MB

Wireless Specifications

  • Wireless LAN Standard: IEEE 802.11a/b/g

Management & Protocols

  • Manageable: Yes

Warranty

  • Limited Warranty: 1 Year
