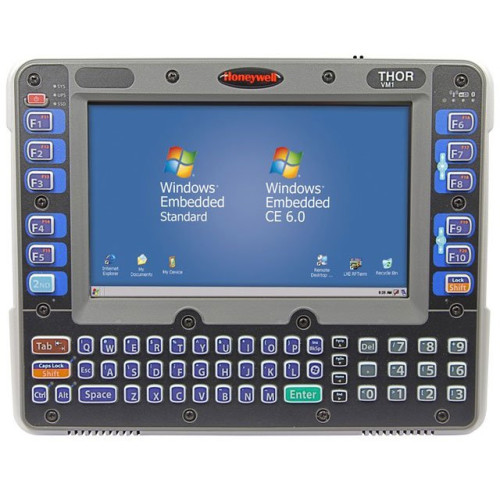

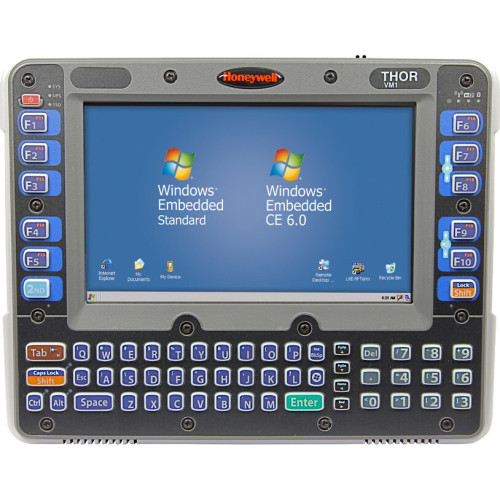

VM1C1A1A1AUS0AA - LXE Thor VM1 Fixed/Vehicle Mount Data Terminal

The Thor VM1 is LXE's newest vehicle-mount computer, and the reinvention of the category. Thor VM1 redefines the expectations of what a VMC can accomplish. Thor VM1's processing platform is dramatically superior to all other CE vehicle-mount computers in processing speed, RAM and flash. 802.11 a/b/g and Bluetooth 2.0 comes standard, and by adding WWAN w/GPS, the advantage of Thor VM1 over other VMCs becomes overwhelming. A cold storage configuration, indoor & outdoor displays, and true space diversity antennas for WiFi, contribute to a device ready for virtually any industrial environment. A field-replaceable front panel gets you back on line if the touch-screen, keyboard or defroster fail. A Quick Mount Smart Dock allows one-handed movement of units between vehicles to save cost and reduce down-time. Finally ignition control makes the computer ready for work when you are.

Part # Description Availability Price Order
VM1C1A1A1AUS0AA VM1 Thor, Wi-Fi (802.11a/b/g/n), Fixed Mount Mobile Computer, 8" Touchscreen, Indoor Display, Windows CE 6.0, LED Backlit, ANSI Keyboard, Internal Wi-FI Antenna, RF Term. Interface cables and charging cradle sold separately. Ships Free Today $2,942.70
Retail $3462
Save 15%
Information:   |  Specifications  |  LXE's Thor VM1 page  |
Accessories:   |  Accessories/Options  |  LXE Thor VM1 service contract  |

VM1C1A1A1AUS0AA Details

General Information

  • Product Type: Vehicle Mount Terminal
  • Brand Name: Honeywell
  • Manufacturer: Honeywell International, Inc
  • Product Model: VM1
  • Product Name: Thor VM1 Vehicle-Mount Computer
  • Product Line: Thor

Technical Information

  • Connectivity Technology: Wireless

Physical Characteristics

  • Height: 8.4"
  • Width: 10.6"
  • Depth: 1.7"
  • Weight (Approximate): 4.63 lb

Interfaces/Ports

  • Interfaces/Ports:
    • 1 x USB 2.0 USB
    • 1 x USB 1.1 USB
    • 2 x RS-232 Serial
    • 1 x CANbus
    • 1 x Audio
    • 4 x Antenna

Network & Communication

  • Antenna Form Factor: Internal
  • Wireless LAN Standard: IEEE 802.11a/b/g/n
  • Wireless Security:
    • 802.1X (EAP)
    • EAP-TLS
    • PEAP-MSCHAPv2
    • PEAPGTC
    • LEAP
    • EAP-FAST
    • WEP
    • WPA (TKIP)
    • WPA2 (AES)
    • 802.1X (EAP)
    • EAP-TLS
    • PEAP-MSCHAPv2
    • PEAPGTC
    • LEAP
    • EAP-FAST
    • WEP
    • WPA (TKIP)
    • WPA2 (AES)
  • Wireless Technology: Wi-Fi

Other

  • Certifications & Standards:
    • SAE-J1455
    • MIL-STD-810F
    • IP66
    • CCX
    • CE

Display & Graphics

  • Touchscreen: Yes
  • Display Screen Type: LED
  • Screen Size: 8"
  • Graphics Modes: WVGA
  • Display Resolution: 800 x 480

Environmental Conditions

  • Electrostatic Discharge (ESD):
    • +/-15 kV DC Air Discharge
    • +/-8 kV DC Direct Discharge

Processor & Chipset

  • Processor Manufacturer: Intel
  • Processor Speed: 1.60 GHz
  • Processor Type: Atom

Built-in Devices

  • Built-in Devices:
    • Speaker
    • Microphone

Warranty

  • Limited Warranty: 1 Year
Part # Description Availability Price Order
VM1376BATTERY Honeywell THOR: Replacement UPS battery Ships Free Today $133.45
Retail $157
Save 15%
VM1005BRKTKIT LXE RAM Mounts, RAM Mount Kit, Flat Clamp Base, Medium Arm, 8.5" (215 Mm), Ball For Vehicle Dock Rear Ships Free Today $151.07
Retail $206
Save 26%
VM1001VMCRADLE LXE Thor Accessories, Dock with Integral Power supply, 10 to 60 VDC. Ships Free Today $376.11
Retail $593
Save 36%
TSP-US-MC-3 Barcodes True Support Contract 3-year, True Support contract 5-year - Mobile Computers Includes Tier 1 and Tier 2 Technical Helpdesk Support 7: 30am-cst-5: 00pm-cst, RMA Triage, OEM Service Contract management, Pre/post repair inspection and image loading. $60 per year for 3 years, billed annually. Ships Free Today $60.00

The LXE VM1C1A1A1AUS0AA is also known as LXE-VM1C1A1A1AUS0AA .
