MagTek Excella STX

USB interface. Includes Check21, ID card scanner, 3 Track MSR, USB cable and US power supply.

Check Scanner

Free Shipping

Ships Today

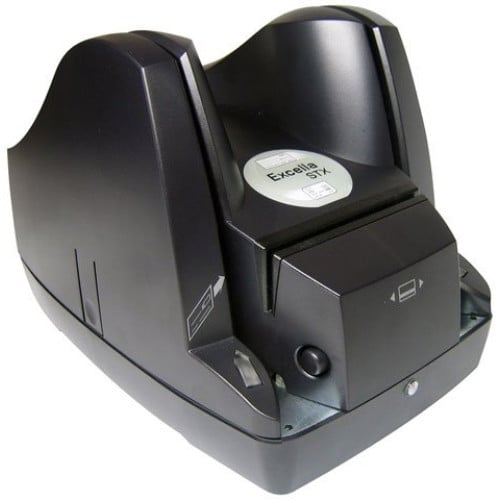

MagTek Excella STX Check Scanner

The Magtek Excella STX utilizes a single-feed check operation which allows for a compact design with feature-rich options: it prints on the front and the back the check, reads MICR data and scans both sides of the check in a single pass, creating high-quality color, grayscale or black and white images in the most common file formats used in the industry. The Excella STX also performs as a hybrid scanner by offering single-side scanning of standard ID cards (e.g. driver's licenses) with the same device with no additional accessories required. A USB interface and optional 3-track magnetic stripe reader make the Excella STX the complete check scanning solution.

Full specifications (PDF)

Manufacturer part number: 22350001

Technical Information

  • MICR Font Supported:
    • CMC-7
    • E13-B
  • Magnetic Stripe Track Configuration: Triple Track
  • Magnetic Stripe Track Number:
    • Track 1
    • Track 2
    • Track 3
  • Check Reading Speed: 60 in/s
  • Check Scanning: Dual-sided
  • Check Size: 4" x 8.50"
  • Features: MSR

General Information

  • Product Type: Check Reader
  • Brand Name: MagTek
  • Manufacturer: MagTek, Inc
  • Product Name: Excella STX Check Reader
  • Product Line: Excella STX

Physical Characteristics

  • Height: 6.3"
  • Width: 6.3"
  • Color: Black
  • Length: 9.4"
  • Weight (Approximate): 4.30 lb


  • Interfaces/Ports:
    • 1 RJ-45Ethernet
    • 1 USB 2.0 USB


  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Certifications & Standards:
    • ISO 7810
    • ISO 7811
    • AAMVA
  • Additional Information: Color Image

Power Description

  • Input Voltage: 24 V DC
