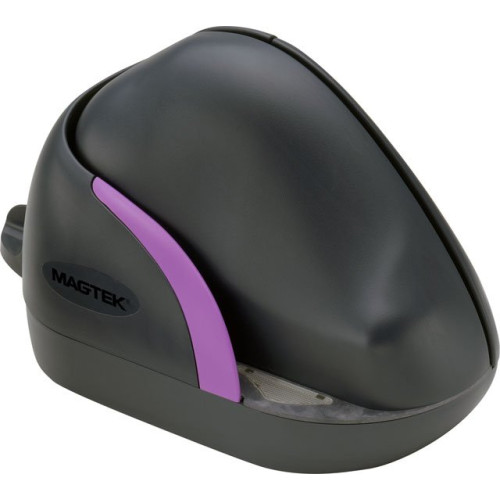

22410002 - MagTek MICRImage Check Reader MICR Check Scanner

The MICRImage Check Reader with optional Magnetic Stripe Readers meet the challenges of speed and accuracy in the most demanding environments. Daily, thousands of businesses worldwide use our check readers to speed customer transactions, reading billions of real-world checks with every conceivable MICR data format. Offering a read reliability rate of 99.7% - the best in the industry - MagTek check-reading product line assures complete confidence in data captured from checks, credit cards and driver's licenses.

Questions?
1-888-875-7170
We respond to every email
Part # Description Availability Price Order
22410002 MICRImage, RS-232 interface check reader. Order interface cable (Part# 22410302) & power supply (Part# 64300090) separately. See accessories. Ships Free Today $350.81
Information:   |  Specifications  |  MagTek's MICRImage Check Reader page  |
Accessories:   |  Accessories/Options  |

22410002 Details

General Information

  • Product Type: Check Reader
  • Brand Name: MagTek
  • Manufacturer: MagTek, Inc
  • Product Name: MICRImage Check Reader
  • Product Line: MICRImage

Technical Information

  • MICR Font Supported:
    • E13-B
    • CMC-7
  • Check Reading Speed: 10 in/s

Physical Characteristics

  • Height: 6"
  • Width: 3.9"
  • Color: Gray
  • Length: 9"
  • Weight (Approximate): 2.50 lb

Interfaces/Ports

  • Interfaces/Ports: 2 RS-232 Serial

Other

  • Certifications & Standards: ANSI X9.27
  • Additional Information:
    • Check Read Head: 1,000,000 Passes
    • Document Size: 4" x 8.5" max
    • Image Capture: 200 dpi (grayscale, black & white)
    • Image Storage: 1 MB (standard) or 8 MB
    • Power & Communication Connector: DB25 female
    • Current:
    • Idle: 300 mA
    • Operating: 1.5 A max

Environmental Conditions

  • Humidity:
    • 10% to 90% Non-condensing Operating
    • 0% to 100% Non-condensing Storage
  • Temperature:
    • 32°F (0°C) to 122°F (50°C) Operating
    • -22°F (-30°C) to 158°F (70°C) Storage

Reliability

  • MTBF: 125000 Hour

Power Description

  • Input Voltage: 12 V DC
Part # Description Availability Price Order
64300090 MagTek Power supply (120V) for MICRImage Ships Free Today $20.70
64300090 MagTek Power supply (120V) for MICRImage Ships Free Today $20.70
22410302 MagTek RS-232 cable for MICRImage Ships Free Today $23.80

The MagTek 22410002 is also known as Mag-Tek MAG-22410002 .
